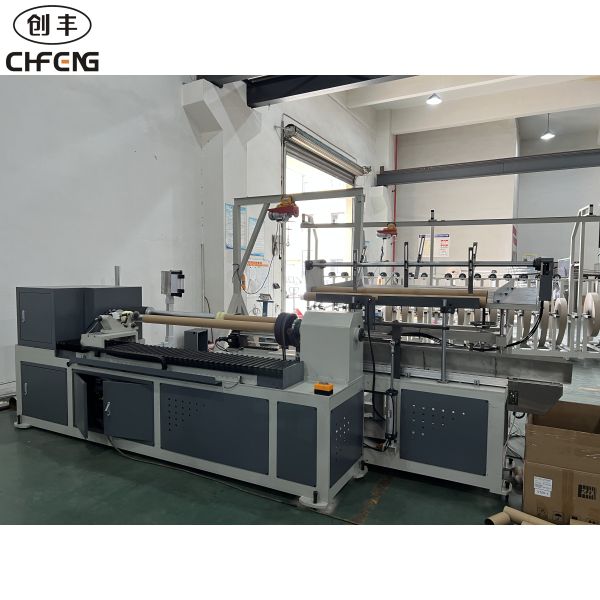

Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Specifications
Product Type :
Paper Core Machine, paper tube cutting machine
processing type :
Cutting Machine
Place of Origin :
Zhejiang, China
Brand Name :
Chuangfeng
voltage :
380V / 3 Phase / 50Hz (customizable)
power(w) :
3.0kw Wannan
dimension(l*w*h) :
L4790*W2540*H1795
warranty :
12 months
production capacity :
25m/min
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
motor
Weight (KG) :
1400
Product name :
CFQG-SK-400 Double-Shaft Automatic Paper Core Cutting Machine
Brands of main configurations :
can be appointed
Speed :
25m/min
Certification :
CE
Power Source :
380V 3- Phase 50HZ(customizable)
Model :
CFQG-SK-400
After-sales Service Provided :
yes
Machine for :
paper tube cutting
Advantage :
High-quality automation
Description
Factory Direct Sales Advanced Automatic Paper Tube Cutting Machine
Specification
Item
CFQG-SK-400 Double Shafts Paper Tube Core Cutter
Inner Diameter
50-152mm
Wall Thickness
1-20mm
Mother Tube Length
2040mm
Cutting Tube Length
5-2000mm
Cutting Blade
Single Tungsten Steel Blade
Cutting Way
Tube Rotates, knife & shafts fixed
Cutting Unit Moving Speed
25m/mn.
Cutting Tolerance
±0.15mm
Tube Fixing Way
Automatic Chuck
Tube Loading
Automatically
Tube Unloading
Automatically
Cutting Type
Pneumatic
Speed Regulation
By Inverter
Working Air Pressure
0.6Mpa
Motor
3.0kw Wannan
Inverter
Schneider
Servo Motor
Schneider
Servo Driver
Schneider
Moving Rail & Screw Rod
Shangyin
Signal Components
Omron
PLC Controller
Xinjie
Operating Panel
Touch Screen
