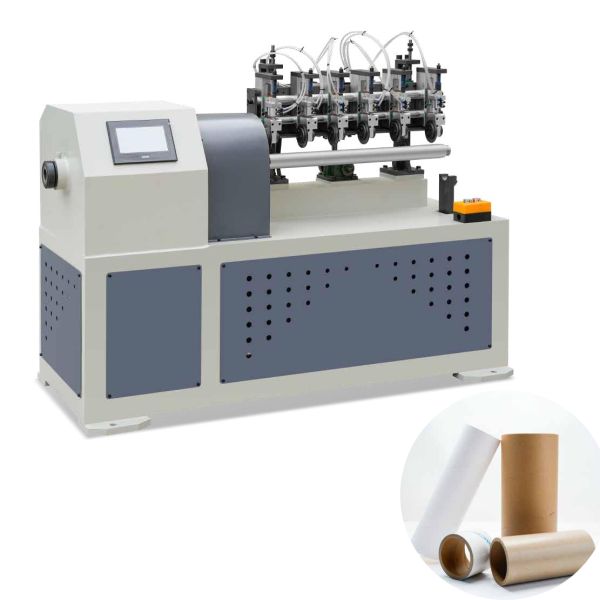

10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
Specifications
Product Type :
Paper Core Machine
processing type :
Cutting Machine
Place of Origin :
Zhejiang, China
Brand Name :
Chuangfeng
voltage :
380V / 3Phase / 50Hz
power(w) :
1.5kw
dimension(l*w*h) :
1300*700*1200mm
warranty :
12 months
production capacity :
10 cuts/min.
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
motor
Weight (KG) :
480
Product name :
Automatic Thick Paper Tube Cutting Machine
Brands of main configurations :
can be appointed
Description
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
Specification
Item
CFQG-25
Inner Diameter
10-100mm
Wall Thickness
1-4mm
Initial Tube Length
650mm
Cutting Length
40-650mm
Cutting Knife
Multi-knives (motor controlled)
Voltage
380V / 3Phase / 50Hz
Power
1.5kw
Dimension(L*W*H)
L1300*W700*H1220mm
Weight
500kgs
Certification
ce
Production Capacity
10 cuts / min. (relate to paper core size)
Electrical Components
CHNT
Mandrel Shaft
2 pcs with machine
Blade
6 pcs installed on machine; extra 6pcs with machine
Production Description
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
10 Cuts/min Paper Tube Paper Pipe Paper Core Cutter Toilet Roll Core Cardboard Core Cutting Machinery
