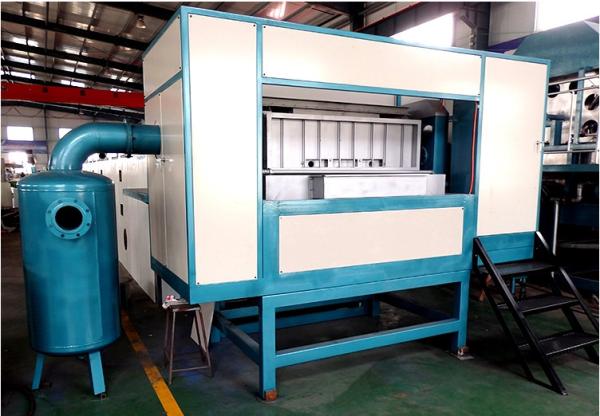

Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H
Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H
Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H
Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H
Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H
Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H
Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H
Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H
Specifications
Brand Name :
HAIYANG
Model Number :
3000pcs/hour
Certification :
CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
$19888 1set
Payment Terms :
L/C, T/T
Supply Ability :
200sets per year
Delivery Time :
15-45days
Packaging Details :
Wooden Case and Plastic Film
Name :
Egg tray making machine
Capacity :
3000pcs/hour
Power :
53.7KW
Weight :
70-80g/pcs
Condition :
New
Finished products :
Egg Tray Egg Carton
Description

Products Description

  • Pulp egg tray making machine are used to produce a range of pulp molded products including egg trays, egg boxes, fruit trays, and coffee trays.
  • The material used for molded pulp products is waste paper, corrugated paper, waste newspaper, and old magazines.
  • Pulp molding egg tray machine can be made using 4 or 8, 12 faces rotating drums and each surface can incorporate 2, 3, 4, or 5 pieces moulds as required.

All egg tray manufacturers know about the importance of buying superior quality machines that help them fulfill their customers’ demands and keep their business running well. Depending on their needs and budget, they choose between automatic, semi-automatic, egg tray making machines.

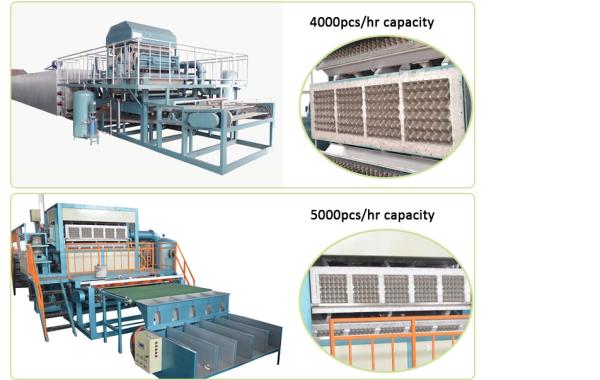

Typically, automatic egg tray machines can produce anywhere between 5500 and 7500 pieces egg trays in an hour. Semi-automatic machines can make 1000 to 5000 pieces egg trays .

Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H

Product Paramenters

Model Capacity(pcs/hour) Forming mould quantity Total power(KW) Materials consumption(kg/hour)
HY-1*3 800-1000 3 34 23.8
HY-1*4 1000-1500 4 41.2 28.4
HY-3*4 2000 12 53.7 32.57
HY-4*4 2000-2500 16 57 39.9
HY-4*8 3000-4000 32 90 63
HY-5*8 5000-6000 40 150 105
HY-6*8 6000-7000 48 153

107.

Production Line

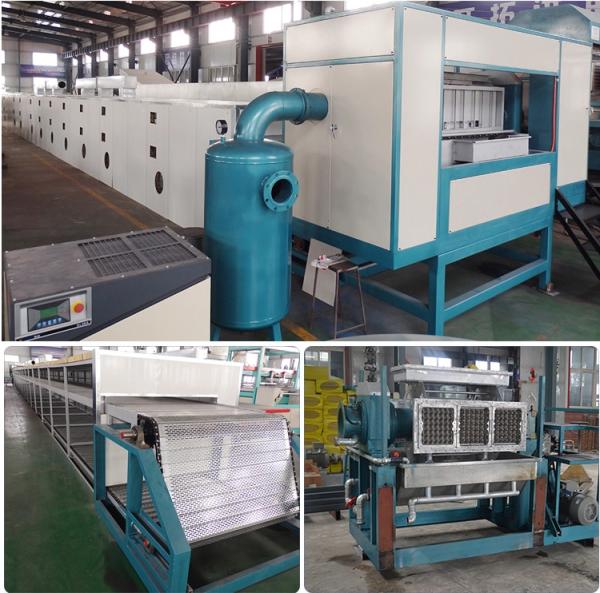

The production line includes a pulp making system, an egg tray molding system, an egg tray drying system, and an egg tray packing system

Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H


Constitution of Haiyang Egg Tray Making Machine

1. Pulping System

Usually, the pulping system includes hydraulic pulper, pulp pond beater, stirred tank, water pool, and pulp pool.

Beston designs an automatic integrated pulping system which can reduce the labor cost and the floor space of the machine, improve the pulping efficiency, and enable an easier delivery as well.

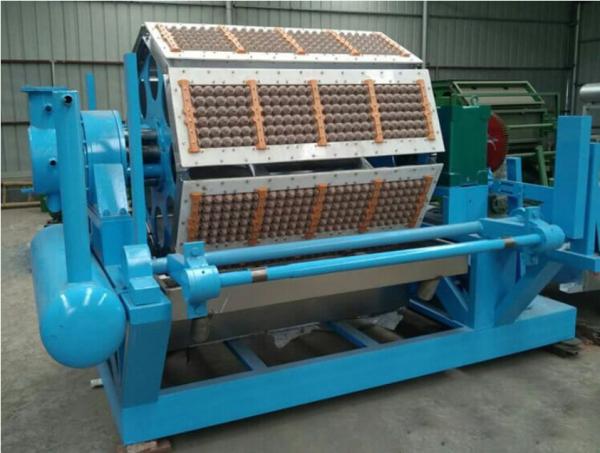

2. Forming System

The forming system consists of a vacuum pump, air compressor, water pump, and molding machine. The main part is the molding machine. It has a forming mold and a transfer mold. The standard configuration of the forming mold is plastic mold, and the customers can also choose metal (aluminum) one instead. Compared with the plastic mold, the aluminum mold is more durable but expensive. It can make egg trays with much higher quality than plastic mold.

3. Drying System

After molding, all the egg trays need to be dried at first before packing. According to the daily capacity of the pulp egg tray making machine, Beston can provide the customers with four different drying systems, i.e. natural drying in the sun, brick drying with carts, brick drying with conveying belt and metal drying.

Different drying systems have the same drying effect, at last, only the drying efficiency differs. The customers shall choose carefully according to their production scales, budget, space and climate conditions, etc. For more details of the four options, you can leave your message to us now and the professional sales consultant will respond as soon as possible.

Drying ways

1.Natural drying way suit1000-2000pcs/hour

Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H

2.Brick kiln drying suits 2000-5000pcs/hour

Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H

3.Multilayer metal drying suits 3000-7000pcs/hour

Rotary Pulp Molding Waste Paper Egg Carton Machine 3000pcs/H

Product packaging and delivery
Packaging
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipments;
1 sea transportation is from qingdao seaports or other ports.
2 the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
