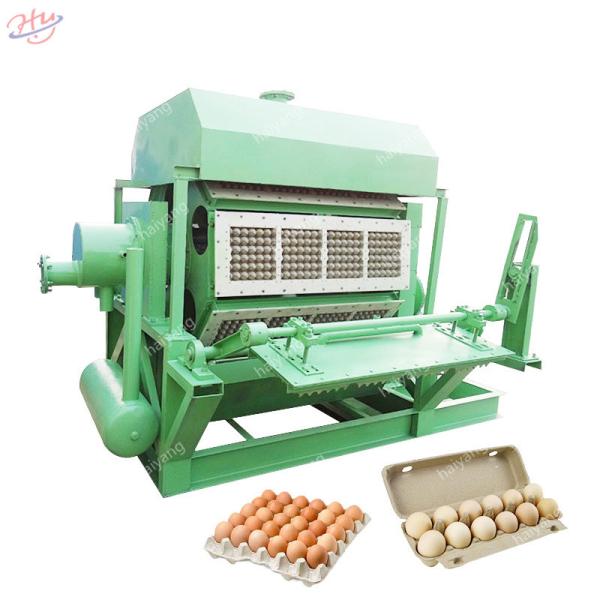

7.5kw 2500pcs/H Paper Egg Tray Making Machine
7.5kw 2500pcs/H Paper Egg Tray Making Machine
7.5kw 2500pcs/H Paper Egg Tray Making Machine
7.5kw 2500pcs/H Paper Egg Tray Making Machine
Specifications
Brand Name :
Haiyang
Model Number :
1
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 10000-50000
Payment Terms :
T/T, L/C
Delivery Time :
60 days before delivery
Packaging Details :
1. Seaworthy export packing 2. Standard export packing 3. As per customers' requirement
Product Name :
Egg tray machine
Capacity :
1000-5000pcs per hour
Raw material :
waste paper
Condition :
New
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support
Description

Paper Pulp Egg Fruit Tray Molding Machine Egg Tray Making Machine

Product description of egg tray making machine

1, Mainly producing the pulp molded products,such as egg tray ,egg box, fruit tray,coffee tray.

2, Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,

magazine.

3, Semi-automatic control, PLC+Touch screen controller.

4, Stainless steel pulp tank,the surface of platens covered with stainless steel.

5, Transferred to a flat-bed automatically

Features of egg tray making machine

1, capacity 800pcs,1000,1500,2000,2500,3000,3500,4000pcs per hour

2, use wast paper as raw materials

3, machine including making pulp unit ,moluding unit and dryer unit

4, computer control

Systems

1. Pulp Making System

Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.

2. Moulding System

Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..

3. Drying System

Bellows, Air Blower, Mesh Belt Conveyor,Multi-layor Drying System

Parameter of Egg Tray Machine(2000 pcs/h)

Pulping System

Model:SLPT-2.0

Voltage:380v/50hz

Power:7.5kw

Volume:2 cbm

Dimension:2000*1800*2000mm

Capacity:400kg/h
Forming System

Model:SLPT-2000

Voltage:220v/380v/50hz

Power:3kw

Capacity:2000pcs/h

Template size:1230*400mm

Operating speed:6 times/min

Size:1900*1000*2500mm
Drying System

Type:Multi-layer dryer

Size:10000*1800*2200mm
Hot Press Shaping System

Model:SL-8

Voltage:AC220V±10%

Power:8kw

Working pressure:8 T

Hot pressing temperature:0-180℃(Adjust)

Dimension:1000*800*2300mm

Capacity:600 pcs/h
