Waveguide-Coaxial Rotary Joint with Integrated Ethernet & Power Transmission for 13.75-14.5GHz Frequency Range and 380VAC/VDC Voltage Rating
Waveguide-Coaxial Rotary Joint with Integrated Ethernet & Power Transmission for 13.75-14.5GHz Frequency Range and 380VAC/VDC Voltage Rating
Waveguide-Coaxial Rotary Joint with Integrated Ethernet & Power Transmission for 13.75-14.5GHz Frequency Range and 380VAC/VDC Voltage Rating
Waveguide-Coaxial Rotary Joint with Integrated Ethernet & Power Transmission for 13.75-14.5GHz Frequency Range and 380VAC/VDC Voltage Rating
Waveguide-Coaxial Rotary Joint with Integrated Ethernet & Power Transmission for 13.75-14.5GHz Frequency Range and 380VAC/VDC Voltage Rating
Waveguide-Coaxial Rotary Joint with Integrated Ethernet & Power Transmission for 13.75-14.5GHz Frequency Range and 380VAC/VDC Voltage Rating
Specifications
Brand Name :
Panlink
Model Number :
PSR-T80-6P4S-RW
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
RF Channels :
2 channels
Frequency Range :
13.75-14.5GHz, DC-18GHz
Connector Types :
SMA-F
VSWR Max. :
1.6
Voltage Rating :
380VAC/VDC
Current Rating :
10A(Power), 2A(Signal)
Description

Waveguide-Coaxial Rotary Joint for Radar/SATCOM, Integrated Ethernet & Power Transmission

PSR-T80-6P4S-RW

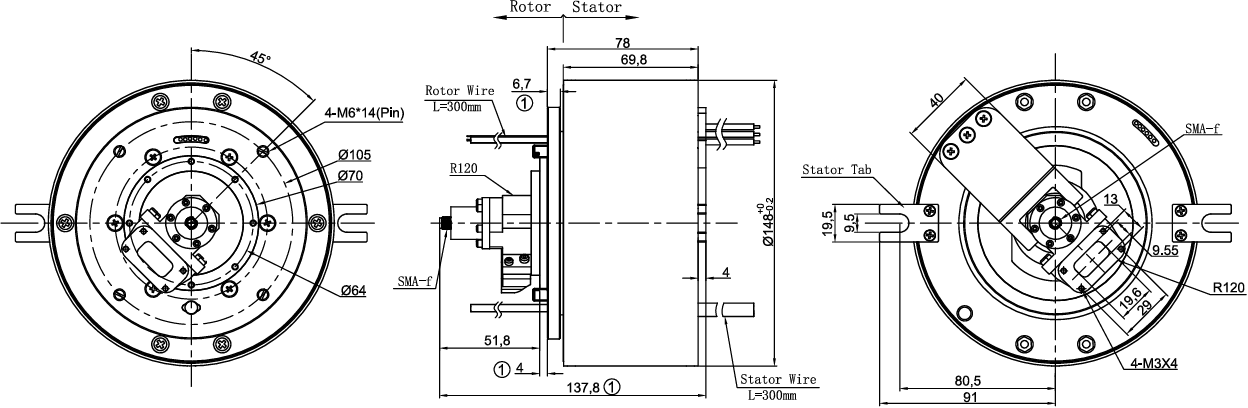

Dimensions in millimeters

Waveguide-Coaxial Rotary Joint with Integrated Ethernet & Power Transmission for 13.75-14.5GHz Frequency Range and 380VAC/VDC Voltage Rating

Specifications

Circuits 2 for RF Transmission, 1 for 100M Ethernet Transmission, 6 for Power Transmission
RF Rotary Joint Specifications
RF Channels Channel 1 Channel 2
Frequency Range 13.75-14.5GHz DC-18GHz
Connector Types SMA-F SMA-F
Insertion Loss Max.(dB) 0.3 1.0
Insertion Loss Ripple(dB) 0.1 0.1
VSWR 1.3 1.6
Isolation Min. (dB) 60 60
Average Power Max. 300W @ 1GHz 40W @ 2GHz
Electrical Specifications
Voltage Rating 380VAC/VDC
Current Rating 10A(Power), 2A(Signal)
Insulation Resistance Max 500MΩ @ 500VDC
Dielectric Noise 500VAC @ 50Hz, 60s
Electric Noise Max 20mΩ
Lead Cable Teflon Wire(Power), CAT5(Ethernet)
Mechanical Specifications
Rotating Speed 300rpm
Operating Temperature -40℉ to +176℉(-40℃ to +80℃)
Storage Temperature -49℉ to +185℉(-45℃ to +85℃)
Operating Humidity 0~95%RH
Torque 0.2N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
Shock GB/T 2423.5-2019(IEC 60068-2-27)
Vibration GB/T 2423.10-2019 (IEC 60068-2-6)
