1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss
1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss
1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss
1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss
1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss
1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss
1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss
1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss
Specifications
Brand Name :
Panlink
Model Number :
PSR-T12-4P(20A)2P(10A)16S-1RF
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
RF Channel :
1 channel
Frequency Range :
DC-3GHz
Power Channel :
22 channels
Current Rating :
2A, 10A, 20A
Description
1-channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer
PSR-T12-4P(20A)2P(10A)16S-1RF

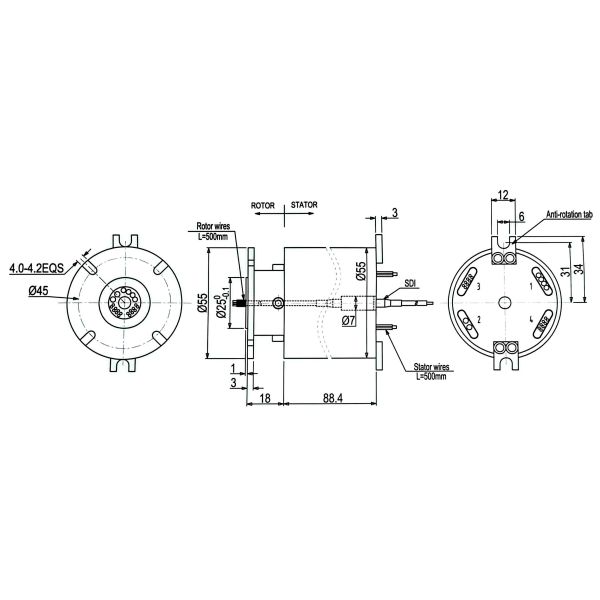

Dimensions in millimeters

1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss

Specifications:
Circuits 22 for Power Transmission, 1 for RF Transmission
RF Rotary Joint Specifications
RF Channels 1
Frequency Range DC-3GHz
Insertion Loss Max.(dB) 0.65
VSWR 1.3
Impedance 75ohm
Electrical Specifications
Voltage Rating 250VDC
Current Rating 2A, 10A, 20A
Insulation Resistance Max 500MΩ @ 500VDC
Dielectric Noise 500VAC @ 50Hz, 60s
Electric Noise Max 10mΩ
Mechanical Specifications
Working Life 50 million revolutions
Rotating Speed 250rpm
Operating Temperature -40℉ to +176℉ (-40℃ to +80℃)
Storage Temperature -49℉ to +185℉ (-45℃ to +85℃)
Operating Humidity 0~85%RH
Torque 0.2N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
