2 Channel 10A Through Bore Slip Ring with 302℉ High Temperature and IP54 Protection
2 Channel 10A Through Bore Slip Ring with 302℉ High Temperature and IP54 Protection
2 Channel 10A Through Bore Slip Ring with 302℉ High Temperature and IP54 Protection
2 Channel 10A Through Bore Slip Ring with 302℉ High Temperature and IP54 Protection
2 Channel 10A Through Bore Slip Ring with 302℉ High Temperature and IP54 Protection
2 Channel 10A Through Bore Slip Ring with 302℉ High Temperature and IP54 Protection
Specifications
Brand Name :
Panlink
Model Number :
PSR-TS-2P2S
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Current Rating :
10A
Operating Temperature :
-4℉ to +302℉ (-20℃ to +150℃)
Rotating Speed :
300rpm
Protection Degree :
IP54(higher or lower on request)
Description

2 Channel 10A Through Bore Slip Ring 302℉(150℃)

PSR-TS-2P2S

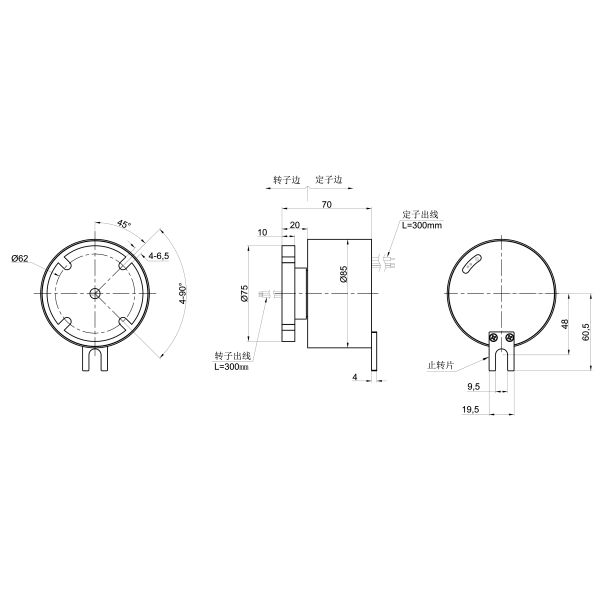

Drawing (Dimensions in Millimeters)
2 Channel 10A Through Bore Slip Ring with 302℉ High Temperature and IP54 Protection
Specification:
Channels 2 for Power Transmission
Electrical Specifications
Voltage Rating 220VAC
Current Rating 10A
Insulation Resistance Max 100MΩ @ 500VDC
Dielectric Noise 500VAC @ 50Hz, 60s
Electric Noise Max 40mΩ
Mechanical Specifications
Rotating Speed 300rpm
Operating Temperature -4℉ to +302℉ (-20℃ to +150℃)
Storage Temperature -13℉ to +302℉ (-25℃ to +150℃)
Operating Humidity 0~95%RH
Torque 1.0N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP54(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
