300rpm High Temperature Slip Ring IP54 For Power Industrial / Aerospace Industrial
300rpm High Temperature Slip Ring IP54 For Power Industrial / Aerospace Industrial
Specifications
Brand Name :
Panlink
Model Number :
PSR-HTA Series
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Working Temperature :
+80℃~+400℃
OD :
22~55mm
Lifetime :
50 million revolutions
Contact Material :
Gold-Gold
Name :
High Temperature Slip Ring
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

High Temperature Slip Ring

Panlink provides standard and custom slip ring designs to operate in high temperature environment. These designs are available in compact capsule, miniature through hole, large bore or cylindrical shapes to meet various applications’ technical and mounting need. Higher voltage, speed or pressure are possible. Unique design, critical material selection and high standard tests ensure these high temperature slip ring units’ high quality and reliability.

Feature Main Application
• Speeds up to 20,000rpm • High speed testing
• Speeds up to 12,0000rpm without the need of cooling • Aerospace & navigation testing
• Compatible with various signals and communication protocols • Tire testing
• High performance under adverse operating conditions • Centrifuges
• A variety of configurations and mounting optional • Thermocouple and strain gauge instruments
• Stainless steel housing and higher protection optional • Robotics

Model Rings

Current Rating

(amps)

Voltage Rating

(VAC)

Size

(mm)

 Through Bore Working Temperature
2 5 10 15 OD L mm
PSR-HTA-12-6 1~6 6 380 55 33.8 12.7 +80℃ ~ +400℃
PSR-HTA-C12 12 12 380 22 L / +80℃ ~ +400℃
PSR-HTA-C15 15 15 380 22 29.5 / +80℃ ~ +400℃
PSR-HTA-C32 32 32 380 22 57.6 / +80℃ ~ +400℃
PSR-HTA-12-4P3S 7 3 4 380 47 51 / +80℃ ~ +400℃
Remark: Other standard capsule and through bore type slip rings can provide high temperature version.

Specification
Insulation Resistance 500mΩ @ 500VDC
Electrical Noise 40mΩ max
Dielectric Strength 600VAC/ 50Hz/ 60s
Rotating Speed, Max 300rpm
Torque During Rotation, Max 0.01N*M @ room temperature
Life Time, Min 50 million revolutions
Contact Material Gold-Gold
Lead Wires 300mm AWG#28 Teflon Wires
Working Temperature +80℃~+400℃
Shock MIL-STD-810G
Vibration MIL-STD-810G
Humidity 95%
Protection Level IP54

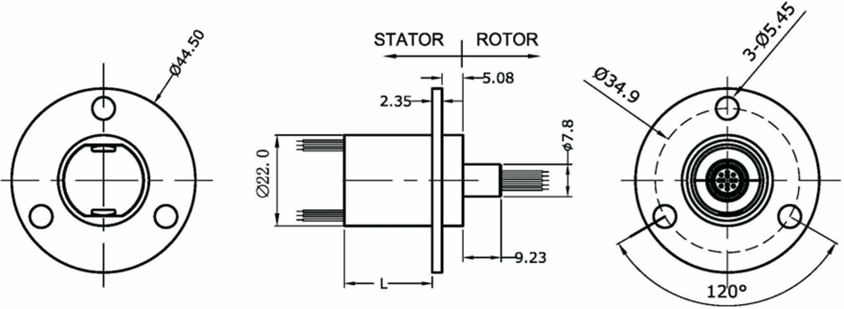

PSR-HTA-C12 Dimensions

300rpm High Temperature Slip Ring IP54 For Power Industrial / Aerospace Industrial

PSR-HTA-C15 Dimensions

300rpm High Temperature Slip Ring IP54 For Power Industrial / Aerospace Industrial

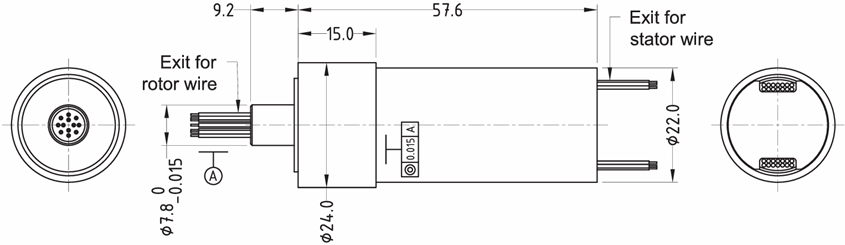

PSR-HTA-C32 Dimensions

300rpm High Temperature Slip Ring IP54 For Power Industrial / Aerospace Industrial

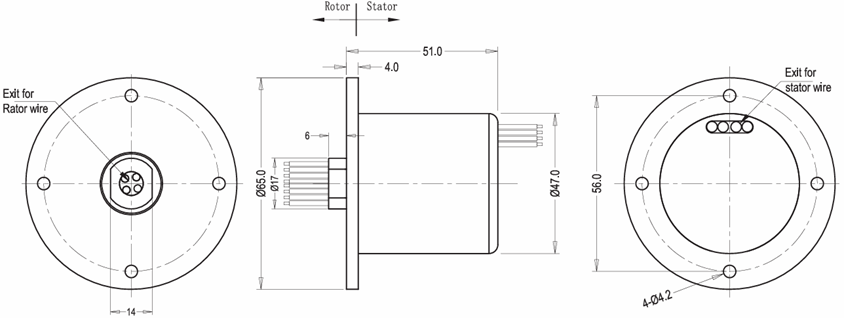

PSR-HTA-12-4P3S Dimensions

300rpm High Temperature Slip Ring IP54 For Power Industrial / Aerospace Industrial
