Specifications
Brand Name :
Panlink
Model Number :
PSR-C60-2P24S-SDI-1G
Place of Origin :
China
Certification :
ISO 9001: 2015, CE
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Ethernet Connections :
1 x 1000BaseT Ethernet
Video Connections :
1 Channel 3G-SDI
Circuits :
(2x)10A, (24x)2A, (1x)SDI, (1x)Ethernet
Voltage :
240VAC
Name :
Ethernet Slip Ring
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

1 Channel 1000M Ethernet + 1 Channel 3G-SDI Hybrid Slip Ring Suitable for Modern Industrial Communication and Video Surveillance Systems

Ethernet and High Definition(HD) Hybrid Slip Ring

Features Applications

• Compliant with 1 Group 1000BaseT Ethernet

• Motor control

• Compatible with 3G-SDI

• POE (Power-Over-Ethernet)

• Speeds up to 300 RPM

• High definition video security

• Multiple circuit configurations available

• Pan / tilt systems
• modern industrial communication

HD Hybrid Slip Ring 1 Channel 1000M Ethernet Slip Ring For Video Surveillance Systems The Ethernet cable is supplied terminated with a RJ45 connector.

HD Hybrid Slip Ring 1 Channel 1000M Ethernet Slip Ring For Video Surveillance Systems

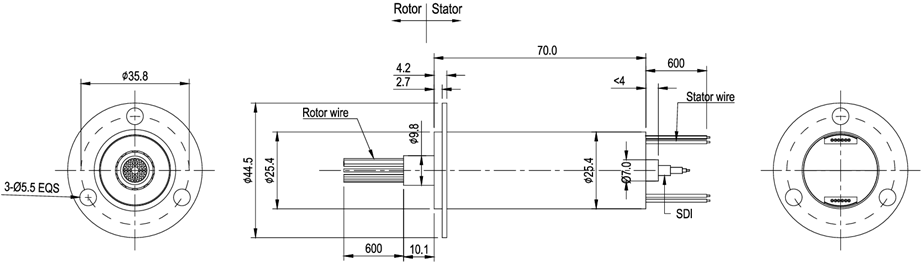

Model 1000BaseT Ethernet HD-SDI OD x L inch(mm) Circuits Voltage
PSR-C60-2P4S-SDI-1G 1 1

1″ x 2.76″

(25.4 x 70)

35

(2x)10A, (24x)2A, (1x)SDI, (1x)Ethernet

 240VAC
Specifications
Insulation Resistance 200MΩ@500VDC
Electrical Noise Max. 40mΩ
Dielectric Strength 500VAC@50Hz
Torque Max. 0.2N.M
Speed 300rpm
Lifetime 10 million revolutions
Working Temperature -67℉ to +160℉(-55℃ to +71℃)
Storage Temperature -67℉ to +176℉(-55℃ to +80℃)
Relative Humidity 95%±3(30℃+5℃)
Protection Level IP51
Contact Material Precious Metal
Housing Material Aluminum Alloy
Lead Wire Teflon Wire
