Gas / Fluid Integrated Slip Ring IP54 For Industrial Robots / Marine Industry
Gas / Fluid Integrated Slip Ring IP54 For Industrial Robots / Marine Industry
Specifications
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
Name :
Integrated Slip Ring
Optional :
the number and size of gas / fluid ports
Lifetime :
50 million revolutions
Contact Material :
Precious Metal
Housing Material :
Aluminium Alloy
Channel Diameter :
6,8,10,12mm
Protection Level :
IP54
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

Flexibly Customizable And Stable Gas / Fluid Integrated Slip Rings For Industrial Robots And Marine Industry

Gas / Fluid Integrated Slip Rings

In modern industrial systems such as industrial robots and laser processing equipment, they not only need electrical transmission, but also need gas and fluid transmission to satisfy the whole system’s complex operation. Panlink as a global leading rotating interface solutions provider, develop this series gas / fluid integrated slip rings to meet clients’ media and electrical infinite rotating need.

These hybrid units combine an electrical slip ring with a required number of gas / fluid passes. They feature both superior high power, signal and communication protocol handling capabilities of Panlink electrical slip rings and media rotary joints’ good sealing capability, to offer flexibility of electrical and media transfer through a single rotary joint, effectively facilitate the mounting and reduce the cost for the system.

Features Advantages

■ The number and size of gas / fluid ports optional

 ■ Long life and maintenance free operation
■ Suitable for a variety of media ■ Reliable seal technology
■ Modular electrical slip ring design ■ A variety of existing designs available

■ Flexible combination of electrical and media

channels

■ Superior power, signal and media handling

capabilities

Typical Applications
■ Industrial robots ■ Rotary indexing table
■ Laser processing equipment ■ Semiconductor
■ Lithium battery machinery

Fluid / Gas Integrated Slip Ring
Model Channels Current(amps) Voltage (VAC) Size Bore Speed
Eletrical Air 2 5 10 120 240 380 Dia x L(mm) mm RPM
PSR-T25F-8P32S2E-10mm 50 1 @ 10mm 42 8 × 78 x 175 300
PSR-TS25-2P36S1E&2Rc2 47 2 @ 10mm 45 2 × 78 x 178 300
PSR-C24-2Rc2-10mm 24 2 @ 10mm 24 × 80 x 150 300
PSR-TS25-4P12S1E&3Rc2 25

2 @ 12mm

1 @ 10mm

 21 4 × 78 x 187 300
Remark: gas channel can be changed to fluid channel.

Specification
Volatge 240VAC / 380VAC
Current 2A / 5A / 10A / 15A / 30A
Insulation Resistance 500MΩ@500VDC
Electrical Noise 40mΩ max
Dielectric Strength 500VAC@50Hz
Operating Speed 300rpm
Torque <2~10N*M
Life time 50 million revolutions
Contact Material Preciouse Metal
Lead Wire Teflon Wires
Housing Material Aluminium Alloy
Number of Channel 1,2,3
Channel Diameter 6,8,10,12mm
Pressure Rating Depend on Requirments
Working Temperature -40℃~+80℃
Storage Temperature -45℃~+85℃
Humidity 95±3%(30℃+5℃)
Protection Level IP54

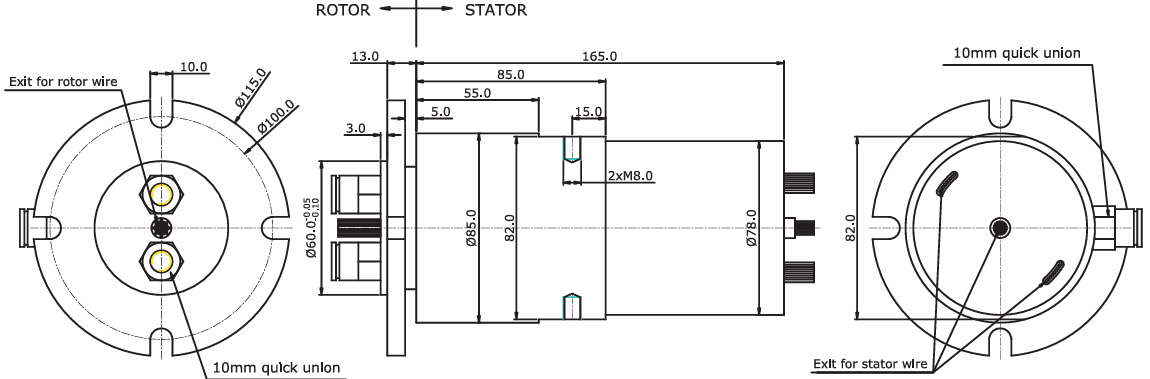

PSR-T25F-8P32S2E-10mm

Gas / Fluid Integrated Slip Ring IP54 For Industrial Robots / Marine Industry

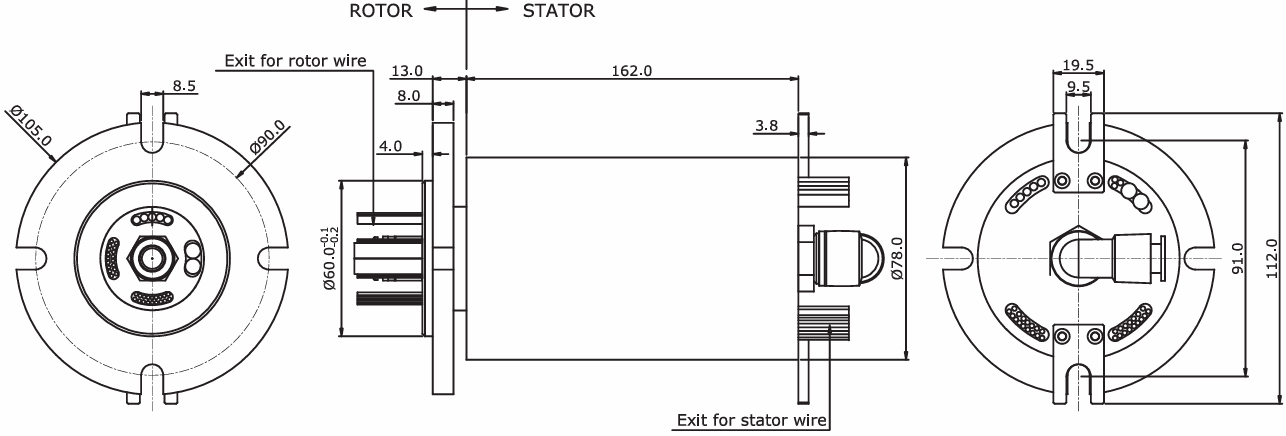

PSR-TS25-2P36S1E&2Rc2

Gas / Fluid Integrated Slip Ring IP54 For Industrial Robots / Marine Industry

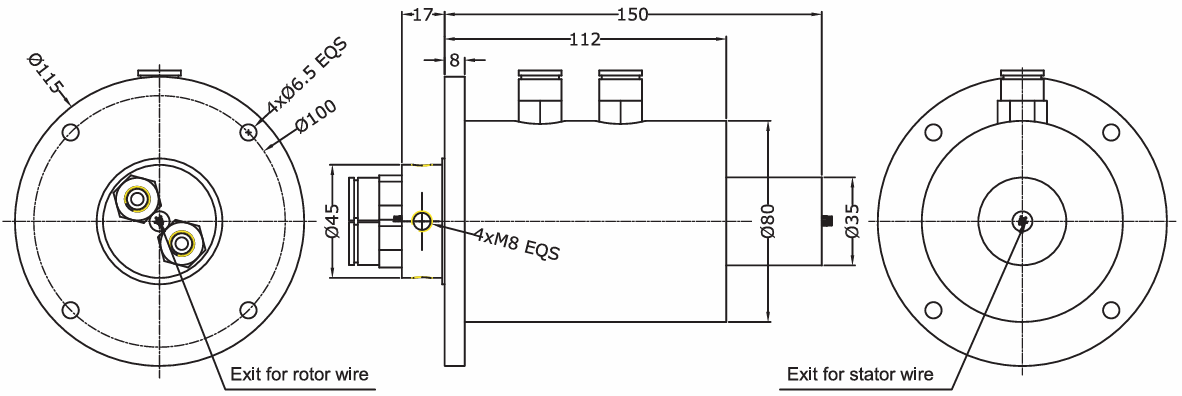

PSR-C24-2Rc2-10mm

Gas / Fluid Integrated Slip Ring IP54 For Industrial Robots / Marine Industry

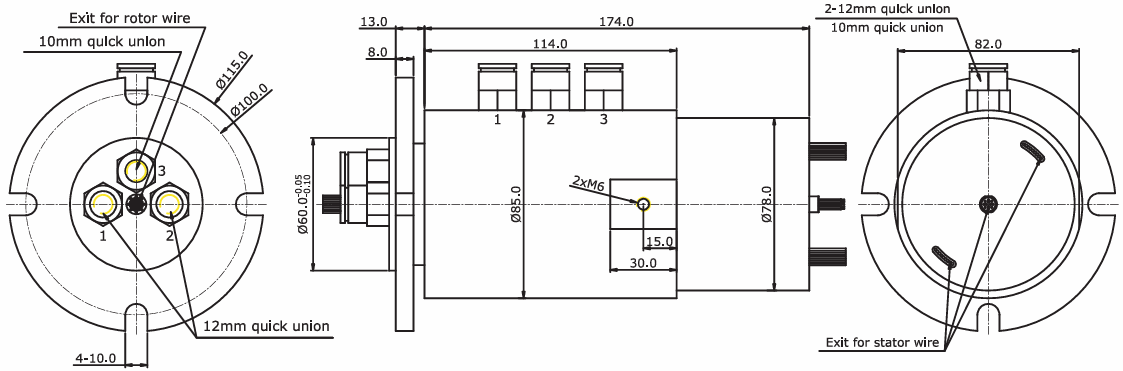

PSR-TS25-4P12S1E&3Rc2

Gas / Fluid Integrated Slip Ring IP54 For Industrial Robots / Marine Industry
