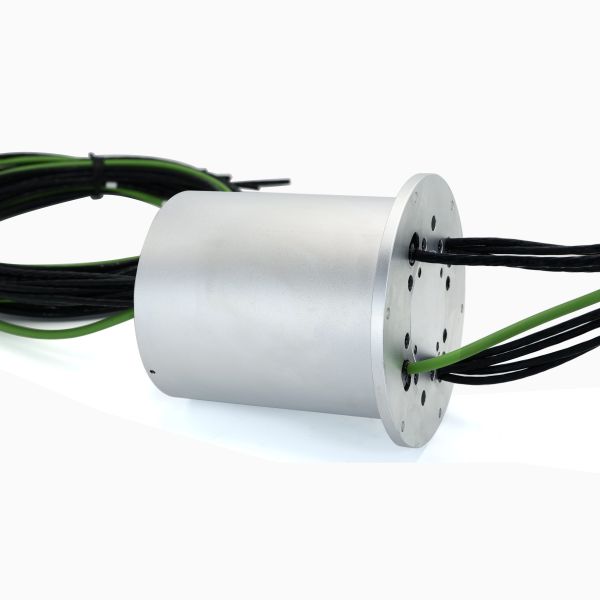

Heavy Duty High Current Slip Ring Manufacturers IP54 For Harsh Industrial Environments
Heavy Duty High Current Slip Ring Manufacturers IP54 For Harsh Industrial Environments
Heavy Duty High Current Slip Ring Manufacturers IP54 For Harsh Industrial Environments
Heavy Duty High Current Slip Ring Manufacturers IP54 For Harsh Industrial Environments
Specifications
Brand Name :
Panlink
Model Number :
PSR-T38S-5P(100A)1E
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Price :
Negotiable
Delivery Time :
4 weeks
Supply Ability :
40 Million a Year
Name :
High Current Slip Ring Manufacturers
Industrial Bus :
4 x Profinet
Circuits :
5 x 100A
Voltage :
600VAC
Contact Material :
Precious Metal
Housing Material :
Aluminium Alloy
Protection Level :
IP54
Description

Heavy-duty Slip Ring for Simultaneous 100A Power and PROFINET Transmission, Engineered for Harsh Industrial Environments

High Current + Profinet

Features Applications
• Industrial Bus: 4 x Profinet • Heavy-Duty Material Handling and Port Machinery
• Circuits: 5 x 100A • Large-Scale Processing & Manufacturing Equipment and
• Voltage: 600VAC Automated Production Lines
• Contact Material: Precious Metal

• Professional Testing and Simulation Equipment
• Housing Material: Aluminium Alloy

• Renewable Energy and Special-Purpose Vehicles
• Protection Level: IP54

Heavy Duty High Current Slip Ring Manufacturers IP54 For Harsh Industrial Environments

Model Current Voltage D x L(mm) Industrial Bus
PSR-T38S-5P(100A)1E 5 x 100A 600VAC 168 x 168 4 x Profinet
Specification
Total Rings 10
Circuit 5 x Power(100A); 4 x Profinet
Voltage 600VAC
Insulation Resistance 100MΩ@500VDC
Electrical Noise 40mΩ max
Dielectric Strength 1000VAC@50Hz
Operating Speed 300rpm
Torque ≤1.0N.m
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -20℃~+70℃
Storage Temperature -25℃~+75℃
Humidity 95±3%(30℃+5℃)
Protection Level IP54
