2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
Specifications
application :
POS cash register,All in one,Mini PC,etc.
form factor :
Mini-ITX
graphics card type :
Integrated
maximum ram capacity :
16 GB
memory type :
DDR4-2400, LPDDR3-2133
Brand Name :
HH/OEM/ODM
Place of Origin :
China guangzhou
chipset :
H310
chipset manufacturer :
Intel
cpu type :
Core I7/Core I5/Core I3
fsb / ht :
3.4GHz
hard drive interface :
SATA
item condition :
New
memory bank :
2 DDR4 DIMM
memory channel :
Double
package :
Yes
ports :
Wi-Fi, SATA, VGA , USB 2.0, Ethernet, USB 3.0, HDMI
products status :
New
socket type :
FCLGA1151
with cpu :
Yes
MOQ :
1 piece
Price :
$136-398 / piece
Description
Product Description

Product Name:

Intel i5-8250U DDR4 3.4GHz Processor Core i5 H310 EDP 4K at 60Hz display output 1000M RJ45 Network Card Motherboard with FAN.

Features:

1. Supporting 4K,at 60Hz Display Output;
2. Supporting Memory type DDR4-2133/2400,Max.16GB RAM;
3. Supporting OPS Card,OPS Mini PC Chassis;
4. Supporting Intel FCLGA1151 Sockets.
Specification
HYH310 Motherboard Spec.
Processor
Skylake 6th Gen.I3 6100 I3 6300 I5 6400 I5 6500 I7 6700;
Kaby lake 7th Gen. LGA1151 PIN Core I3 7100 I3 7300 I5 7500 I7 7700.
Coffee Lake 8th Gen. I3 8100 I3 8300 I5 8500 I7 8700
Chipset
H310
BIOS
Support LAN boot rom,Wake On LAN,Power ON,Watch dog,etc functions.
Display core
Built-in GPU
Display Output
Having EDP/LVDS/VGA/HD-MI Pin or Interfaces;
Support Independent three display;
Support Synchronous&Asynchronous Dual Panel and Three panel Display.
1*EDP PIN;
1*LVDS PIN;
1*VGA PIN;
1*HD-MI PIN.
Memory
1*DDR4 2133/2400 DIMM slot,Support Max.16GB
Sound effect
On-board HD Audio Sound Card,support 6 Sound Channel.
Network card
1*RTL8111F (RJ45 LAN).
Storage
2*SATA3.0(standard interface+2 set SATA Power);
1*Mini-PCI-E long card slot(Support WIFI/3G/4G/M-SATA functions);
1*M.2 slot(Support M.2 SATA protocol and PCIE(NVMe)protocol.
USB
6*USB2.0;
4*USB3.0.
Power
1*DC-in 12V or 19V(Interface:the inside diameter of 2.5mm);
On-board 4PIN socket.
Rear I/Ointerfaces
2*USB2.0
2*USB3.0
1*VGA interface
1*HD-MI interface
1*RJ45_LAN interface
1*AUDIO pin
1*DC

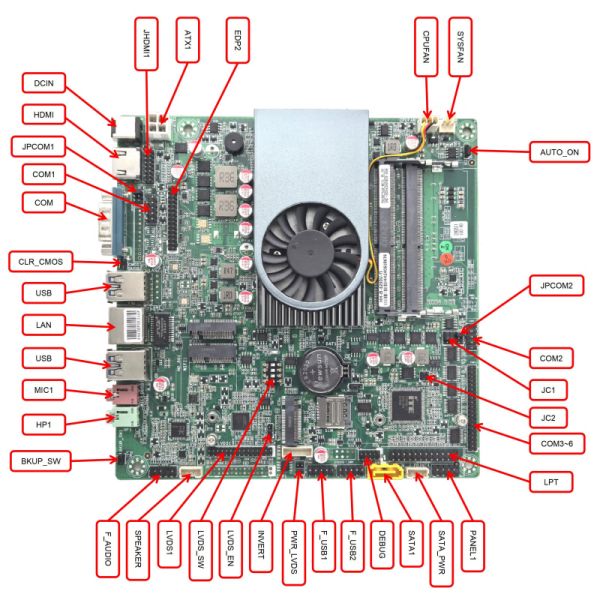

Built-in I/O interfaces
1*4Pin ATX
1*AUDIO PIN
2*SATA hard disk interface
2*USB2.0 PIN
1*USB3.0 PIN
1*INT_SPK PIN(Power Amplifier)
1*CPU FAN PIN
1*SYS FAN PIN
1*F_PANEL PIN
6*COM PIN
1*SIM Card Slot
Temperature
Work:-20°C ~60°C
Humidity
5%~90%,Non-Condensation.
Size
170*170mm
Packing & Delivery
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu
2025 DDR4 PC Board I3-8130U I5-8250U I7-8550U M.2 4K Dual-LAN I3 I5 I7 6COM Port Max 16G RAM Mini ITX mainboard with cpu


Packaging & Shipping

Packing
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and
separated by stiff cardboards in carton boxes.

1Piece/Carton(G.W. : 1.0-1.5KG);
5Pieces/Carton(G.W. : 5.0-7.5KG);
10Pieces/Carton(G.W. : 10.0-15.0KG);
