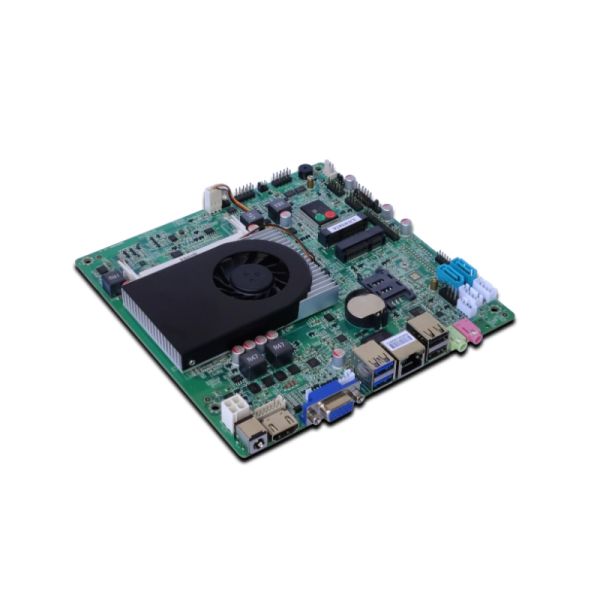

2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard
2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard
2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard
2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard
2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard
2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard
2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard
2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard
Specifications
application :
POS cash register,All in one,Mini PC,etc.
form factor :
Mini-ITX
graphics card type :
Integrated
maximum ram capacity :
8 GB
memory type :
DDR3
Brand Name :
HH/OEM/ODM
Place of Origin :
China guangzhou
chipset :
HM87
chipset manufacturer :
Intel
cpu type :
Core I7/Core I5/Core I3
hard drive interface :
SATA
item condition :
New
memory bank :
1 DDR3 DIMM
memory channel :
Double
package :
Yes
ports :
Wi-Fi, SATA, VGA , USB 2.0, Ethernet, USB 3.0
products status :
New
socket type :
Skylake-U
with cpu :
Yes
MOQ :
1 piece
Price :
$61-72 / piece
Description
Product Description
Specification
HYH310 Motherboard Spec.
Size
170mm(L)*170mm(W)*20mm(H)
CPU
Support 5th generation CPU: I3-5010U, I5-5200U, I7-5500U, etc.
Chipset
Broadwell-U Express Chipset
Memory
1*NB-DDR3 SODIMM memory slot, supports 1600MHz memory, low voltage 1.35V, maximum support 8GB
Power supply
1*DC_IN ;1*DC_ATX
Supports 12V voltage, the inner diameter of the DC head is 2.5MM
The motherboard consumes about 40W when fully loaded. It is recommended to use a 12V5A or higher power supply
Display
Support single display, dual display copy, dual display expansion, single display under DOS,
Intel HD Graphics 5500 graphics controller.
1*VGA DB15 interface: Supports the highest resolution of 1920 * 1200@60HZ
1*VGA_OUT pin: Supports the highest resolution of 1920 * 1200@60HZ (12Pin, 1*12Pin, 2.0mm)
1*HDMI 1.4 interface: Support 4K resolution 4096/3840 * 2160@30HZ
1*HDMI_CON pin: Support 4K resolution 4096/3840 * 2160@30HZ (16Pin, 2*8Pin, 2.0mm)
1*EDP pin: Support 4K resolution 3840 * 2160@60HZ (30Pin, 2*15Pin, 2.0mm)
1*EDP_PWR pin: EDP working voltage control pin (6Pin, 2*3Pin, 2.0mm)
Network
1/2*RJ45 LAN interface: Optional RTL8111F Gigabit/RTL8105E 100M network card chip, support network wake-up and PXE diskless boot
function.
1*Mini-PCIE interface: Support WIFI
Hard disk
1*SATA1 interface:Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps
1*SATA2 interface: Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps
1*MSATA interface: Support MSATA disk
1*SATA_PWR1 pin: Hard disk power supply pin, can take 5V, 12V power. (4Pin, 1*4Pin, 2.54mm)
1*SATA_PWR2 pin: Hard disk power supply pin, can take 5V, 12V power. (4Pin, 1*4Pin, 2.54mm)
Sound
Integrated Cmedia HS-100B high-fidelity USB audio chip
1*LIN_OUT interface: Support audio output (green)
1*MIC_IN interface: Support microphone input (red)
1*INT_SPK pin: The amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm)
USB
2*USB3.0 interface: Rear standard USB3.0 interface
2*USB2.0 interface: Rear standard USB2.0 interface
1*F_USB3 pin: Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm)
F_USB3 No signal on pins 2/4/6/8 by default
1*F_USB4 pin: Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm)
Switch
1*F_PANEL pin: Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.54mm)
1*AUTO_SW pin: Hardware control power-on pin (3Pin, 1*3Pin, 2.0mm)
Other I/O
1*COM1 pin: Serial port, only supports RS232 (9Pin, 2*5Pin, 2.54mm)
1*JCOM1 pin: Control COM1 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm)
1*SIM_CARD slot: Support SIM card, SIM card is required when using 3G/4G
1*CLR_CMOS pin: Motherboard reset and discharge pin (2Pin, 1*2Pin, 2.54mm)
1*SYS_FAN pin: System fan pin, full speed, does not support temperature control (3Pin, 1*3Pin, 2.54mm)
1*CPU_FAN pin: CPU fan pin, supports temperature control (3Pin, 1*3Pin, 2.54mm)
1*J_GPIO pin: Standard GPIO pin (10Pin, 2*5Pin, 2.0mm)
Operating Environment
Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, no condensation
BIOS
AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification
Watch Dog
Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)
Operating system
Supports Win10, Win8, Win7, Linux, etc.
Packing & Delivery
2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard


Packaging & Shipping

Packing
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and
separated by stiff cardboards in carton boxes.

1Piece/Carton(G.W. : 1.0-1.5KG);
5Pieces/Carton(G.W. : 5.0-7.5KG);
10Pieces/Carton(G.W. : 10.0-15.0KG);
2025 Hot Sale 5th Gen I3 5005U I3 5010U I5 5200U I5 5250U I5 5300U Processor EDP Mini ITX DDR3 Core I5 Motherboard
