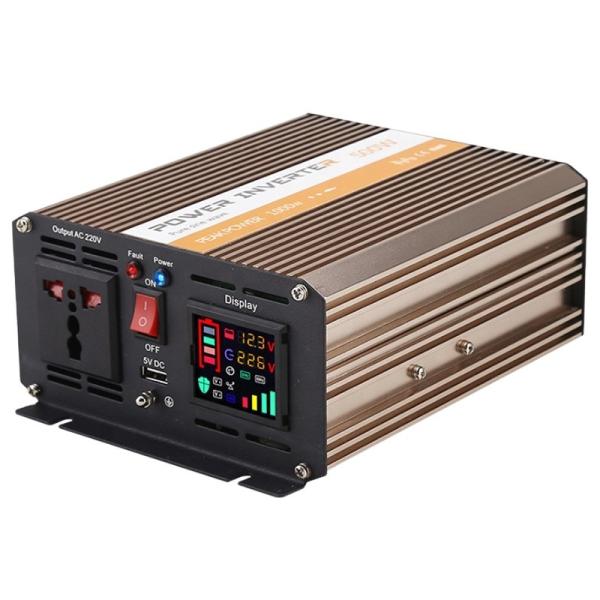

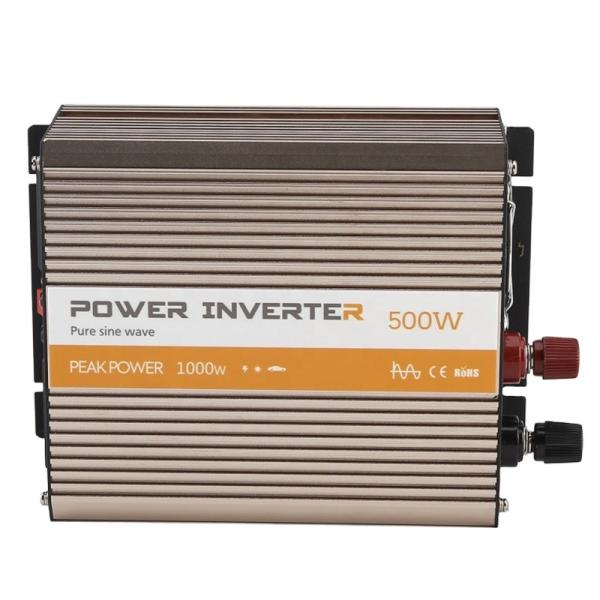

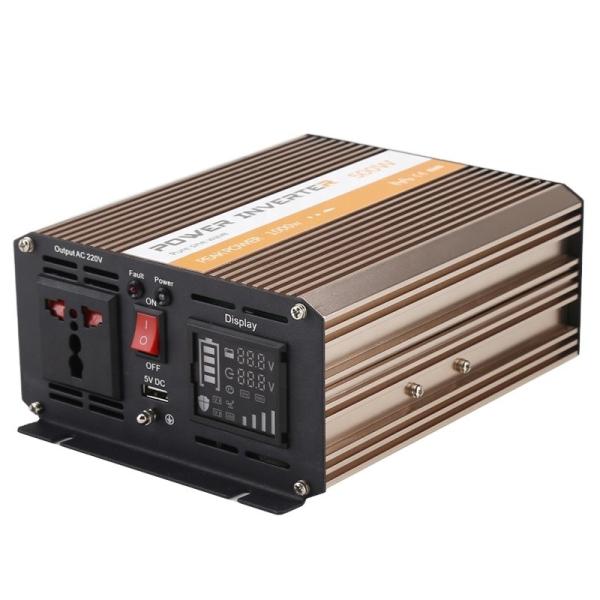

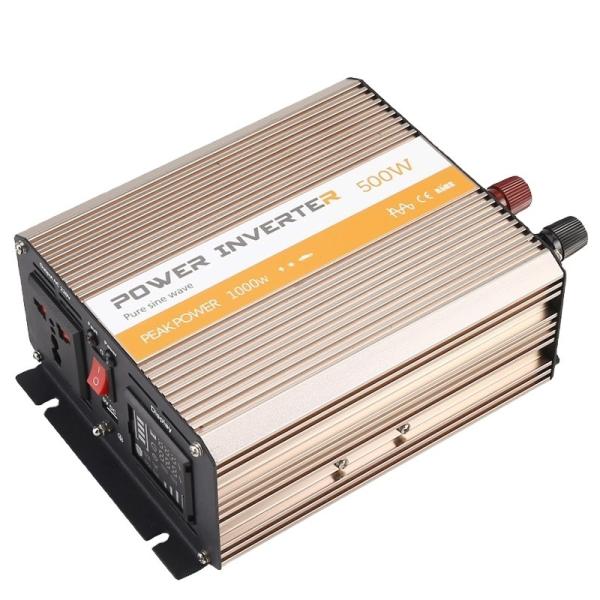

LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
customized
Model Number :
CSP500-12/24V-2
Input Voltage :
12Vdc/24Vdc
Output Voltage :
110VAC or 220VAC
Output Frequency :
50Hz/60Hz
Output Type :
DUAL
Size :
232*150*78mm(LxWxH)
Type :
DC/AC Inverters
Inverter Efficiency :
94.2%
Certificate :
CE Rohs
Warranty :
2 Years
Weight :
3kg
Product name :
Solar Power Inverter
Color :
Brown
Inverter type :
Off-grid Solar Power Inverter
Efficiency :
94%
Frequency :
50/60HZ
Wave form :
THD<3%(Linear Load)
Protection function :
Over load, Short Circut, Battery low/over voltage, Over temperature
Output waveform :
Pure Sine Wave Output
Cooling way :
Intelligent cooling fan
Soft start :
Yes
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
Port :
Ningbo or Shanghai
Supply Ability :
5000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$60.00 - $70.00/pieces
Description

LCD Display 500W On Grid Solar Inverter Off Grid system Pure Sine Wave Double Voltage Inverter Solar Power

Specifications
Model CSP500-12/24V-2
Rated Power 500W
Surge Power 1000W
Input Voltage 12V/24VDC automatic recognition
Output Voltage 110VAC±5% 220VAC±5%
USB Port 5V 1000MA
Frequency 50HZ±3 or 60HZ±3
Output Waveform Pure sine wave
Soft Start YES
THD/AC Regulation THD<3%(Linear Load)
Output Effciency 94.2% MAX
No Load Current) 0.08A 0.04A
DC Voltage Range 10V-15V 20V-31V
Low Voltage Alarm 10.5±0.5V 21±0.5V
low Voltage Shut Down 10±0.5V 20±0.5V
Low Voltage Recovery 12.5±0.5V 24±0.5V
Over Voltage Shut Down 15±0.5V 31±0.5V
Over Voltage Recovery 14.7±0.5V 29±0.5V
Cooling Way Intelligent Cooling Fan
Protection Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature (-10℃+60℃ Civil class,-25℃+60℃ technical grade,-40℃+70℃ army grade)
Storage Temperature (-40℃ - 70℃)
Humidity 90% MAX,Non-condensing
Warranty 2 Years
Net Dimension 232*150*78mm(LxWxH)
Package Dimension 265*215*140mm(LxWxH)
N.W./Unit/G.W./Unit 2.2kg/2.4Kg
Ctn 10PCS
Meas./Ctn 760*450*480mm(LxWxH)
G.W./Ctn 24.5kg
