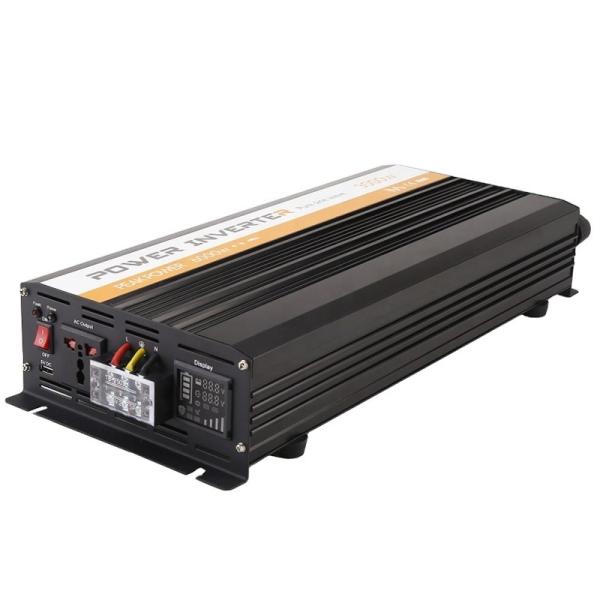

Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Customized
Model Number :
CS12P3000
Input Voltage :
12VDC/24VDC/48VDC
Output Voltage :
110VAC or 220VAC
Output Frequency :
50Hz/60Hz
Output Type :
Single
Size :
480*199*84MM(LxWxH)
Type :
DC/AC Inverters
Inverter Efficiency :
94.2%
Certificate :
CE Rohs
Warranty :
2 Years
Weight :
8
Product name :
Solar Power Inverter
Color :
Black
Inverter type :
Off-grid solar power inverter
Efficiency :
94%
Frequency :
50/60HZ
Wave form :
THD<3%(Linear Load)
Protection Function :
Over load, Short Circut, Over temperature, battery low/over voltage
Output waveform :
Pure Sine Wave Output
Cooling way :
Intelligent cooling fan
Soft start :
Yes
Packaging Details :
1.Strong Strandard Export Package,Meet The Long-Distance Transportation
MOQ :
10 pieces
Price :
$198.00/pieces 10-99 pieces
Description

Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter

Products Specification:
Model CS12P3000-1 CS12P3000-2 CS24P3000-1 CS24P3000-2 CS48P3000-1 CS48P3000-2
Rated Power 3000W
Surge Power 6000W
Input Voltage 12VDC 24VDC 48VDC
Output Voltage 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5%
USB Port 5V 1000MA
Frequency 50HZ±3 or 60HZ±3
Output Waveform Pure sine wave
Soft Start YES
THD/AC Regulation THD<3%(Linear Load)
Output Effciency 94.2% MAX
No Load Current 1.8A 1.8A 0.9A 0.9A 0.5A 0.5A
DC Voltage Range 10V-15.5V 10V-15.5V 21.5V-28V 21.5V-28V 41.5V-59.5V 41.5V-59.5V
Low Voltage Alarm 10.5±0.5V 21±0.5V 42±1V
low Voltage Shut Down 10±0.5V 20±0.5V 40±1V
Low Voltage Recovery 13±0.5V 24±0.5V 48±1V
Over Voltage Shut Down 15.5±0.5V 31±0.5V 61±1V
Over Voltage Recovery 14.8±0.5V 29±0.5V 59±1V
Cooling Way Intelligent Cooling Fan
Protection Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature (-10℃+60℃ Civil class,-25℃+60℃ technical grade,-40℃+70℃ army grade)
Storage Temperature (-30℃ - 70℃)
Humidity 90% MAX,Non-condensing
Warranty 2 Years
Net Dimension 480*199*84MM(LxWxH)
Package Dimension 608*260*147MM(LxWxH)
N.W./Unit/G.W./Unit 6.1kg/7.135Kg
Ctn 4PCS
Meas./Ctn 625*530*295mm(LxWxH)
G.W./Ctn 30.44kg


Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter

Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter

Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter

Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter

Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter

Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter

Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter

Single phase inverter 3000watt on grid Pure Sine Wave power wechselrichter
