Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Specifications
Brand Name :
D.K.HISTRON
Model Number :
HC-1200P
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
T/T
Delivery Time :
60days
Price :
12000-200000USD
Supply Ability :
20sets/month
Packaging Details :
polyfilm and wooden
Productname :
Panel Bender
Type :
Bending Machine
Speed :
Adjustable bending speed
Controlsystem :
CNC (Computer Numerical Control)
Precision :
±0.1mm
Safetyfeatures :
Emergency stop, safety guards
Automationlevel :
Fully automated
Powersupply :
Electric
Description
CNC Controlled Panel Bender with ±0.1mm Precision
Fully automated operation for high efficiency bending with exceptional precision and reliability.
Product Advantages
  • High-strength Q235B/Q335B welded frame ensures stability under high-tonnage impact
  • Double L-shaped guide positioning with front material pushing improves forming accuracy
  • Automatic lubrication system with oil shortage alarm reduces maintenance frequency

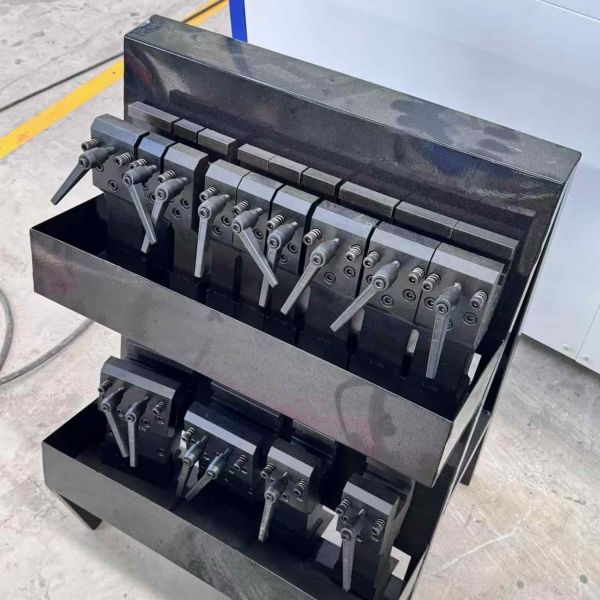

  • Quick-clamp quick-release tool change with reinforced C-axis rotation improves changeover efficiency
  • Self-developed control system ensures precision and reliability

Technical parameters

ModelHC-1200HC-1200P
Feeding structurePressure arm typePressure arm type
Minimum internal dimensions for quadrilateral forming180mmx280mm180mmx280mm
Bending height170mm(customizable)170mm(customizable)
Average powerAbout 1.5KWAbout 1.6KW
User operating environmentOperation system above Win7Operation system above Win7
Maximum bending thicknessCold plate 1.5mmCold plate 2.0mm
304 stainlesss steel 1.0mm304 stainlesss steel 1.5mm
Number of axles1313
Product Functions
  • Automatic feeding positioning: Pressure arm clamping with precise feeding
  • Multi-axis linkage control: 13-axis synchronized coordination
  • Graphical error detection programming: Input dimensions, auto-programming with result preview
  • Cloud operation interface: Real-time equipment status monitoring
  • Automated production line interface: Connectable to loading/unloading robots
  • Partial load visualization: Real-time force display for timely adjustment
  • Self-diagnosis function: Reduces maintenance downtime
Operation Instructions
Check lubricant level before startup. Power on and enter the control system main interface. Input workpiece dimensions in the graphic programming interface. The system automatically generates bending paths and displays forming preview. Confirm correctness and start automatic processing. Monitor partial load display during processing. Remove workpiece and inspect quality after completion.
Control System
The bending center control system employs a top-level computer numerical control (CNC) system integrated with motion control cards. The CNC system features an intuitive human-machine interface and supports graphical programming. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision in automated manufacturing. The motion control cards support 24-axis operation, with an expandable capacity up to 64 axes, and utilize EtherCAT bus control for high-precision motion control.
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Operation Interface
The interface is simple, easy to learn, with excellent human-computer interaction designed for efficient operation.
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Industrial Applications
Widely used in file cabinetry, electric cabinet, aluminum veneer wall industry, stainless steel kitchenware industry, refrigeration equipment industry, chassis and cabinet industry, laboratory construction industry, metal door industry and related metal fabrication sectors.
Material Compatibility
Typically processes carbon sheet, aluminum sheet, stainless steel sheet, and galvanized sheet materials.
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control

Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control
Fully Automated CNC Panel Bender ±0.1mm Precision 13-64 Axis EtherCAT Control

Shipping & Delivery
Delivery time: 40 working days after deposit confirmation. Transportation methods: Sea freight or land transport available, handled by professional freight companies. Full function testing conducted before shipment. Export documents include commercial invoice, packing list, certificate of origin, etc.
Payment Terms
Payment methods: T/T (wire transfer) or L/C accepted. USD or RMB settlement supported. Proforma invoice provided for customer payment arrangement.
Frequently Asked Questions
  • Can you arrange samples for me?
    Of course, we provide free samples according to customer requirements.
  • What is the warranty period for the machine?
    The warranty period for the machine is one year. Lifetime maintenance and upgrade services are provided after the warranty period.
  • Are all the machines standard?
    No, customization is available. We can manufacture non-standard machines according to customer requirements.
