Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Specifications
MOQ :
1SET
Payment Terms :
T/T
Safetyfeatures :
Emergency stop, safety guards
Applications :
Automotive, aerospace, construction, manufacturing
Precision :
High precision bending
Certification :
CE,ISO9001
Type :
Bending Machine
Brand Name :
D.K.HISTRON
Packaging Details :
suitable for long distance transport
Automationlevel :
Fully automated
Maxbendingangle :
Up to 180 degrees
Operationmode :
Programmable
Core components :
PLC, Engine, Gearbox
Productname :
Sheet Metal Folding Machine
Delivery Time :
60 days
Place of Origin :
CHINA
Controlsystem :
CNC (Computer Numerical Control)
Price :
15000-30000USD
Supply Ability :
20sets/month
Model Number :
HC-1200
Powersupply :
Electric
Description

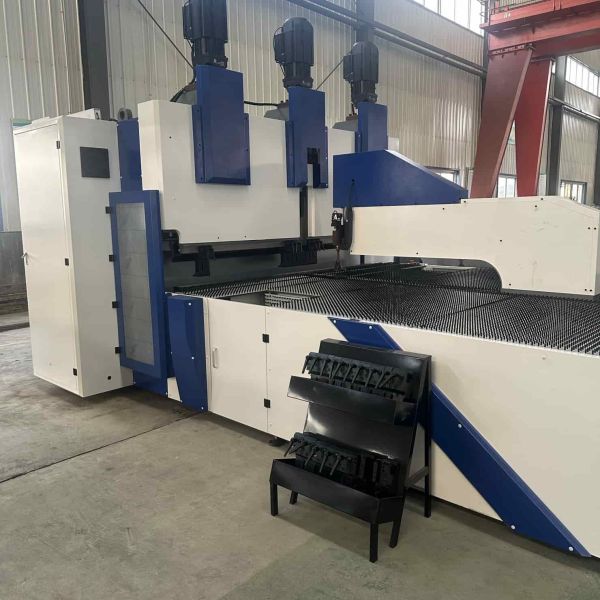

CNC Automatic Bending Center Sheet Metal Folding Machine
High precision bending machine specifically designed for metal door manufacturing and various industrial applications.
Key Features
  • Patented system with exceptional stability
  • High-speed bending at 0.2 seconds per cut
  • One-time workpiece forming capability
  • Full servo control with low energy consumption
  • Simple maintenance and low operating costs
  • User-friendly operation with minimal personnel requirements
  • Multi-axis linkage control for high automation
  • C-type pressure arm with lead screw multi-link transmission
  • Integrated electrical design for convenient operation
  • Visualized eccentric load alarm for extended equipment life
  • Open system port for auxiliary equipment integration
  • Multiple loading/unloading options (manual, robotic arm, truss, conveyor)
  • Simple, clear system interface for easy learning
  • Wide material compatibility (carbon steel, stainless steel, aluminum, laminated board)
  • Multiple precise positioning methods for optimal bending accuracy
Technical Specifications
Model HC1200 HC1200P
Feeding structure Pressure arm type Pressure arm type
Minimum internal dimensions for quadrilateral forming 180mm x 280mm 180mm x 280mm
Bending height 170mm (customizable) 170mm (customizable)
Average power About 1.5KW About 1.6KW
User operating environment Operation system above Win7 Operation system above Win7
Maximum bending thickness Cold plate 1.5mm
304 stainless steel 1.0mm		 Cold plate 2.0mm
304 stainless steel 1.5mm
Number of axles 13 13
Industrial Applications
This bending center serves multiple industries including file cabinetry, aluminum veneer walls, stainless steel kitchenware, refrigeration equipment, chassis and cabinet manufacturing, laboratory construction, metal doors, and more.
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
Advanced Control System
The bending center features a top-level computer numerical control (CNC) system integrated with motion control cards. The CNC system includes an intuitive human-machine interface with graphical programming support. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision in automated manufacturing. The motion control cards support 24-axis operation, expandable up to 64 axes, and utilize EtherCAT bus control for high-precision motion control.
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control
User-Friendly Operation Interface
The interface is designed for simplicity and ease of use, featuring excellent human-computer interaction for quick learning and efficient operation.
Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control

Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control

Metal Door CNC Sheet Metal Folding Machine 13-64 Axis EtherCAT Control

Frequently Asked Questions
Can you arrange samples for me?
Yes, we provide free samples according to customer requirements.
What is the warranty period for the machine?
The warranty period is one year. We provide lifetime maintenance and upgrade services after the warranty period.
Are all the machines standard?
No, customization is available. We can manufacture non-standard machines according to customer requirements.
What types of sheet materials can your machine bend?
Typically, we can process carbon sheet, aluminum sheet, stainless steel sheet, and galvanized sheet.
