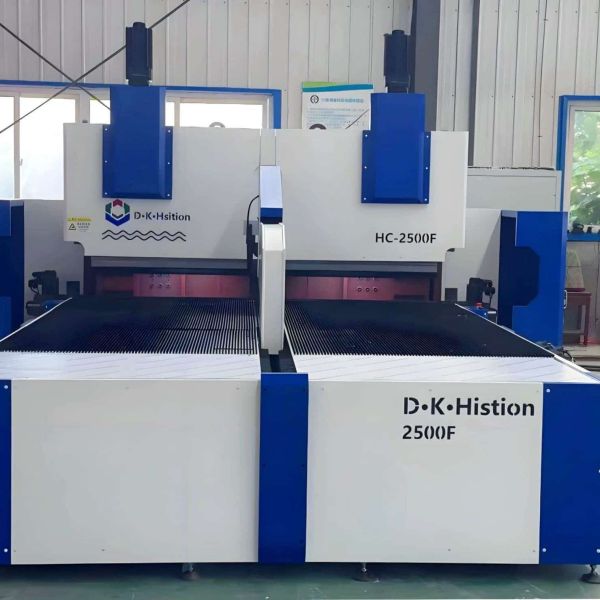

High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting
High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting
High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting
High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting
High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting
High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting
Specifications
Brand Name :
D.K.HISTRON
Model Number :
HC-1200
Certification :
CE，ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
T/T
Delivery Time :
60 days
Price :
15000-30000USD
Supply Ability :
20sets/month
Packaging Details :
suitable for long distance transport
Productname :
FLEXIBLE BENDING CENTER
Type :
Bending Machine
Precision :
High precision bending
Controlsystem :
CNC (Computer Numerical Control)
Safetyfeatures :
Emergency stop, safety guards
Maxbendingangle :
Up to 180 degrees
Automationlevel :
Fully automated
Operationmode :
Programmable
Applications :
Automotive, aerospace, construction, manufacturing
Powersupply :
Electric
Description
Flexible Bending Center with High-Speed Motors and Custom Presser Foot Lifting
Key Features
  • Pressure arm feeding system for high versatility
  • Customizable auxiliary folding knife and power hinge knife
  • Customized processing of workpiece bending height
  • Customized presser foot lifting function
  • High-speed motors for improved processing efficiency
Technical Specifications
Model HC1200 HC1200P
Feeding structure Pressure arm type Pressure arm type
Minimum internal dimensions for quadrilateral forming 180mm x 280mm 180mm x 280mm
Bending height 170mm (customizable) 170mm (customizable)
Average power About 1.5KW About 1.6KW
User operating environment Operation system above Win7 Operation system above Win7
Maximum bending thickness Cold plate 1.5mm
304 stainless steel 1.0mm		 Cold plate 2.0mm
304 stainless steel 1.5mm
Number of axles 13 13
Applications
This bending center serves multiple industries including file cabinetry, aluminum veneer walls, stainless steel kitchenware, refrigeration equipment, chassis and cabinet manufacturing, laboratory construction, metal doors, and more.
High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting
Advanced Control System
The bending center features a top-level computer numerical control (CNC) system integrated with motion control cards. The CNC system includes an intuitive human-machine interface with graphical programming support. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision in automated manufacturing. The motion control cards support 24-axis operation, expandable up to 64 axes, and utilize EtherCAT bus control for high-precision motion control.
High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting
User-Friendly Operation Interface
The interface is designed for simplicity and ease of use, featuring excellent human-computer interaction for quick learning and efficient operation.
High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting

High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting

High Speed Motors Flexible Panel Bending Machine Custom Presser Foot Lifting

Can you arrange samples for me?
Yes, we provide free samples according to customer requirements.
What is the warranty period for the machine?
The warranty period is one year. We provide lifetime maintenance and upgrade services after the warranty period.
What is the MOQ of the machine?
The minimum order quantity is 1 set.
Are all the machines standard?
No, customization is available. We can manufacture non-standard machines according to customer requirements.
What products can your machines produce?
Our machines serve various industries including file cabinetry, aluminum veneer walls, stainless steel kitchenware, refrigeration equipment, chassis and cabinet manufacturing, laboratory construction, metal doors, and more.
What types of sheet materials can your machine bend?
Typically, we can process carbon sheet, aluminum sheet, stainless steel sheet, and galvanized sheet.
