High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes
High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes
High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes
High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes
High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes
High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes
High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes
High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes
Specifications
Brand Name :
D.K.HISTRON
Model Number :
HC-6024
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
depend on model
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
50 days
Packaging Details :
depends on machines
Product name :
Laser Cutting Machine
Cooling mode :
Water Cooling,protection system
Cnc or not :
Yes
Application :
Laser Cutting,fiber type
Cutting thickness :
Materials,0-30mm,0-25mm,6mm,Depend on material
Cutting speed :
0-40000mm/min,80m/min,0~600mm/s,Depends on the materials and its thickness,800mm/s
Warranty :
1 Year
Color :
Blue-white,Blue,Black white,Green-white,Required
Function :
Cutting Metal Materials,Cutting Nonmetal Materials,Cutting Metal Pipe,Cut
After-sales service provided :
Engineers available to service machinery overseas
Control system :
cnc control,Automatic continuous feeding,Servo drivers and motors
Keyword :
Fiber Laser Cutting Machiens
Description

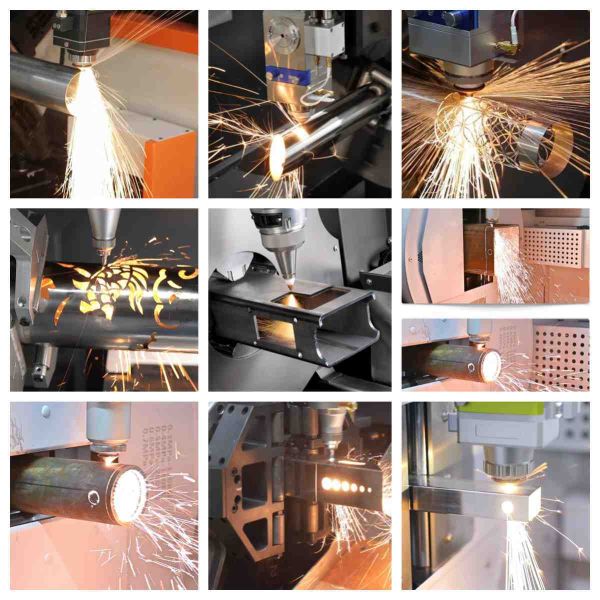

3D Laser Pipe Cutting Machine Square Round Tube Pipe Fiber Cutting Machine
Product Overview

Tube and Pipe Laser Cutting Machine designed for precision cutting of various metal profiles with fast cutting speeds and high-quality results.

  • Fast cutting speed and high cutting quality
  • Manual feeding system
  • Slag removal inside the pipe
  • Smooth, flat incision requiring no re-processing
Applications

Laser pipe cutting machine is widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing, kitchen processing and other manufacturing and processing industries.

Cutting Parameters
  • Materials: stainless steel, carbon steel, galvanized steel, aluminum, and copper
  • Cutting shapes: square tube, round tube, rectangular tube, elliptical tube
  • Specific profiles: I-beam, H-beam, channel steel, equilateral angle steel, unequal angle steel, flat steel
  • Maximum cutting diameter: 350mm for square and round pipes
  • Maximum length: 6.5m
  • Core features: Low investment cost, fast operating speed, high cutting accuracy, small space occupation
  • Customization: Models can be made according to the shape and thickness of the material you want to cut
Product Parameters
Model Fiber laser cutting pipe machine
Tube length 6000mm
Maximum diameter 10-245mm
Fiber power 1500w/2000w/3000w/6000w/8000w/10000w/12000w/15000w/20000w
Laser length 1064mm
Beam quality <0.373mrad
Cutting accuracy ± 0.05mm
Repeated positioning accuracy ± 0.03mm
Maximum operation speed 40 meters/minute
The cutting speed Depends on the material
Auxiliary gas Auxiliary gas air, oxygen, nitrogen
Position Type red dot
Working Voltage 380V/50Hz
High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes

High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes

High Accuracy CNC Fiber Laser Cutting Machine Fast Speed for Metal Pipes

Frequently Asked Questions
Q1. How can I get the suitable machine?

Please tell us the materials you need to process, and the materials size like the length, width and thickness. We will suggest suitable machine according to your requirement.

Q2. What about the after-sale service for this machine?

We support 24 hours online service, and can use remote control to help you check and solve the problem. And we also support door service to install and teaching.

Q3. Does the machine have CE, ISO and other safety certificates?

All our machines has safety certificates. You can ask for the electronic version of the certificate with our sales staff.

Q4. What is the delivery time for the machine?

Fast delivery. The delivery time for most machine models is usually within 50 days.
