Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Specifications
Brand Name :
D.K.HISTRON
Model Number :
HC-2000
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
12000-200000USD
Payment Terms :
T/T
Supply Ability :
20sets/month
Delivery Time :
60 days
Packaging Details :
wooden and polybags
Productname :
Metal sheet fabrication machine
Bendingcapacity :
Varies by model
Controlsystem :
CNC (Computer Numerical Control)
Precision :
±0.1mm
Safetyfeatures :
Emergency stop, safety guards
Automationlevel :
Fully automated
Maxbendingthickness :
Up to 3.5mm (depending on model)
Powersupply :
Electric
Description
Full Automatic Panel Bender Flexible Sheet Metal Bending Center
Product Overview
This versatile bending machine with arm sheet feeding type covers everything from prototyping to mass production, featuring advanced automation and precision control for sheet metal fabrication.
Key Advantages

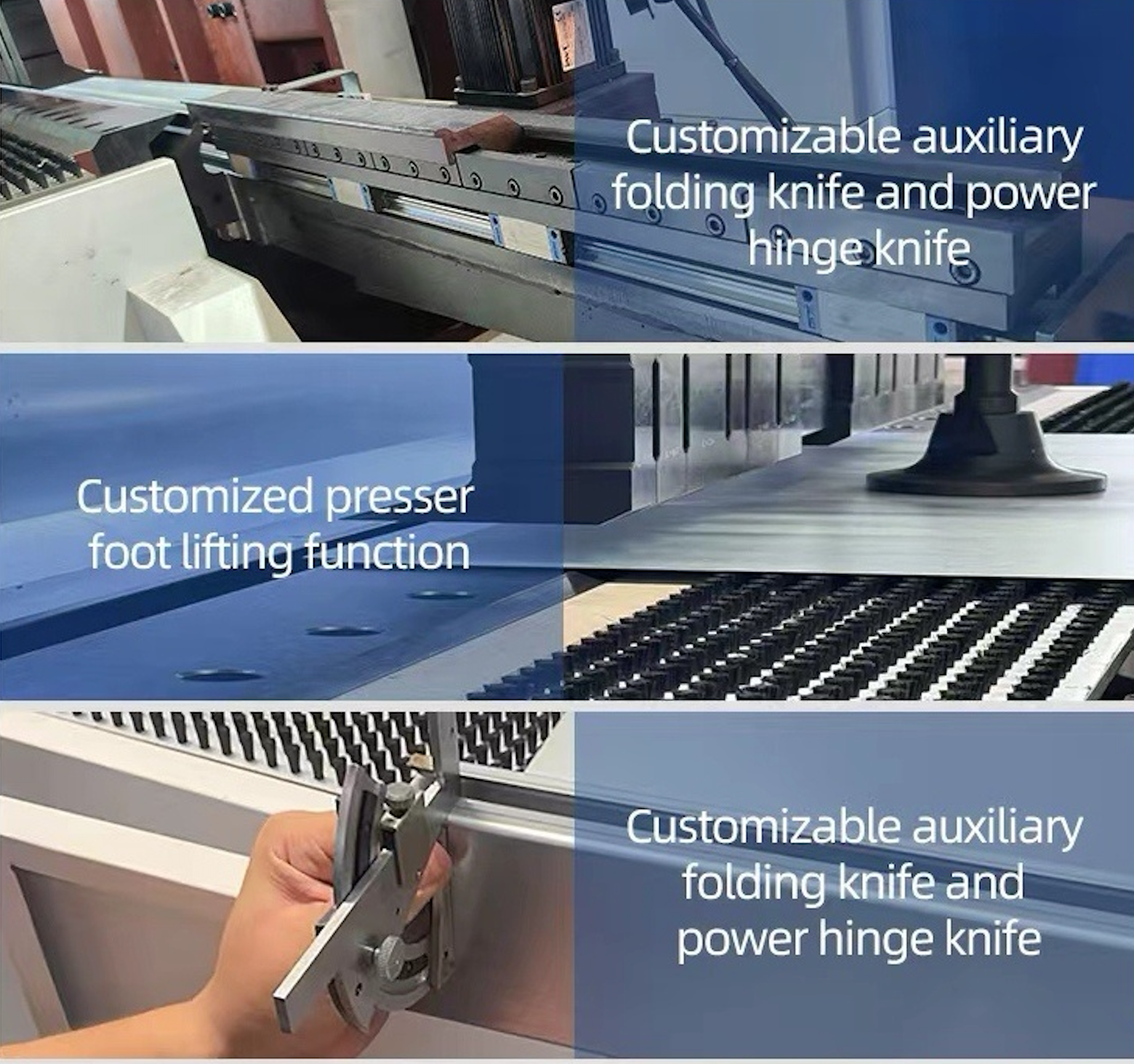

This versatile machine handles both prototyping and mass production with real-time monitoring and automatic correction for sheet springback and thickness deviation. The intuitive visual programming interface requires minimal training, while customizable auxiliary folding knives and power hinge knives accommodate special process requirements. Full servo drive ensures energy efficiency, supported by comprehensive after-sales service.
Core Functions
  • Thin plate bending: Up to 3.0mm cold plate processing capacity
  • Suction feeding: Vacuum adsorption system prevents surface damage
  • Small part processing: Minimum internal dimensions 70×200mm
  • Graphic programming: Input dimensions for automatic path generation
  • Automation interface: Compatible with loading/unloading equipment
  • Quick-change chuck: Rapid replacement for enhanced efficiency

Technical Parameters

ModelHC-2000HC-2000P
Feeding structurePressure arm typePressure arm type
Minimum internal dimensions for quadrilateral forming180mmx280mm180mmx280mm
Bending height170mm(customizable)170mm(customizable)
Average powerAbout 2.3KWAbout 2.6KW
User operating environmentOperation system above Win7Operation system above Win7
Maximum bending thicknessCold plate 1.5mmCold plate 2.0mm
304 stainlesss steel 1.0mm304 stainlesss steel 1.5mm
Number of axles1313
Industrial Applications
This flexible bending center serves multiple industries including office supplies (filing cabinets, metal furniture), kitchen equipment manufacturing (stainless steel components), refrigeration equipment production, electrical enclosure fabrication, medical device manufacturing, laboratory equipment, metal doors, architectural decoration, environmental protection equipment, and general industrial manufacturing.
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Control System
The bending center employs a top-level CNC system integrated with motion control cards, featuring an intuitive human-machine interface with graphical programming support. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision. The motion control cards support 24-axis operation (expandable to 64 axes) using EtherCAT bus control for high-precision motion management.
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Operation Interface
Simple, easy-to-learn interface with excellent human-computer interaction capabilities.
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Machine Views
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision

Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision
Flexible Sheet Metal Automatic Bending Machine CNC Control ±0.1mm Precision

Shipping & Delivery
Standard configuration ships within 60 days. Equipment photos and test videos provided before shipment. Transportation insurance options available. Complete export documentation prepared for customs clearance.
Frequently Asked Questions
Can you arrange samples for me?
Yes, we provide free samples according to customer requirements.
What is the warranty period for the machine?
The warranty period is one year with lifetime maintenance and upgrade services provided after warranty.
What is the MOQ of the machine?
Minimum order quantity is 1 set.
Are all the machines standard?
No, customization is available. We manufacture non-standard machines according to customer requirements.
What products can your machines produce?
Applications include file cabinetry, aluminum veneer walls, stainless steel kitchenware, refrigeration equipment, chassis and cabinets, laboratory construction, metal doors, and more.
What types of sheet materials can your machine bend?
Carbon sheet, aluminum sheet, stainless sheet, and galvanized sheet are available.
