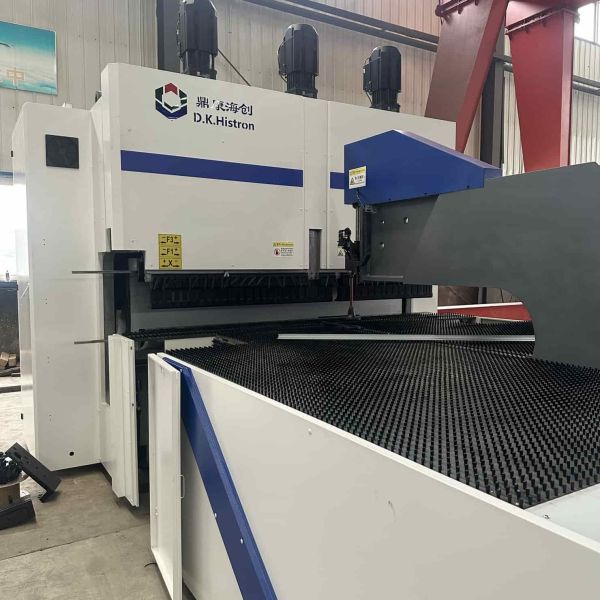

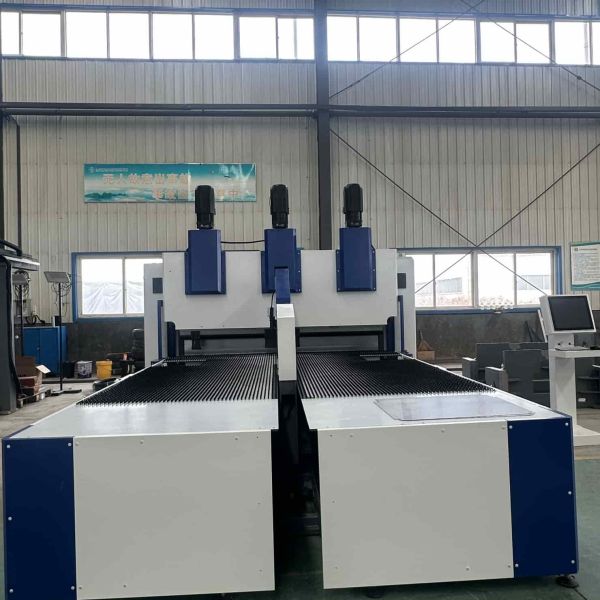

Advanced metal sheet edge folding system with fully automatic motor control panel for precision metal sheet forming applications. Designed for electrical cabinets, file cabinets, metal doors, refrigeration equipment, and various equipment industries.

• High-strength Q235B/Q335B welded frame ensures stability under high-tonnage impact
• Double L-shaped guide positioning with front material pushing improves forming accuracy
• Automatic lubrication system with oil shortage alarm reduces maintenance frequency
• Quick-clamp quick-release tool change with reinforced C-axis rotation improves changeover efficiency
• Self-developed control system ensures precision and reliability

• Automatic feeding positioning: Pressure arm clamping with precise feeding and correct positioning
• Multi-axis linkage control: 13-axis synchronized coordination
• Graphical error detection programming: Input dimensions, auto-programming with result preview
• Cloud operation interface: Real-time equipment status monitoring
• Automated production line interface: Connectable to loading/unloading robots
• Partial load visualization: Real-time force display for timely adjustment
• Self-diagnosis function: Reduces maintenance downtime

Check lubricant level before startup. Power on and enter the control system main control interface. Input workpiece dimensions in the graphic programming interface. The system automatically generates bending paths and displays forming preview. Confirm correctness and start automatic processing. Monitor partial load display during processing. Remove workpiece and inspect quality after completion.

The bending center control system employs a top-level computer numerical control (CNC) system integrated with motion control cards. The CNC system features an intuitive human-machine interface and supports graphical programming. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision in automated manufacturing. The motion control cards support 24-axis operation, with an expandable capacity up to 64 axes, and utilize EtherCAT bus control for high-precision motion control.

The interface is simple, easy to learn for new operators, with excellent human-computer interaction designed for efficient operation.

Widely used in file cabinetry, electric cabinet, aluminum veneer wall industry, stainless steel kitchenware industry, refrigeration equipment industry, chassis and cabinet industry, laboratory construction industry, metal door industry and related metal fabrication sectors.

Typically processes carbon sheet, aluminum sheet, stainless steel sheet, and galvanized sheet materials. Suitable thickness varies by material type.

Delivery time: 40 working days after deposit confirmation.

Transportation methods: Sea freight or land transport available, handled by professional freight companies.

Quality assurance: Full function testing conducted before shipment.

Export documents: Commercial invoice, packing list, certificate of origin, etc.
