Specifications
Certification :
ISO 9001, CE,
Beam Length :
2300mm / 2500mm / 2700mm
Supply Ability :
6000 Sets per Month
Surface Finish :
Electrostatic Powder Coated
Material :
Structural Steel Q235B
Frame Bracing :
Diagonal + Horizontal
Model Number :
SPR-2500I
Price :
USD 40-80 / Set
Packaging Details :
Steel pallet base, weather-resistant stretch film, reinforced export carton with edge protectors
Beam Size :
120 x 50 x 1.5mm
Color :
Blue / Orange / RAL Customized
MOQ :
10 Sets
Upright Size :
90 x 70 x 2.0mm
Delivery Time :
7-18 working days after deposit
Place of Origin :
China
Capacity Per Level :
2500kg
Frame Depth :
1100mm
Brand Name :
Peter
Payment Terms :
T/T,L/C,Western Union,PayPal
Description

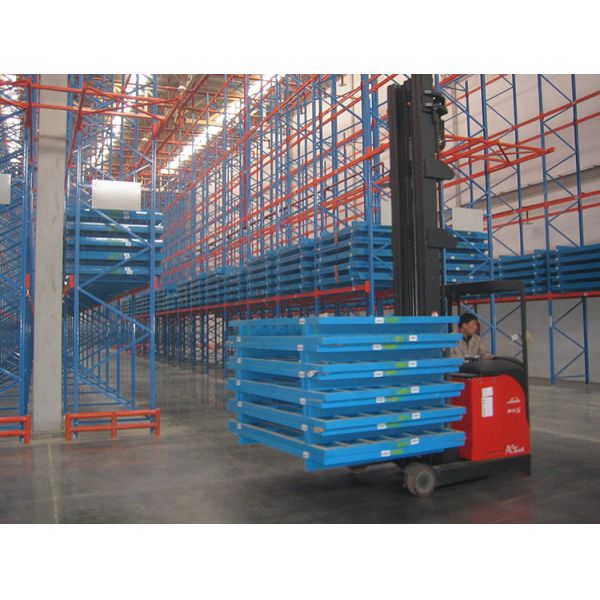

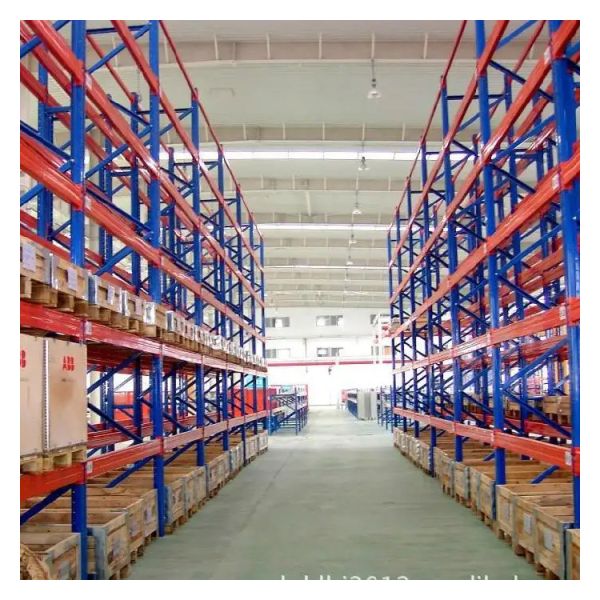

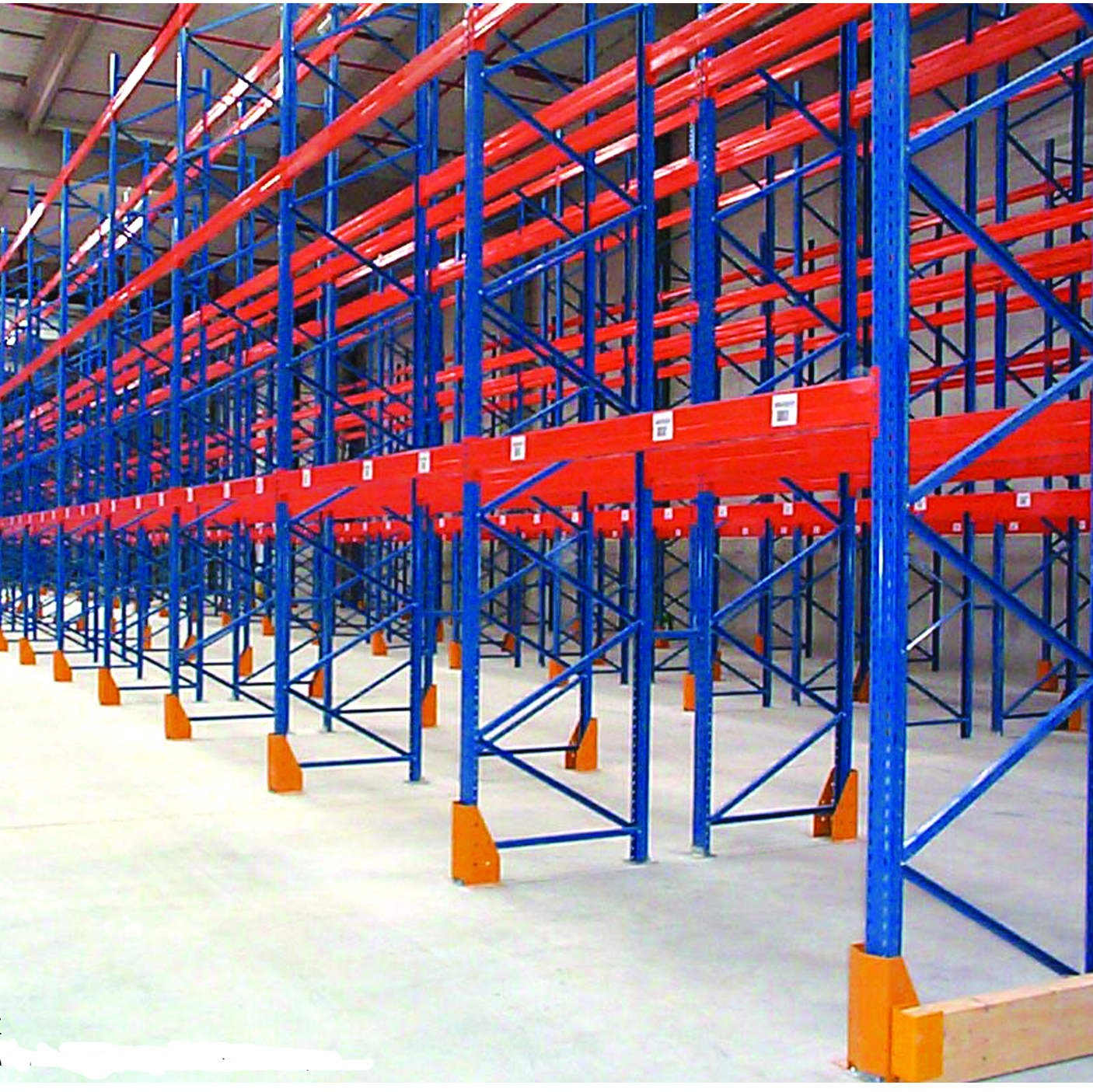

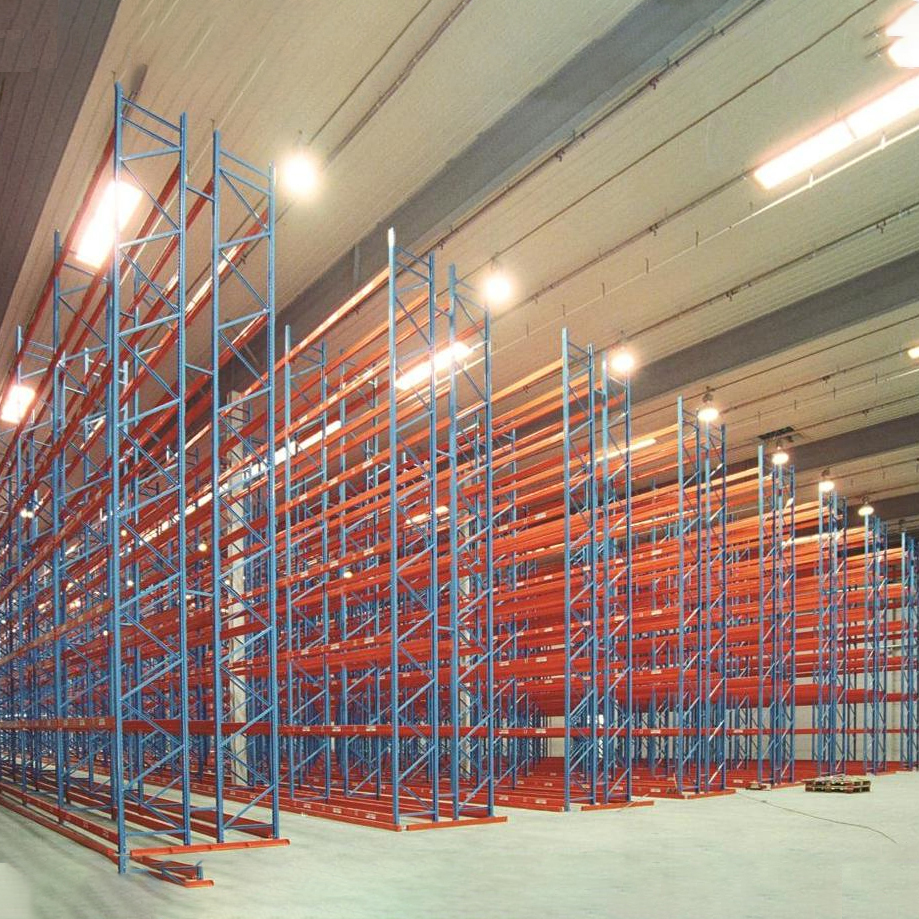

Industrial Pallet Storage Rack Selective Warehouse Shelving System

WNRLN delivers this rugged Industrial Pallet Storage Rack built for the toughest warehouse environments. Combining Cost Effective Warehouse Selective Pallet Rack economics with industrial-grade durability, this Pallet Storage Rack system features structural steel frames with diagonal and horizontal bracing for superior stability in high-traffic operations.

Industrial Pallet Storage Rack Selective Warehouse Shelving Cost Effective 2500kg Steel Frame System

Industrial Pallet Storage Rack Selective Warehouse Shelving Cost Effective 2500kg Steel Frame System

Industrial Pallet Storage Rack Selective Warehouse Shelving Cost Effective 2500kg Steel Frame System

Industrial Pallet Storage Rack Selective Warehouse Shelving Cost Effective 2500kg Steel Frame System

Industrial Pallet Storage Rack Selective Warehouse Shelving Cost Effective 2500kg Steel Frame System

Industrial Pallet Storage Rack Selective Warehouse Shelving Cost Effective 2500kg Steel Frame System

Industrial Pallet Storage Rack Selective Warehouse Shelving Cost Effective 2500kg Steel Frame System

Industrial Pallet Storage Rack Selective Warehouse Shelving Cost Effective 2500kg Steel Frame System

Key Features

  • Industrial Grade Frame Bracing: Full diagonal and horizontal bracing on every upright frame ensures maximum lateral stability, essential for warehouses operating multiple forklifts simultaneously or in seismic zones.
  • 2500kg Industrial Capacity: Robust 90x70mm uprights with 2.0mm wall thickness paired with 120x50mm box beams deliver consistent 2500kg per level performance under continuous industrial use.
  • Cost Effective Ownership: Designed for low total cost of ownership with durable powder coated finish that resists scratches, UV degradation, and warehouse chemical exposure, minimizing maintenance costs over the rack lifespan.
  • Reinforced Footplates: Heavy-gauge base plates with anchor bolt holes ensure secure floor mounting, distributing load evenly and preventing frame deformation even under impact from forklift contact.

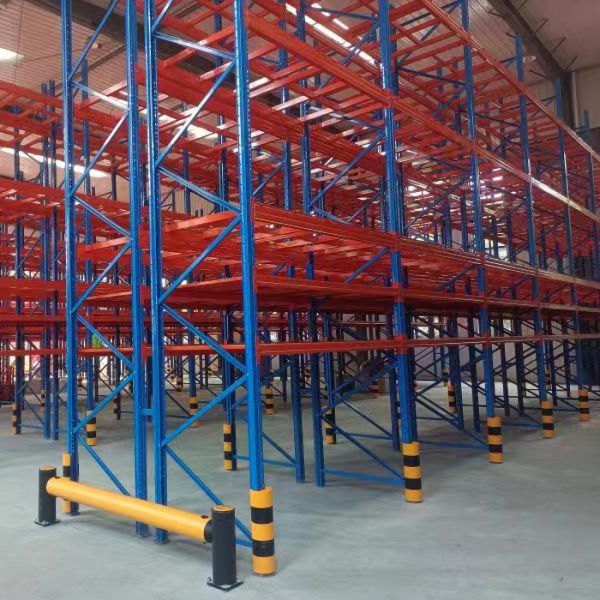

  • Column Protector Compatible: Upright frames are designed to accept bolt-on column protectors at floor level, adding an extra layer of impact protection in high-traffic aisles.

Technical Specifications

Frame Depth 1100mm
Beam Length Options 2300mm / 2500mm / 2700mm
Capacity Per Level 2500kg
Upright Profile 90 x 70 x 2.0mm
Beam Profile 120 x 50 x 1.5mm Box Type
Material Structural Steel Q235B
Surface Finish Electrostatic Powder Coated
Frame Bracing Diagonal + Horizontal
Available Colors Blue / Orange / RAL Customized

Applications

Engineered for heavy industrial environments including automotive parts warehouses, building materials distribution centers, chemical drum storage facilities, and high-intensity 3PL operations where reliability and continuous heavy use are non-negotiable.

Equip your warehouse with Industrial Pallet Storage Rack built to last. Contact WNRLN today for a comprehensive warehouse assessment and competitive factory quotation.
