Specifications
Load Capacity Per Bay :
9000kg
Upright Size :
90x70x2.0mm
MOQ :
10 Sets
Payment Terms :
T/T,L/C,Western Union
Surface Treatment :
Electrostatic Powder Coated
Beam Size :
120x50x1.5mm
Model Number :
SPR-2700W-3T
Certification :
ISO 9001:2015, CE
Load Capacity Per Level :
3000kg
Material :
Q235B Structural Steel
Packaging Details :
Steel pallet with plastic wrap, export-grade plywood case with moisture-proof membrane
Number of Levels :
Customizable (2-6 Levels)
Delivery Time :
7-15 working days
Beam Length :
2700mm
Place of Origin :
Hebei, China
Color :
Blue RAL 5015 / Orange RAL 2004
Brand Name :
WR Steel Rack
Price :
USD 45-85 / Set
Frame Depth :
1100mm
Supply Ability :
5000 Sets per Month
Description

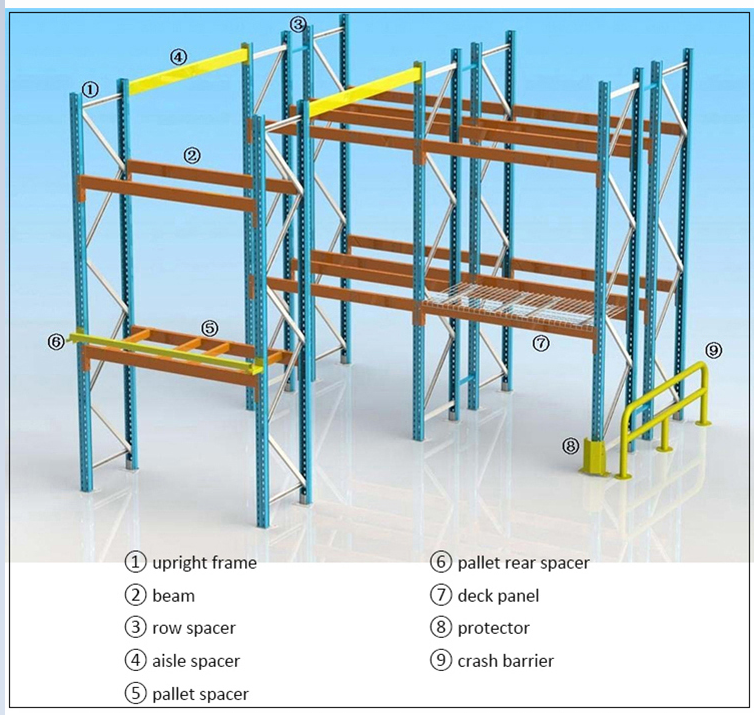

Selective Pallet Rack - Warehouse Racks Storage Solution

Our Selective Pallet Rack is a versatile warehouse racks system designed for efficient pallet storage and retrieval. With 100% selectivity, every pallet is directly accessible without moving others, making it the most widely used racking solution in warehouses, distribution centers, and logistics hubs worldwide.

Key Features

  • High Load Capacity: Each beam level supports up to 3000kg, with a total bay capacity of 9000kg across three levels
  • Adjustable Beam Levels: Beam heights can be adjusted in 75mm increments for flexible storage configuration
  • Durable Construction: Made from Q235B structural steel with electrostatic powder-coated finish for long-term corrosion resistance
  • Modular Design: Upright frames and beams are bolted together, allowing easy expansion or reconfiguration
  • Forklift Compatible: Standard frame depth of 1100mm provides optimal clearance for forklift operations

Technical Specifications

Frame Depth 1100mm
Upright Size 90×70×2.0mm
Beam Size 120×50×1.5mm
Beam Length 2700mm
Load Capacity Per Level 3000kg
Material Q235B Structural Steel
Surface Treatment Electrostatic Powder Coated (Blue/Orange)

Applications

Ideal for food & beverage warehouses, cold storage facilities, retail distribution centers, manufacturing plants, and third-party logistics providers.

Why Choose Our Warehouse Racks?

As a professional manufacturer, we offer customizable dimensions, competitive factory pricing, fast delivery, and comprehensive after-sales support. Contact us today for a tailored warehouse racks solution.
