Product performance description

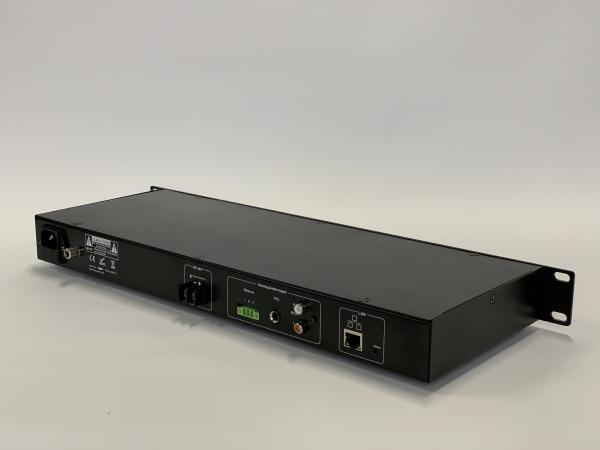

The IP public address system network audio Encoder is the main equipment of the IP network PA system. It is built-in Encoder which can Encode the analog audio signal into digital and transfer on network.
The IP public address (PA) system key equipment to set up the IP PA sound system, it is convenient to set up sound over network system as one IP Encoder, With this Encoder can easy connect the analog microphone or local DVD or FM into the network.
Support to encode analog signal to transfer on IP network .
Build in SD card player and can transfer the audio over internet.
It is high capacity but cost-effective multiple room network sound system.
The system could be set up over existing network, non dedicated network is needed.
System capacity of more than 500 adapters online simultaneously.
Support LAN/WAN and Internet network.
Network data delay of less than 10 milliseconds.
| Model | IP-900EC |
| Description | IP Network Audio Encoder |
| Power Supply | AC220V or 110V, 50-60Hz |
| Power Consumption | 5W |
| Network Protocol | TCP, UDP, ARP, ICMP, IGMP |
| Network Speed | 10/100Mbps |
| Audio Sampling | 8KHz-48KHz, 16 bits |
| Transmission Rate | 8Kbps to 320Kbps |
| S/N Ratio | ≥90dB |
| Frequency Response | 20Hz-20KHz |
| Data Delay | <20 milliseconds |
| Connector | One RJ45 port for LAN, one aux in, one microphone input, SD port |
| Dimensions | 483(W)×256(D)×44(H)mm |
| Weight | 2.5kg |
