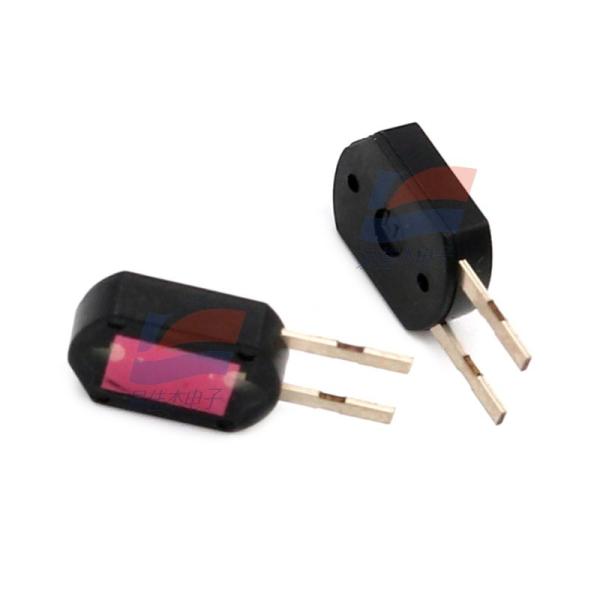

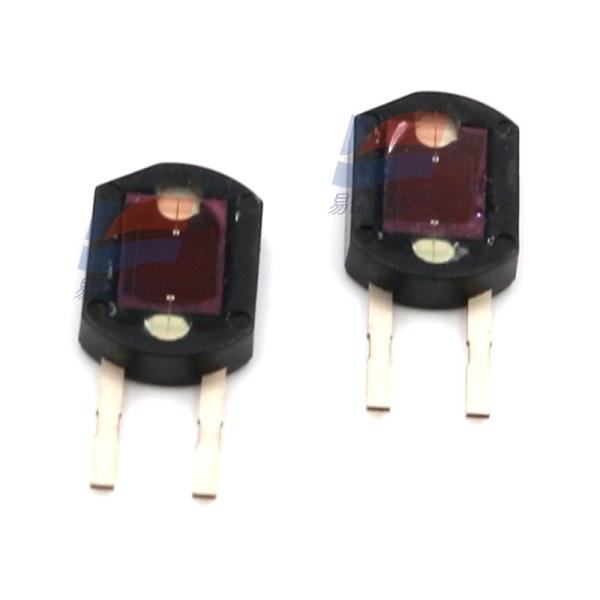

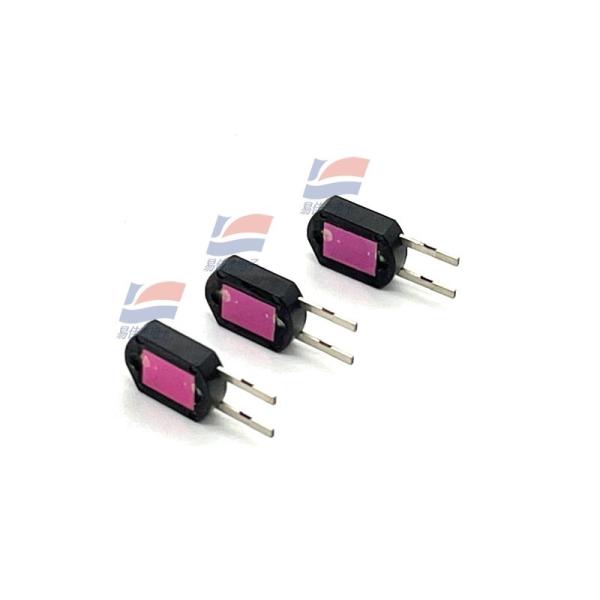

Silicon Pin Photodiode S6429-01 S6428-01 S6430-01 White Balance Adjustment
Silicon Pin Photodiode S6429-01 S6428-01 S6430-01 White Balance Adjustment
Silicon Pin Photodiode S6429-01 S6428-01 S6430-01 White Balance Adjustment
Silicon Pin Photodiode S6429-01 S6428-01 S6430-01 White Balance Adjustment
Silicon Pin Photodiode S6429-01 S6428-01 S6430-01 White Balance Adjustment
Silicon Pin Photodiode S6429-01 S6428-01 S6430-01 White Balance Adjustment
Specifications
Model Number :
S6428-01 S6429-01 S6430-01
Place of Origin :
Japan
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Encapsulation material :
plastics
Light-receiving side :
2.8 × 2.4 mm
Sensitivity wavelength range :
480 to 600 nm
Dark current (max) :
0.02 nA
Junction capacitance :
200 pF
Rise time :
0.5 μs
Description

Silicon photodiodes S6429-01

RGB color sensor

The S6429-01 is a color sensor for the detection of monochromatic green light (λp = 540 nm) alone.

Features
-Plastic package (6 × 8 mm)
-Spectral response range: 480 to 600 nm (λp = 540 nm)
-Insensitive to near-infrared bands
-High sensitivity: 0.27 A/W typical (λ = λp)
-Low dark current

Silicon photodiodes S6428-01

RGB color sensor

The S6428-01 is a color sensor for the detection of monochromatic blue light (λp = 460 nm) alone.

Features
- Plastic package (6 × 8 mm)
- Spectral response range: 400 to 540 nm (λp = 460 nm)
- Insensitive to the near-infrared band
- High sensitivity: 0.22 A/W typical (λ = λp)
- Low dark current

Encapsulation material plastics
Light-receiving side 2.8 × 2.4 mm
Sensitivity wavelength range 480 to 600 nm
Dark current (max) 0.02 nA

Silicon photodiodes S6430-01

RGB color sensor

The S6430-01 is a color sensor for the detection of monochromatic red light (λp = 660 nm) alone.

Features
- Plastic package (6 × 8 mm)
- Spectral response range: 590 to 720 nm (λp = 660 nm)
- Insensitive to the near-infrared band
- High sensitivity: 0.45 A/W typical (λ = λp)
- Low dark current

Junction capacitance 200 pF
Rise time 0.5 μs
remark Applies to red
PIO Measurement Conditions (Product Units) Typical Ta = 25°C, unless otherwise stated
