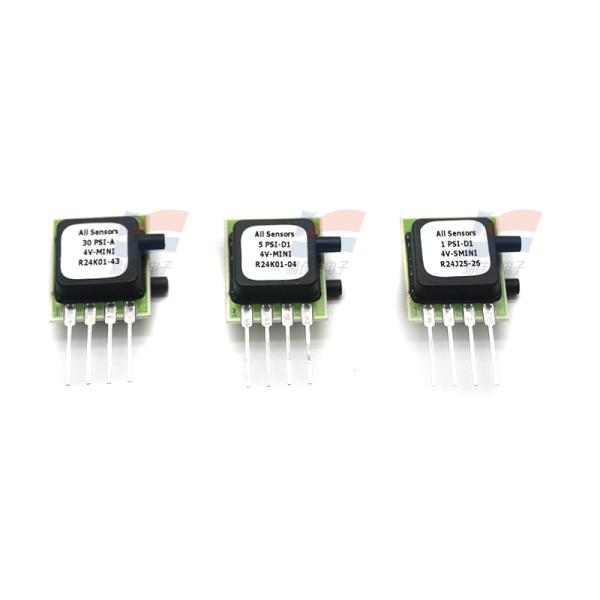

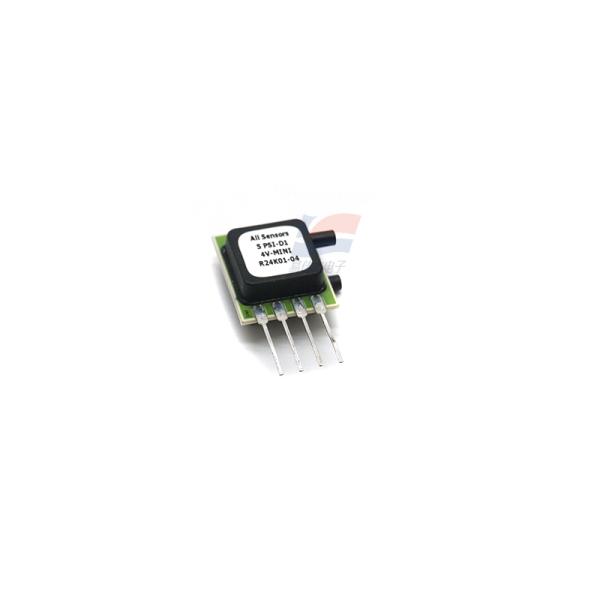

YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control
Specifications
Brand Name :
YJJ
Model Number :
5 PSI-D1-4V-MINI
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500
Delivery Time :
5 to 8 working days
Packaging Details :
Palletized
Working Pressure :
5 psi
Accuracy :
0.25 %
Output Type :
Analog
Installation Style :
Through Hole
Port Type :
Dual Radial Barbless
Package :
Miniature
Description

Product Description:

YJJ 5 PSI-D1-4V-MINI Miniature Pressure Sensor 5 psi ±1.25Kpa Used For Environmental Monitoring And Control

Features:

Micro pressure sensor amplification line is based on the technologies developed in the pressure sensor industry over the years. This model provides a ratio of 4 volt output with characteristic output. The sensor housing is specially designed to reduce parasitic stress and strain caused by the packaging. In addition, this sensor adopts silicon, micro-mechanical, stress concentration enhancement structure to provide a very linear output for measuring pressure. These calibrated and temperature-compensated sensors offer precise and stable outputs over a wide temperature range. Each sensor is internally compensated using ASIC compensation technology. This series is suitable for non-corrosive, non-ion working fluids, such as air, dry gas, etc. Within the power voltage range of 4.5 to 5.5 volts, the output of the device is proportional to the power voltage.

Product Type: Board Interface Pressure Sensor RoHS:

Pressure Type: Differential

Working Pressure: 5 psi

Accuracy: 0.25 %

Output Type: Analog

Installation Style: Through Hole

Port Type: Dual Radial Barbless

Package / Housing: Miniature

Minimum Operating Temperature: -25 °C

Maximum Operating Temperature: +85 °C

Series: SAMP

Trademark: Amphenol All Sensors

Port Size: 0.08 in

Product Type: Board Mount Pressure Sensors 10

Subcategory: Sensors

Maximum power supply voltage: 5 V

Unit weight: 7.396 g

Specifications:

Minimum Operating Temperature -25 °C
Maximum Operating Temperature +85 °C
Series SAMP
Trademark Amphenol All Sensors
