LHI778 Infrared Thermoelectric Sensor For Human - body Movement Detectors
LHI778 Infrared Thermoelectric Sensor For Human - body Movement Detectors
LHI778 Infrared Thermoelectric Sensor For Human - body Movement Detectors
LHI778 Infrared Thermoelectric Sensor For Human - body Movement Detectors
LHI778 Infrared Thermoelectric Sensor For Human - body Movement Detectors
LHI778 Infrared Thermoelectric Sensor For Human - body Movement Detectors
LHI778 Infrared Thermoelectric Sensor For Human - body Movement Detectors
LHI778 Infrared Thermoelectric Sensor For Human - body Movement Detectors
Specifications
Model Number :
LHI778
Place of Origin :
Germany
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Minimum Responsivity (Rmin) :
3.3
Typical Responsivity (Rtyp) :
4.2
Maximum Match (Mmax) :
10
Maximum Noise (Nmax) :
50
Typical Noise (Ntyp) :
20
Detectivity (D*) :
20
Description

LHI778 Infrared Thermoelectric Sensor For Human - body Movement Detectors

Product Features:

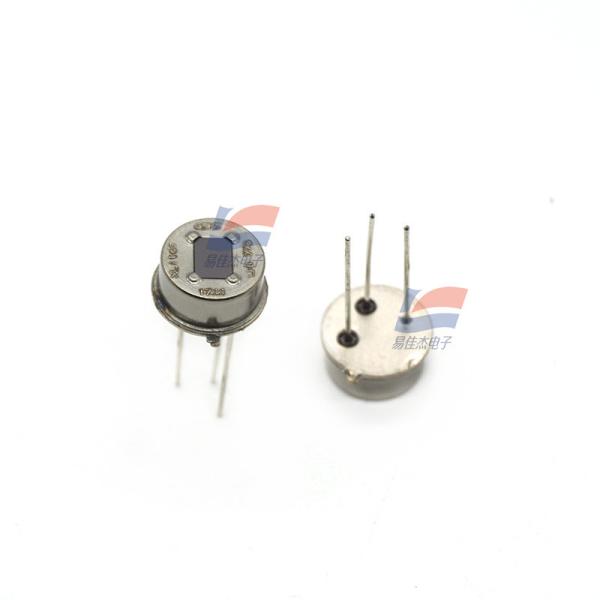

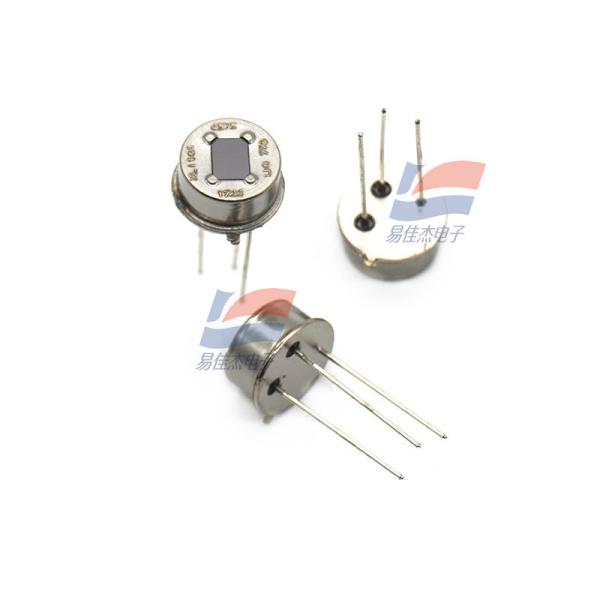

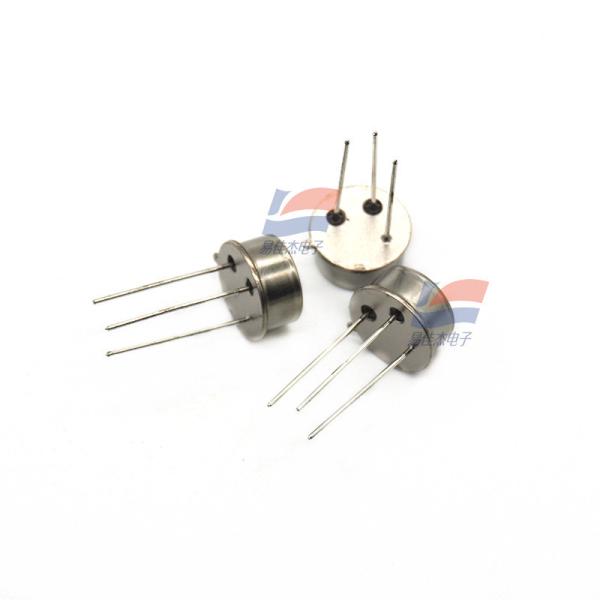

  • It has a TO - 5 metal housing and different window sizes are available6. The LHI778 is designed to meet low - cost requirements and is equipped with a small - sized optical window.
  • It is a dual - element detector, which includes a dual - element pyro - electric ceramic element with a FET in source - follower connection.
  • It provides high responsivity, excellent common - mode performance (match), and has low noise in both steady - state and temperature - change conditions.
  • It has improved EMI protection and reduced white - light immunity (WLI).

Technical Parameters:

  • Minimum Responsivity (Rmin): 3.3
  • Typical Responsivity (Rtyp): 4.2
  • Maximum Match (Mmax): 10
  • Maximum Noise (Nmax): 50
  • Typical Noise (Ntyp): 20
  • Detectivity (D*): 20
  • Horizontal Field of View: 71°
  • Vertical Field of View: 71°
  • Source Voltage (Operating Voltage): 0.2 - 1.5V

Application Scope:

It is suitable for human - body movement detectors, passive infrared anti - theft alarms, automatic light switches, intrusion alarms,

high - end motion sensors, etc.

Packaging and Certification:

  • Packaging: Usually in tray packaging.
  • Certification: CE, RoHS.

Parameter

Value

Unit
Element Size 2×1 mm²
Sub - strate Material Silicon -
Responsivity ≥3300 V/W
Output Balance ＜10 %
Noise ≤50 μVpp
Detectivity (D*) ≥5×10⁷ cmHz½/W
Source Voltage 0.2 - 1.5 V
Operating Voltage 2 - 15 V
Output Impedance ≤10 kΩ
Operating Current 8.5 - 24 μA
Operating Temperature - 40 - +85 ℃
