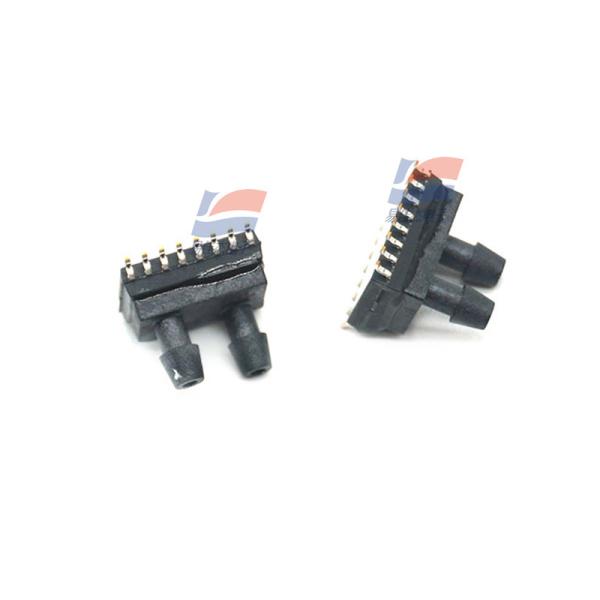

SM7391-BCE-S-500-000 Digital Differential Pressure Sensors For Fire Protection Residual Pressure Monitoring
SM7391-BCE-S-500-000 Digital Differential Pressure Sensors For Fire Protection Residual Pressure Monitoring
SM7391-BCE-S-500-000 Digital Differential Pressure Sensors For Fire Protection Residual Pressure Monitoring
SM7391-BCE-S-500-000 Digital Differential Pressure Sensors For Fire Protection Residual Pressure Monitoring
Specifications
Model Number :
SM7391-BCE-S-500-000
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, T/T, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Pressure Range :
-500 to 500 Pa
Proof Pressure Range :
1.5 psi
Accuracy :
±1% FS
Supply Voltage :
3 - 5.25 V
Description

SM7391-BCE-S-500-000 Digital Differential Pressure Sensors For Fire Protection Residual Pressure Monitoring

Product features:

  • It is a differential - pressure sensor, which is suitable for the differential - pressure detection requirements of residual pressure monitoring.
  • The pressure range of - 500 to 500 Pa and the resolution of 16 - bit can fully meet the detection requirements of relevant national standards.
  • With a high - speed measurement update rate of 2000 times per second, it can provide fast and accurate measurement results.
  • The digital output is connected to the main control through I2C, which is easy to develop and has low requirements on the resources of the main - control MCU.
  • It is powered by 3.3V, with low power consumption, which is very suitable for digital - circuit control.

Application field:

  • It is mainly used in fire - fighting residual pressure monitoring controllers to measure the air pressure difference on both sides of fire - fighting doors, ensuring that the pressure difference does not exceed the specified value and facilitating the normal opening of fire - fighting doors and the discharge of smoke and toxic gases.

Pressure Range - 500 to 500Pa
Proof Pressure Range 1.5 psi
Accuracy ±1% FS
Supply Voltage 3 - 5.25 V
Output Interface I2C
Resolution 16 - bit
Operating Temperature Range - 20 to 85°C
Package/Case SOIC - 16 - 300mil
Mounting Type SMD/SMT
RoHS Status RoHS Compliant
