FSS1500NST FSS1500NGT Pressure Sensor For Infusion Pumps Portable Non-inverting Pressure Pumps
FSS1500NST FSS1500NGT Pressure Sensor For Infusion Pumps Portable Non-inverting Pressure Pumps
Specifications
Model Number :
FSS1500NST FSS1500NGT
Place of Origin :
USA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Crystal Structure :
Single - crystal
Manufacturing Process :
Integrated
Output Signal Type :
Digital
Operating Pressure Range :
0 bar to 4 bar
Accuracy :
±0.25%
Hysteresis :
±2%F.S.
Description

FSS1500NST FSS1500NGT Pressure Sensor For Infusion Pumps Portable Non-inverting Pressure Pumps

Operational Features:

  • Reliability:
    • 20 million operations at 25°C (77°F).
    • 20 million operations in MCTF (Mean Cycles To Failure) reliability tests at 50°C (122°F).
  • ESD Resistance: High ESD protection up to 8kV.

Working Principle:

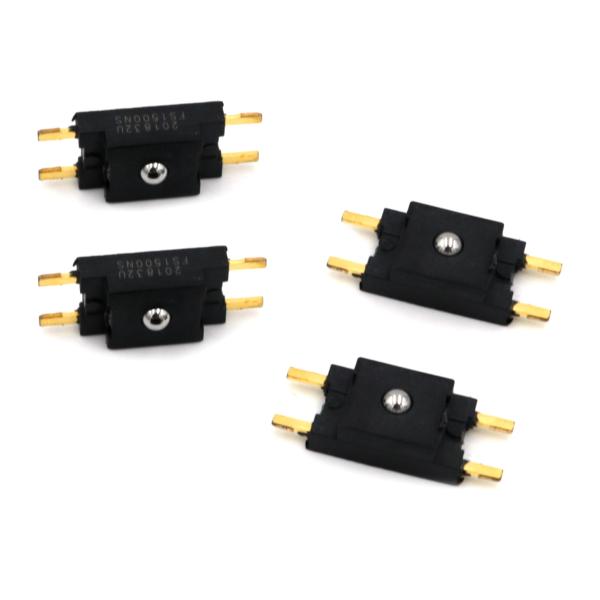

The sensor features a stainless steel ball exterior and a silicon sensing chip inside. When the steel ball is pressed and contacts the internal silicon sensing chip, the silicon piezoresistive element bends under pressure, causing its resistance to change. The resistance changes in the bridge circuit generate a corresponding voltage output signal.

Application Fields:

  • Medical Equipment: Infusion pumps, portable non-inverting pressure pumps, blockage detection, hemodialysis machines, etc.
  • Industrial Applications: Load and pressure sensing, variable tension control, analog robotic end-effectors, wire welding equipment, etc.

Hysteresis ±2%F.S.
Repeatability ±2%F.S.
Sensitivity 14 mV/g8
Resolution 12 - bit
Operating Supply Voltage 5V
Maximum Supply Voltage (DC) 12V8
Operating Temperature Range - 40℃ to 85℃
Package/Case SIP (Single In - line Package)
Mounting Style Through - Hole
Protection Class Class 1
Maximum Reflow Temperature 260℃
Over - pressure Tolerance Up to 4.5/5.5 kg
Actuator Type Ball2
Actuator Size Round, 1.98 mm diameter
