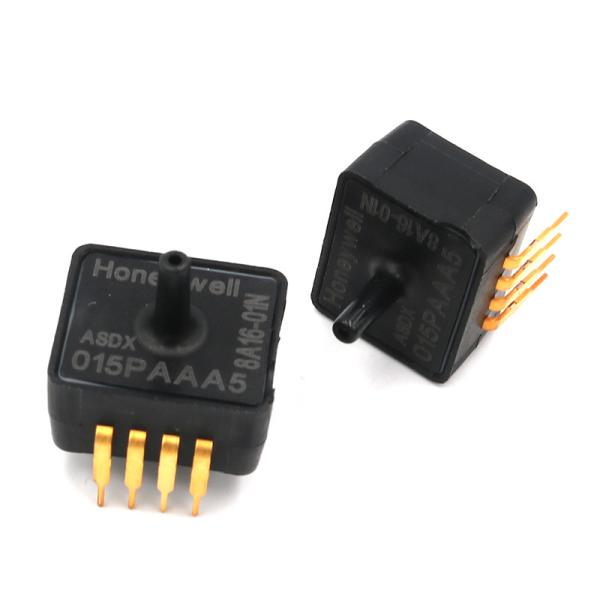

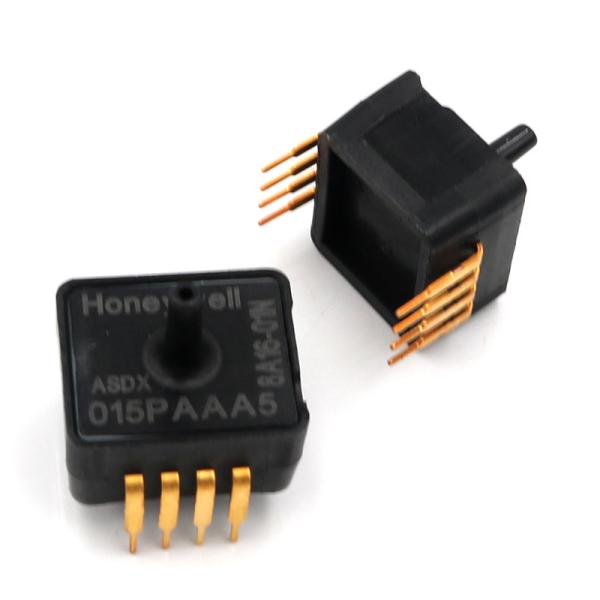

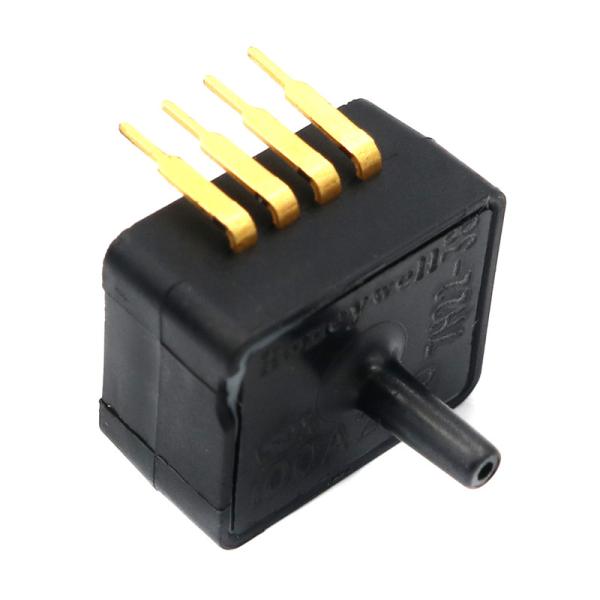

ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics
Specifications
Model Number :
ASDXACX015PAAA5
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Working Pressure :
15 PSI (103.42 kPa)
Maximum Pressure :
30 PSI (206.84 kPa)
Output Range :
0.5V–4.5V
Supply Voltage :
4.75V–5.25V
Nominal Supply Current :
2.5 mA
Maximum Supply Current :
3.5 mA
Description

ASDXACX015PAAA5 Pressure Sensor For HVAC Systems Medical Devices Consumer Electronics

Product Features:

  • High Precision Sensing:Offers ±2% accuracy for reliable pressure measurement in critical systems.
  • Wide Pressure Range:Works within 15 PSI (103.42 kPa) operational pressure and withstands up to 30 PSI (206.84 kPa) for safety margins.
  • Analog Voltage Output:Provides 0.5V–4.5V proportional output, directly compatible with standard data acquisition systems.
  • Robust Temperature Performance:Operates stably from -20°C to 105°C, suitable for harsh industrial environments.
  • Fast Response:1 ms response time enables real-time monitoring of dynamic pressure changes.
  • Non-Barbed Port Design:Facilitates leak-free tubing connections for air and dry gas applications.
  • ISO 9001 Compliance:Ensures consistent quality and reliability in manufacturing.

Product Applications:

  • Industrial Automation:Monitors pneumatic pressure in conveyor systems, robotic arms, and hydraulic equipment.
  • HVAC Systems:Measures air pressure in ducts for ventilation control and filter clog detection.
  • Medical Devices:Used in respiratory machines, dialysis equipment, and blood pressure monitoring systems.
  • Aerospace & Automotive:Senses fuel pressure in engines, cabin pressure, and airbag inflation systems.
  • Consumer Electronics:Integrates into smart home devices for gas leak detection or air quality monitoring.
  • Testing & Calibration:Serves as a reference sensor in pressure calibration labs and flow meter validation.

Package/Case 8 - DIP Module
Mounting Type Through Hole
Termination Type PC Pins
Pressure Range 15 PSI (103.42 kPa)
Maximum Pressure 30 PSI (206.84 kPa)
Output Type Analog Voltage
Output Range 0.5V - 4.5V
Supply Voltage 4.75V - 5.25V
Nominal Supply Current 2.5 mA
Maximum Supply Current 3.5 mA
Accuracy ±2%
Operating Temperature Range -20°C - 105°C
Temperature Compensation Range Not specified
Response Time 1 ms
Port Size Male, 0.09" (2.31 mm) Tube
Port Style Barbless
Measured Media Non - corrosive, non - ionic working fluids (e.g., air and dry gases)
Lead Welding Temperature(2s - 4s) 250°C
