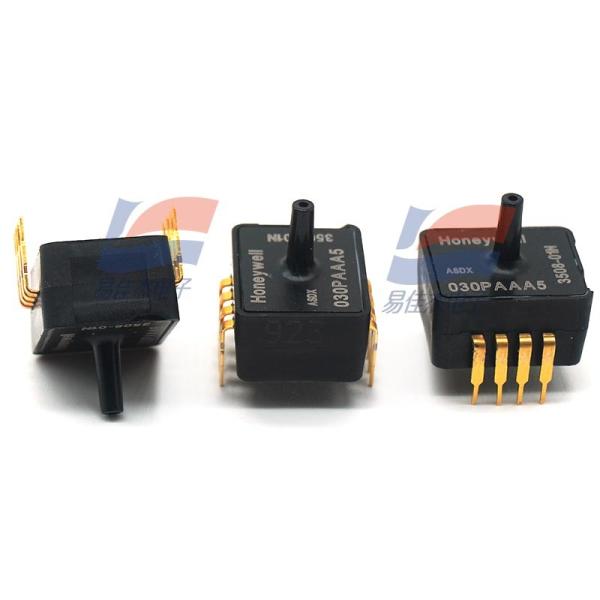

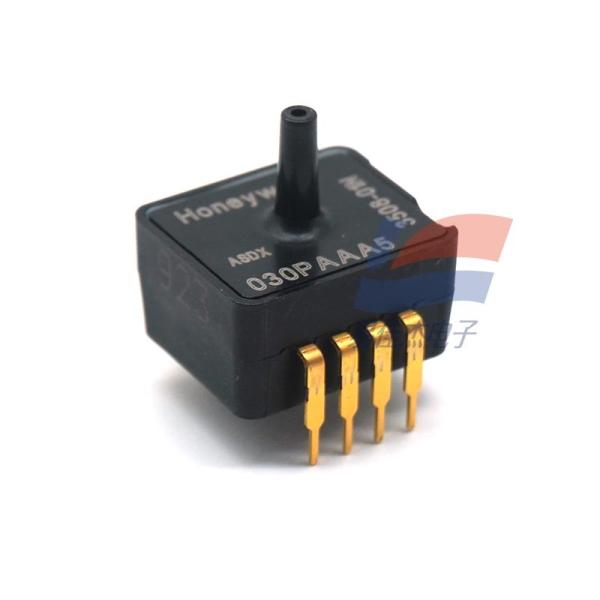

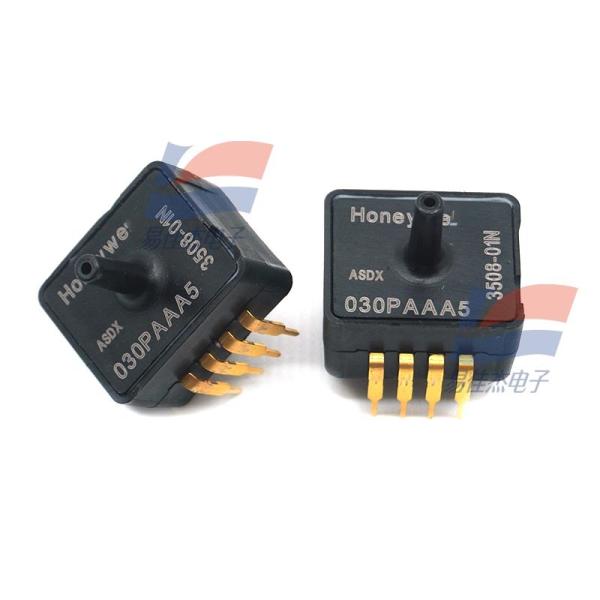

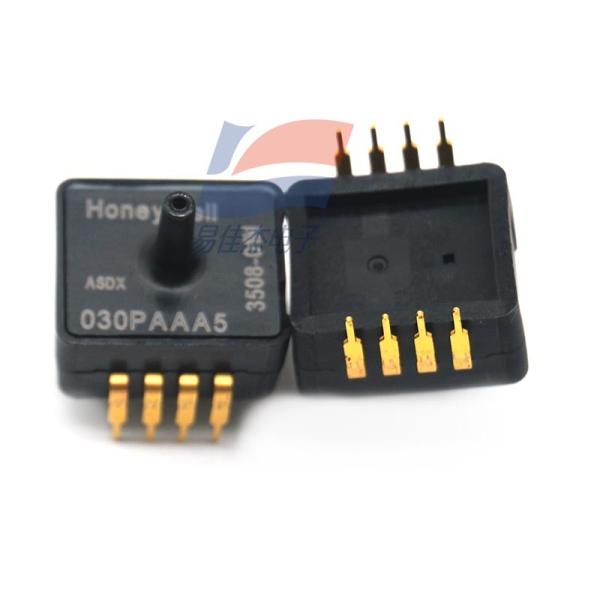

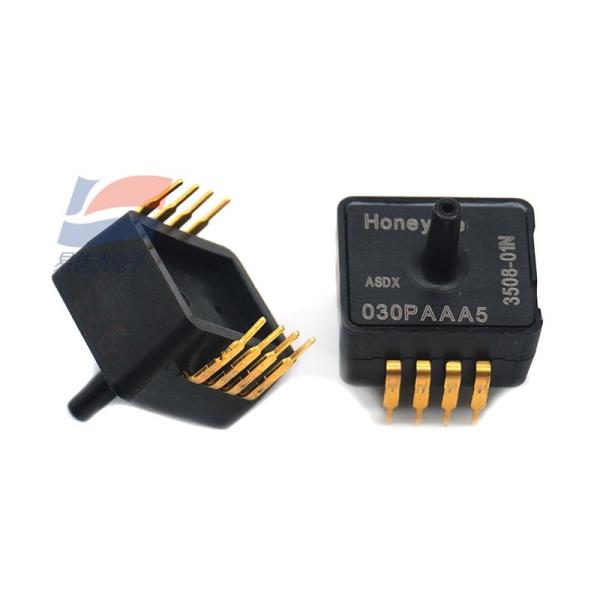

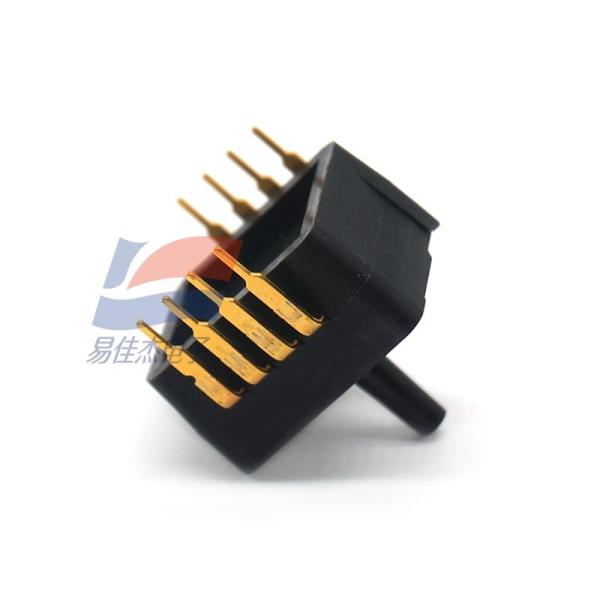

ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control
Specifications
Model Number :
ASDXACX030PAAA5
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Rated Voltage :
5V
Minimum Supply Voltage :
4.75V
Maximum Supply Voltage :
5.25V
Nominal Supply Current :
2.5 mA
Maximum Supply Current :
3.5 mA
Accuracy :
±0.25%
Description

ASDXACX030PAAA5 Pressure Sensor For Industrial Process Control

Product Applications:

  • Industrial Process Control:Monitoring pressure in pneumatic systems, air compressors, and fluid flow control.
  • HVAC Systems:Measuring air pressure in ducts for ventilation and filter blockage detection.
  • Medical Devices:Used in respiratory equipment, dialysis machines, and blood pressure monitoring systems.
  • Aerospace & Automotive:Pressure sensing in fuel systems, engine intake, and cabin pressure control.
  • Consumer Electronics:Integration into smart home devices for gas pressure safety monitoring.

Product Features:

  • High Accuracy:±0.25% precision with a total error band of ±2% FSS, ensuring reliable measurements.
  • Wide Temperature Range:Operates from -20°C to 105°C, suitable for harsh environmental conditions.
  • Analog Output:12-bit proportional analog signal directly compatible with microcontrollers and data acquisition systems.
  • Robust Construction:8-pin DIP package with through-hole mounting for easy integration and mechanical stability.
  • Non-corrosive Media Compatibility:Suitable for air, dry gases, and non-ionic fluids, expanding application scenarios.
  • RoHS Compliance:Meets environmental standards for global industrial use.
  • Fast Response:1 ms response time for real-time pressure monitoring in dynamic systems.

Package Type 8 - pin DIP(Dual In - line Package)
Mounting Style Through Hole
Pressure Range 0 psi to 30 psi(Approx. 0 to 206.85 kPa)
Maximum Pressure 60 psi(413.69 kPa)
Output Type Analog, Proportional 12 - bit Analog Output
Rated Voltage 5V
Minimum Supply Voltage 4.75V
Maximum Supply Voltage 5.25V
Nominal Supply Current 2.5 mA
Maximum Supply Current 3.5 mA
Accuracy ±0.25%
Total Error Band ±2% of Full Scale
Operating Temperature Range -20°C to 105°C
Temperature Compensation Range 0°C to 85°C
Response Time 1 ms
Port Style Barbless Axial Port
