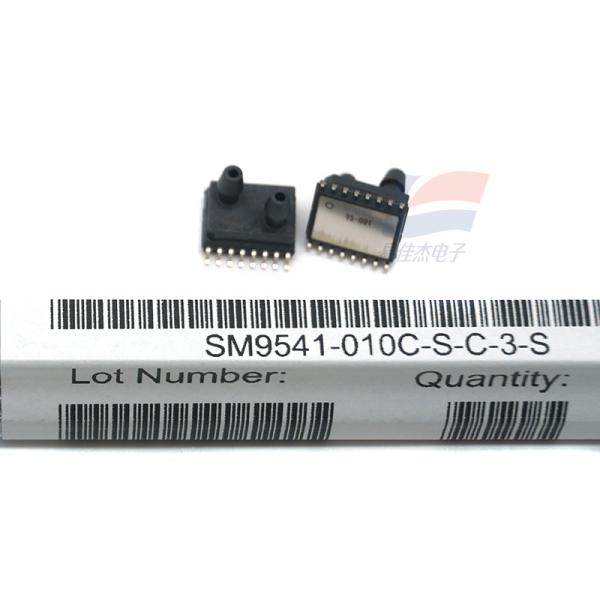

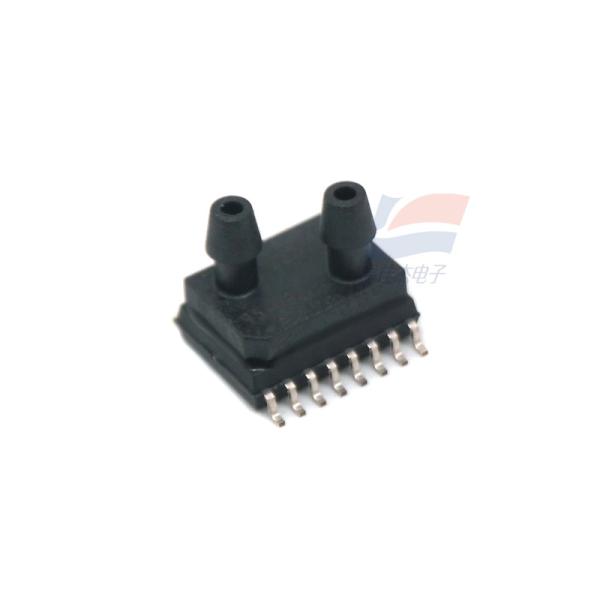

SM9541-010C-D-C-3-S Differential Pressure Low Pressure Sensor For Respiratory Equipment
SM9541-010C-D-C-3-S Differential Pressure Low Pressure Sensor For Respiratory Equipment
SM9541-010C-D-C-3-S Differential Pressure Low Pressure Sensor For Respiratory Equipment
SM9541-010C-D-C-3-S Differential Pressure Low Pressure Sensor For Respiratory Equipment
SM9541-010C-D-C-3-S Differential Pressure Low Pressure Sensor For Respiratory Equipment
SM9541-010C-D-C-3-S Differential Pressure Low Pressure Sensor For Respiratory Equipment
Specifications
Model Number :
SM9541-010C-D-C-3-S
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Accuracy :
±1% FS
Supply Voltage :
3 - 3.6 V
Resolution :
14 - bit
Compensated Temperature Range :
- 5 to 65 °C
Description

SM9541-010C-D-C-3-S Differential Pressure Low Pressure Sensor For Respiratory Equipment

  • Product Features:
    • It is a fully - digital pressure sensor with pressure calibration and temperature - compensation functions, which can provide high - precision measurement results5.
    • Adopting I2C digital interface, it is easy to connect to the main control of different platforms, and the wiring is simple3.
    • 14 - bit resolution can meet the needs of high - precision measurement7.
    • Insensitive to mounting orientation, with strong adaptability2.
    • Using JEDEC - standard SOIC - 16 package, it is suitable for automated assembly and can be directly installed on the standard printed circuit board7.
  • Application Fields:
    • Medical Field: It can be used in respiratory equipment, such as sleep apnea (CPAP, MPAP) equipment, ventilators/anesthesia equipment, etc.
    • Industrial Field: Applied to airflow measurement, pressure switches, gas flow instrumentation, liquid - level measurement, etc.
    • Other Fields: Can also be used in the monitoring of filter performance in ventilation systems, by measuring the pressure difference before and after the filter to judge its working condition.
Pressure Range -10-10
Maximum Operating Pressure 980.665 pa
Accuracy ±1% FS
Supply Voltage 3 - 3.6 v
Supply Current N/A
Output Interface I2C
Resolution 14 - bit
Compensated Temperature Range -5 – 65 °C
Operating Temperature Range -5 – 65 °C
Long - term Zero Shift <+2% FS over 10 years
Package/Case SOIC - 16

SM9541-010C-D-C-3-S Differential Pressure Low Pressure Sensor For Respiratory Equipment
