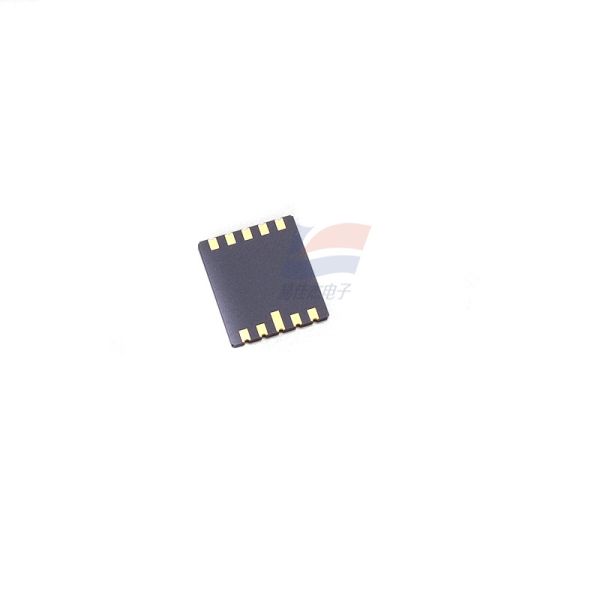

S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery
Specifications
Model Number :
S5981
Place of Origin :
Japan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Detector Type :
4 segment Si PIN photodiode array
Spectral Range :
320~1100 nm
Peak Wavelength :
960 nm (typ.)
Photosensitivity :
0.72 A/W
Cut Off Frequency :
20 MHz
Reverse Voltage :
30 V
Description

S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery

Applications:

  • Laser optical axis alignment for industrial processing and precision machinery.
  • Level meters in liquid/gas tanks for continuous level monitoring.
  • Pointing devices and optical encoders for motion tracking and position control.
  • Optical pickup systems for CD/DVD drives and barcode scanners.

Key Features:

  1. 4 Segment Array: Independent channels for position sensing with low crosstalk between elements.
  2. Large Active Area: 10×10 mm active region for high light collection efficiency.
  3. Surface Mount Ceramic Package: Thin (1.26 mm) and robust for automated assembly and harsh environments.
  4. High Photosensitivity: 0.72 A/W at 960 nm (peak wavelength) for sensitive IR detection.
  5. Wide Spectral Range: 320~1100 nm covers UV to near IR, suitable for diverse light sources.
Detector Type 4 segment Si PIN photodiode array
Spectral Range 320–1100 nm
Peak Wavelength 960 nm (typ.)
Photosensitivity 0.72 A/W (λ=960 nm, typ.)
Active Area 10×10 mm (total, 4 segments)
Dark Current 0.6–4 nA (Vr=10 V, Ta=25°C)
Terminal Capacitance 35 pF (Vr=10 V, f=1 MHz, typ.)
Cut Off Frequency 20 MHz (typ.)
Reverse Voltage 30 V (max.)
Package Ceramic surface mount (1.26 mm thick)
Operating Temp. -20°C to +85°C
Storage Temp. -30°C to +100°C
