AGR12 Gas Pressure Sensor Module For Medical Electronics Automotive Electronics
AGR12 Gas Pressure Sensor Module For Medical Electronics Automotive Electronics
Specifications
Model Number :
AGR12
Place of Origin :
CN
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Measurement Range :
-100kPa - 100kPa
Power Supply Voltage :
(5±0.25)VDC
Accuracy :
±2.5%Span
Long - term Stability (1 year) :
±1.0%Span
Compensation Temperature Range :
0 - 60℃
Operating Temperature Range :
0 - 60℃
Description

AGR12 Gas Pressure Sensor Module For Medical Electronics Automotive Electronics

Product Introduction:

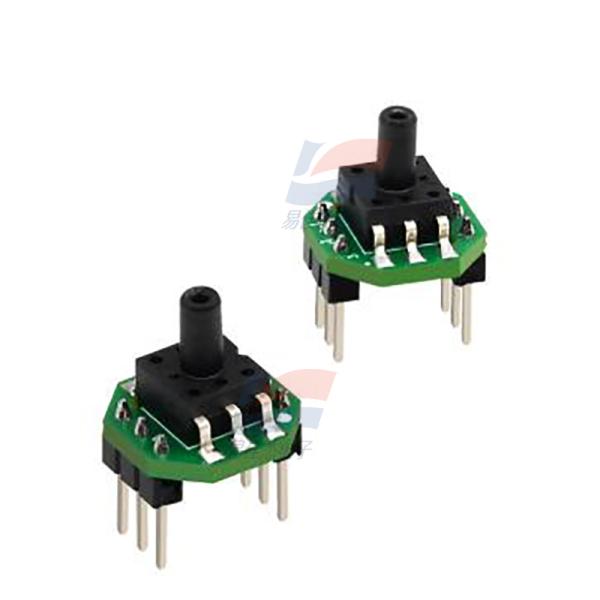

AGR12 is a gauge - type pressure sensor. It adopts a DIP - like packaging form, which is convenient for component insertion and removal, and is very suitable for automated assembly equipment. The two sides of the PCB are equipped with a pressure sensor in SOP packaging and a signal processing circuit chip, which digitally compensates for the offset, sensitivity, temperature drift, and non - linearity of the sensor. Taking the power - supply voltage as a reference, it can generate a calibrated and temperature - compensated standard voltage signal. It is an ideal low - cost and high - precision pressure sensor.

Application Fields:

Widely used in medical electronics, automotive electronics, sports and fitness equipment, and other fields. It can also be used in tire pressure gauges, power steering, brake assist, MAP sensors, and other automotive electronics, as well as water heaters, ozone water machines, beer machines, coffee machines, air pumps, vacuum pumps, pressure gauges, electric breast pumps, vacuum cleaners, and other equipment.

Measurement Range -100kPa - 100kPa
Applicable Medium Non - corrosive gas
Power Supply Voltage (5±0.25)VDC
Output Signal Standard voltage output or proportional voltage output, optional
0.5 - 4.5V
Accuracy ±2.5%Span
Long - term Stability (1 year) ±1.0%Span
Overload Pressure 5x (FS≤40kPa); 2x (FS≥100kPa)
Compensation Temperature Range 0 - 60℃
Operating Temperature Range -30 - 100℃
Storage Temperature Range -30 - 125℃
