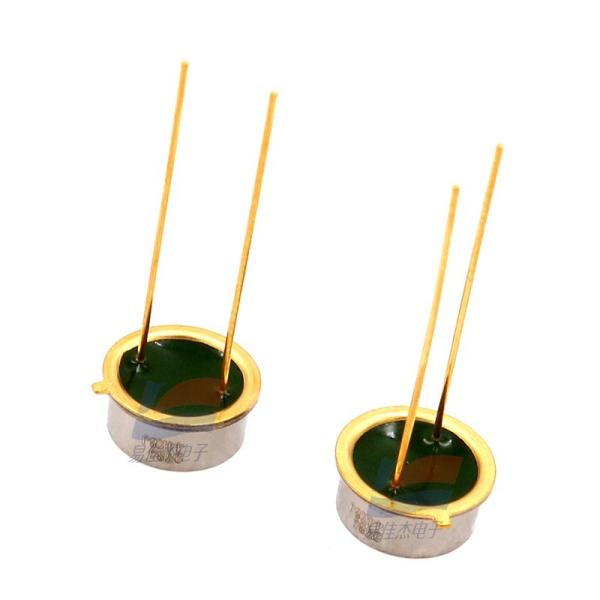

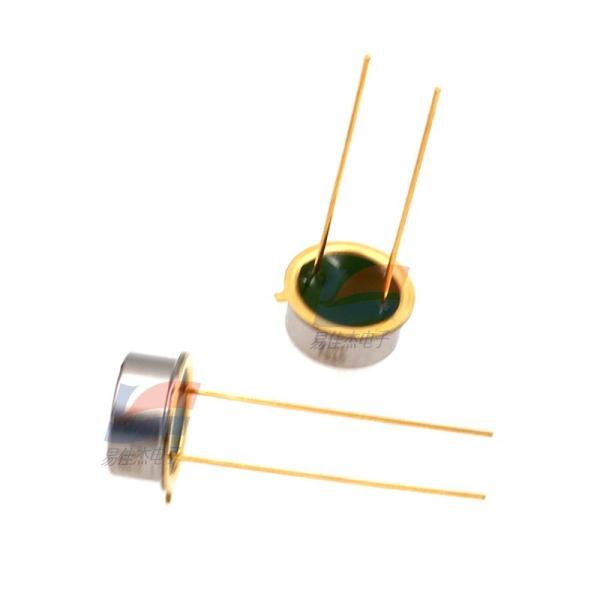

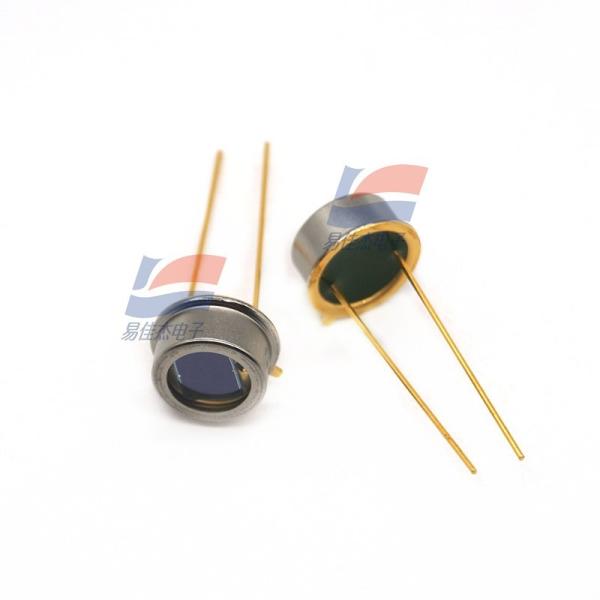

YJJ S2386-5K Analytical Equipment Optical Measurement Equipment Japanese Photodiodes
YJJ S2386-5K Analytical Equipment Optical Measurement Equipment Japanese Photodiodes
YJJ S2386-5K Analytical Equipment Optical Measurement Equipment Japanese Photodiodes
YJJ S2386-5K Analytical Equipment Optical Measurement Equipment Japanese Photodiodes
YJJ S2386-5K Analytical Equipment Optical Measurement Equipment Japanese Photodiodes
YJJ S2386-5K Analytical Equipment Optical Measurement Equipment Japanese Photodiodes
Specifications
Brand Name :
YJJ
Model Number :
S2386-5K
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
5-8 days
Packaging Details :
Pouching
Light-emitting surface :
2.4 × 2.4 mm
Package :
Metal
Package type :
TO-5
Cooling :
Non-cooling type
Reverse voltage :
30 V
Maximum sensitivity wavelength :
960 nm
Photo-sensitivity :
0.6 A/W
Dark current :
5 pA
Description

Product Description:

YJJ S2386-5K Analytical Equipment Optical Measurement Equipment Japanese Photodiodes

Features:

Suitable for the visible light to near-infrared wavelength range, universal photometer

Characteristics
- High sensitivity in the near-infrared band
- Low dark current
- High reliability
- Excellent linearity
Detailed parameters
Light-receiving surface 2.4 × 2.4 mm
Package Aluminum
Package category TO-5
Cooling Non-cooled type
Reverse voltage (maximum value) 30 V
Spectral response range 320 to 1100 nm
Maximum sensitivity wavelength (typical value) 960 nm
Photo-sensitivity (typical value) 0.6 A/W
Dark current (maximum value) 5 pA
Rise time (typical value) 1.8 μs
Capacitance at the junction (typical value) 730 pF
Noise equivalent power (typical value) 9.6×10-16 W/Hz1/2
Measurement conditions Typical value Ta = 25°C, photo-sensitivity: λ = 960 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, noise equivalent power: VR = 0 V, λ = λp, unless otherwise specified

Specifications:

Light-emitting surface 2.4 × 2.4 mm
Package Plastic
Cooling Non-cooling type
Reverse voltage (maximum value) 20V

YJJ S2386-5K Analytical Equipment Optical Measurement Equipment Japanese Photodiodes
