Product Description:

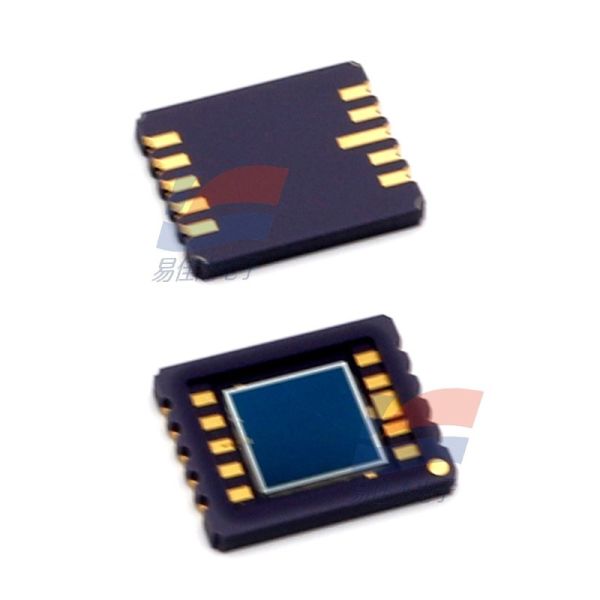

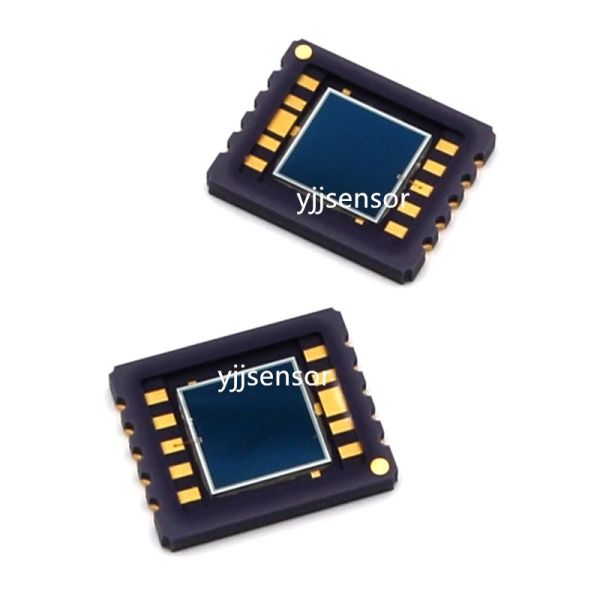

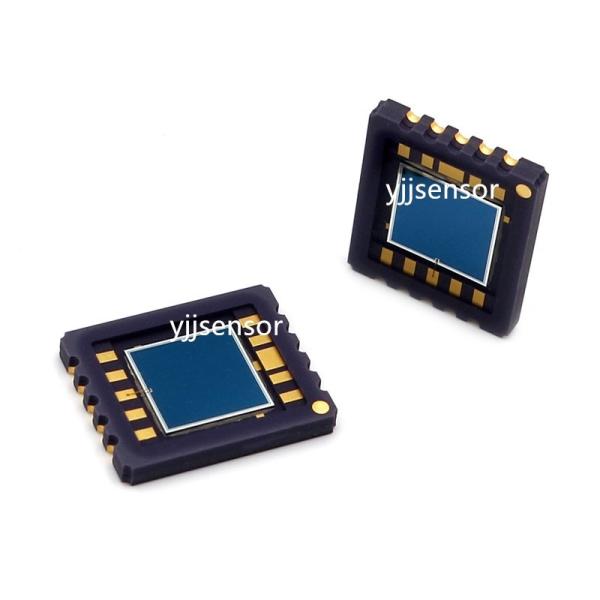

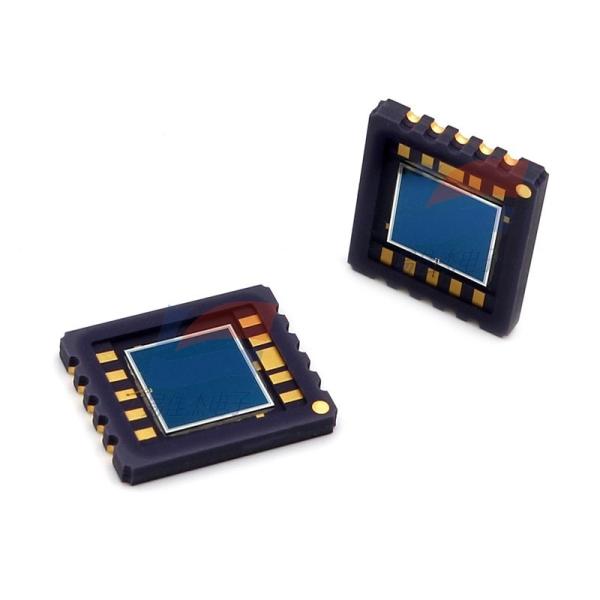

YJJ S5990-01 Two-dimensional PSD Position-Sensitive Detector Photodiode for Optical Position Measurement

Features:

Device type: Four-sided two-dimensional PSD (Position Sensitive Detector, a type of special photodiode)

Model distinction

S5990-01: Tray and bulk surface mount model;

S5990-11: Roll tape surface mount production model;

The same series of large size: S5991-01 (9×9mm photosensitive surface)

Core principle

Four-sided separated electrode silicon photodiode. When the light spot falls on any position of the 4×4mm photosensitive surface, the four paths of X1/X2/Y1/Y2 anodes output photocurrent are linearly corresponding to the light spot coordinates; the back-end circuit calculates the ratio of the four currents, and can calculate the precise two-dimensional X and Y coordinates, without the need for a pixel array, continuous position detection, and response speed is extremely fast.

II. Optical & Electrical Core Parameters (Ta = 25℃, standard test conditions)

1. Optical spectral parameters Table

Parameters Typical Specifications

Effective photosensitive area 4mm × 4mm

Spectral response range 320 ~ 1100nm (ultraviolet to near-infrared)

Peak response wavelength λp 960nm (compatible with 905/960nm infrared laser)

Peak response sensitivity 0.6 A/W

2. Position detection performance Table

Parameters Indicators

Position detection error ±70μm (typical), maximum ±150μm

Saturation photocurrent 500μA (VR=5V, load 1kΩ)

Inter-pole resistance 7kΩ (0.1V bias)

Rise response time tr 1μs (high-speed spot tracking)

Terminal junction capacitance 70~150pF

Dark current ID (VR=5V) Typical 0.5nA, maximum 10nA (low noise, suitable for weak light)

3. Limiting parameters of the pole

Maximum reverse bias voltage: 20V (conventional recommended working voltage 5V)

Operating temperature: -20℃ ~ +60℃

Storage temperature: -40℃ ~ +80℃

Package thickness: Ultra-thin 1.26mm ceramic surface mount package, compatible with SMT reflow soldering

Window material: Silicone resin (better ultraviolet light transmittance than epoxy)

4. Pin definitions (10Pin surface mount)

X1 Anode

Empty foot NC

X2 Anode

Empty foot NC

Cathode Common Cathode

Empty foot NC

Y1 Anode

Empty foot NC

Y2 Anode

Empty foot NC
