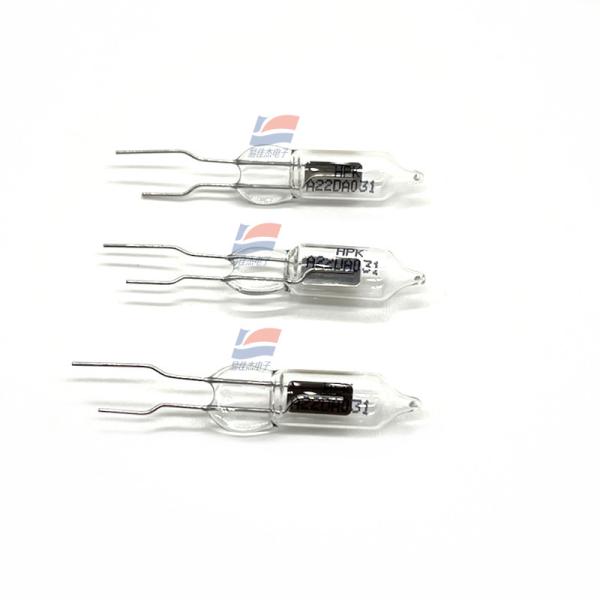

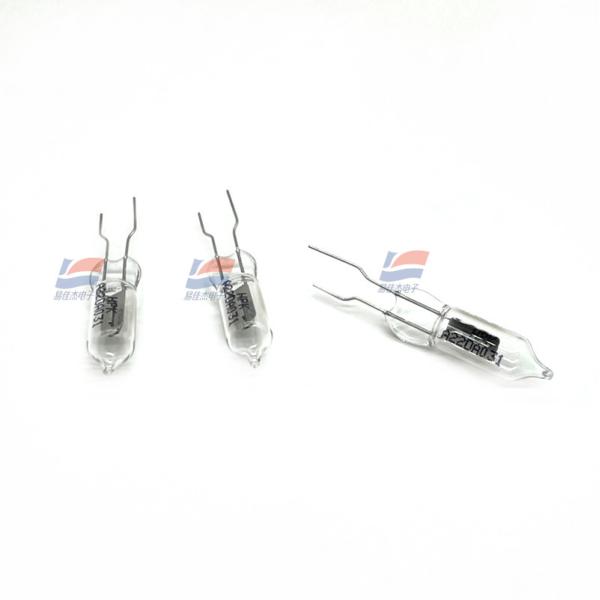

R9454 UVTRON UV Light Side-on Type 185 nm to 260 nm UV Transmitting Glass
R9454 UVTRON UV Light Side-on Type 185 nm to 260 nm UV Transmitting Glass
R9454 UVTRON UV Light Side-on Type 185 nm to 260 nm UV Transmitting Glass
R9454 UVTRON UV Light Side-on Type 185 nm to 260 nm UV Transmitting Glass
R9454 UVTRON UV Light Side-on Type 185 nm to 260 nm UV Transmitting Glass
R9454 UVTRON UV Light Side-on Type 185 nm to 260 nm UV Transmitting Glass
Specifications
Price :
Negotiable
Spectral response (short) :
185 nm
weight of :
1.5 g
Average discharge current :
1 mA
Electrode material :
Ni
Brand Name :
Hamamatsu
Model Number :
R9454
Place of Origin :
Japan
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
1501/pcs/pre
Delivery Time :
3-5work days
Packaging Details :
In a box
Supply voltage (DC) :
500 V
Spectral response (length) :
260 nm
Description

Product Description:

R9454 UVTRON UV Light Side-on Type 185 nm to 260 nm UV Transmitting Glass

High sensitivity and long-range detection


Accurately detects faint UV light from flame and electrical discharge. When detecting alcohol flame in a container of size
500 x 500 mm usina the compact and robust model R9533, accurate detection is possible even from a location
approximately 80 meters from the target. Furthermore, when using the utra-high sensitivity model R13192, accurate
detection is possible from a distance of approximately 125 meters, providing support for long-range detection while
allowing a greater degree of freedom for where the sensor can be setup.

Specifications:

Peak current 30 mA
Operating ambient temperature -20 to +60 ° C
Discharge start voltage (DC) 360 V
Discharge maintenance voltage (DC) 300 V
Typical sensitivity of 4000 min-1

R9454 UVTRON UV Light Side-on Type 185 nm to 260 nm UV Transmitting Glass
