QB Type A5 Double Girder Overhead Crane Span 18m 22m For Explosion Proof
QB Type A5 Double Girder Overhead Crane Span 18m 22m For Explosion Proof
QB Type A5 Double Girder Overhead Crane Span 18m 22m For Explosion Proof
QB Type A5 Double Girder Overhead Crane Span 18m 22m For Explosion Proof
QB Type A5 Double Girder Overhead Crane Span 18m 22m For Explosion Proof
QB Type A5 Double Girder Overhead Crane Span 18m 22m For Explosion Proof
Specifications
Brand Name :
KORIG
Model Number :
QB
Certification :
CE ISO
Place of Origin :
HENAN
Payment Terms :
L/C, T/T
Supply Ability :
100000set/year
Delivery Time :
30 days
Packaging Details :
1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as standard or as your requirements
product name :
A5 Double Girder Overhead Crane
keywords :
QB type Double Girder Overhead Crane
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Ge
Color :
Clients' Requirments
Main electrical parts :
Schneider
Machinery Test Report :
Provided
Warranty :
1 Year
Condition :
New
Application :
Warehouse,workshop,indoor,stockyard
Power source :
3 Phase 380V 50hz
Description

QB Type A5 Double Girder Overhead Crane Span 18m 22m For Explosion Proof

QB Type A5 Double Girder Overhead Crane OVERVIEW

All the electric motors and electrical compoinents of QB type explosion-proof double girder overhead crane conforms to the prescriptions of GB3836.2-2000 explosion-proof electrical equipment for explosive gas atmospheres - Part 2: Flameproof type "d". The performance of the whole machine complies with the requirements of the JB/T5897-2006 "Explosion-proof Bridge Crane" standard. The explosion-proof marks are ExdIIBT4, ExdIICT4. QB type explosion-proof double girder overhead crane has the same structuer as the QD type double girder overhead crane: two main girders, two end carriages, an electrical system and one electric trolley, etc.

QB Type A5 Double Girder Overhead Crane Parameters

Lifting Weight

t

5

10

16/3.2

20/5

32/5

50/10

Working Duty

A5

Span

m

18

22

26

30

35

18

22

26

30

35

18

22

26

30

35

18

22

26

30

35

18

22

26

30

35

18

22

26

30

35

Lifting Height

Main

10

11

10

11

10

11

10

11

10

11

10

12

Aux.

10.725

11.725

10.446

11.446

10.73

11.73

10.918

12.918

Speed

Hoisting

Main

m
/
min

11.3

8.5

7.9

7.2

7.5

5.9

Aux

14.6

15.4

15.4

10.4

Cross Travelling

37.3

35.6

36.6

36.6

37

36

Long Travelling

37.3

39.7

40.1

39.7

39.7

37.3

39.7

39.4

38.5

Power

kw

40.8

51.8

41.5

52.8

80

77

84

81

99.3

117.3

126.5

Dead Weight

t

48

52

57

65

73

52

60

70

78

88

64

75

86

95

106

70

78

88

101

115

83

94

105

120

137

103

114

130

143

162

Steel Track

43kg/m/QU70

Power Source

3phaseAC 380V 50Hz

QB Type A5 Double Girder Overhead CraneFEATURES

Open structure, new style, beautiful outlooking;
Good in usability with long service life;
High lifting capacity, high working duty;
Flexible operating, safe and reliable;
Suitable for flammable and explosive environments.

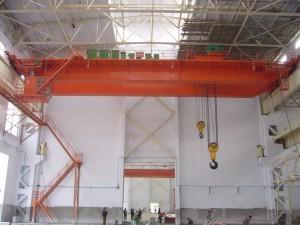

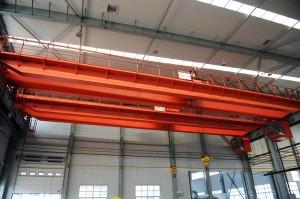

QB Type A5 Double Girder Overhead Crane Details

QB Type A5 Double Girder Overhead Crane Span 18m 22m For Explosion ProofQB Type A5 Double Girder Overhead Crane Span 18m 22m For Explosion Proof
