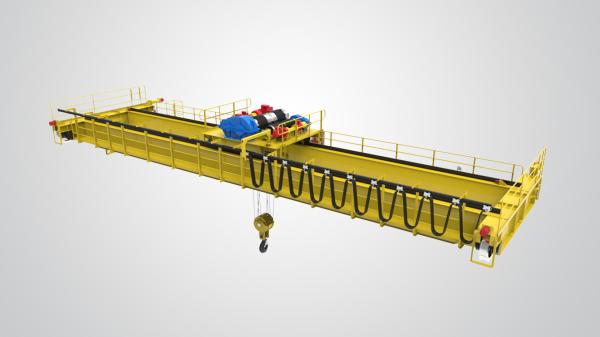

Multipurpose 5 Ton 10 Ton Overhead Crane Double Girder Ground Controlling
Multipurpose 5 Ton 10 Ton Overhead Crane Double Girder Ground Controlling
Multipurpose 5 Ton 10 Ton Overhead Crane Double Girder Ground Controlling
Multipurpose 5 Ton 10 Ton Overhead Crane Double Girder Ground Controlling
Specifications
Brand Name :
KRG
Model Number :
QD
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
USD5000-USD50000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 sets/per month
Delivery Time :
20-30workdays
Packaging Details :
Export wooden box to packaged hoist,plastic to packaged main beam
name :
Overhead Crane Double Girder
keywords :
QD type crane
Crane type :
Single girder overhead crane
Feature :
Bridge crane
Lifting Capacity :
3-50Tons
span :
7.5~25.5m
Lifting Height :
9;12;16;24m
Control Method :
Remote control
Core Components :
Engine, Bearing, Gearbox, Gear
Applicable :
Building Material Shops, Machinery Repair Shop
Description

5 Ton 10 Ton Overhead Crane Double Girder Ground / Cabin Controlling

Overhead Crane Double Girder Brief Introduction

Double-girder bridge crane is a heavy-duty crane, which is characterized by a more reasonable structure, higher overall steel strength, greater lifting capacity and longer span. Widely used in factories, warehouses, material warehouses and other places to lift goods or materials, it is forbidden to use this equipment in flammable, explosive and corrosive environments.

Overhead Crane Double Girder Parameter
SWL rated lifting capacity t 32/10
Opertional method m/min Ground controlling；Cabin controlling
speed main.hook lifting 3(0.3/3)
Aux.hook lifting 7(7/0.7)
crab travelling 20
trolley travelling ground 20；30
room 30；40
Motor main.hook lifting /kw ZDX62-6/18.5,(ZDS2.2/18.5)
Aux.hook lifting ZD151-4/13(ZDS1-1.5/13)
crab travelling ZDY123-4/2.2x2
trolley travelling ground ZDY123-4/2.2x2 ZDY131-4/3x2
room ZDR112L2-4/3.0x2 ZDR125-4/4.6x2
Electric Hoist 　 WH164;CD1(MD1)
Lifting Height m 9;12;16;24
working track recommended 　 A3--A5
Power source 　 3-phase A.C.50Hz;380V
trolley track recommended 　 43KG/M
Span m 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Max.wheel presure KN 167 184 196 206 215 224 233
Crane weight ground controlling kg 12530 14660 16360 18870 21650 24260 27060
Cabin controlling kg 13430 15560 17260 19770 22550 25160 27960
Our Advantages

1. Strong design ability to meet various customization requirements
2. Abundant experience in crane manufacturing, overseas installation and trial operation
3. Safe, attention to detail packaging
4. Efficient and satisfying online and after-sales service
5. Prompt delivery capability

After-sale Service

1. The warranty is 1 year.

2. During the warranty spare parts are provided fee okgkgkgk charge for quality problem under correct operation.

3. Low charge for maintenance when the warranty is expired.

4. Experienced engineers are available.

Double Beam Overhead Crane Details

Multipurpose 5 Ton 10 Ton Overhead Crane Double Girder Ground Controlling

Multipurpose 5 Ton 10 Ton Overhead Crane Double Girder Ground Controlling
