Specifications
Brand Name :
KORIG
Model Number :
QD
Certification :
CE ISO
Place of Origin :
HENAN
MOQ :
1 set
Price :
＄1000-100000
Payment Terms :
L/C, T/T
Supply Ability :
100000set/year
Delivery Time :
30 days
Packaging Details :
1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as standard or as your requirements
product name :
QD Type Double Girder Overhead Crane
Condition :
New
Span :
7.5/10.5/13.5/16.5/19.5/22.5/25.5m/28.5/31.5m
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Ge
Machinery Test Report :
Provided
Voltage overload protection :
Included
Color :
Clients' Requirments
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Application :
Warehouse,workshop,indoor,plants,stockyard
Description

QD Type Double Girder Overhead Crane AC380V 50Hz High Working Duty

QD Type Double Girder Overhead Crane OVERVIEW

Mainly composed of bridge, crane traveling mechanism, trolley, electrical equipment, etc. ;
Designed and manufactured in accordance with GB/T 14405, General Bridge Crane;
Widely applied to loading and moving of normal weight in the fixed crossing space and also can work with various special-purpose hoists in special operations;
It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

QD Type Double Girder Overhead Crane Parameters

Lifting Weight

t

5

10

16/3.2

20/5

32/5

50/10

Working Duty

A5

Span

m

18

22

26

30

35

18

22

26

30

35

18

22

26

30

35

18

22

26

30

35

18

22

26

30

35

18

22

26

30

35

Lifting Height

Main

10

11

10

11

10

11

10

11

10

11

10

12

Aux.

10.725

11.725

10.446

11.446

10.73

11.73

10.918

12.918

Speed

Hoisting

Main

m
/
min

11.3

8.5

7.9

7.2

7.5

5.9

Aux

14.6

15.4

15.4

10.4

Cross Travelling

37.3

35.6

36.6

36.6

37

36

Long Travelling

37.3

39.7

40.1

39.7

39.7

37.3

39.7

39.4

38.5

Power

kw

40.8

51.8

41.5

52.8

80

77

84

81

99.3

117.3

126.5

Dead Weight

t

48

52

57

65

73

52

60

70

78

88

64

75

86

95

106

70

78

88

101

115

83

94

105

120

137

103

114

130

143

162

Steel Track

43kg/m/QU70

Power Source

3phaseAC 380V 50Hz

QD Type Double Girder Overhead Crane FEATURES

Open structure, new style, beautiful outlooking;
Good in usability with long service life;
High lifting capacity, high working duty;
Flexible operating, safe and reliable;
Widely used.

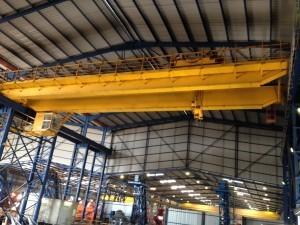

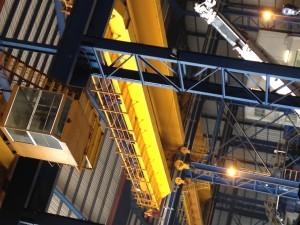

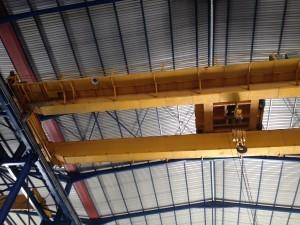

QD Type Double Girder Overhead Crane Images

QD Type Double Girder Overhead Crane AC380V 50Hz High Working Duty

​

QD Type Double Girder Overhead Crane AC380V 50Hz High Working Duty

​QD Type Double Girder Overhead Crane AC380V 50Hz High Working Duty​

QD Type Double Girder Overhead Crane AC380V 50Hz High Working Duty​

QD Type Double Girder Overhead Crane AC380V 50Hz High Working Duty
