0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
Specifications
Brand Name :
KORIGCRANES
Model Number :
JQ
Certification :
ISO,CE,SGS,CU-TR
Place of Origin :
CHINA
MOQ :
1set
Price :
USD 50000~USD 600000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20sets per month
Delivery Time :
1-3months
Packaging Details :
Electrics parts, motor, reducer, wire rope, etc are packed in wooden box;
keywords :
beam erecting machine
Capactiy :
0~2000tons
Application :
Highway,bridge consturction
Span :
20~60m
Lifting mechanism :
Electric winch
Export country :
Thailand,Philippines,Saudi Arabia,Malaysia,Bangaldeshm,Pakistan,etc.
Industry voltage :
380V 50HZ 3Phase
Color :
According to client's requirement
Description

Beam Launching Crane Segment Beam Erecting Machine

Beam Launching Crane Description

The beam launching crane segment beam erecting machine consists of main girder, crane, front legs, rear legs, front leg cylinder, rear leg cylinder and the transverse connection of front, middle, rear legs. The control part is composed of hydraulic system and electric control system. The bridge girder erection machine is characterized by reasonable compact structure and convenient installation, the main standard girder is connected by pin connection. The double girder structure is connected between the two frame girders by welded pipe.

The beam launching crane not only can meet the standard set up, but also it can meet the cross curve erection, variable span erection, span continuous beam, composite beam, continuous steel etc. In addition to bridge erection, simply supported girder erection and point lifting, it is characterized by good stability, high efficiency, safety and reliability, variable span convenient adjustment and convenient operation and etc.

Beam Launching Crane Technical Parameter Table

Item

Data

Capacity

30-500t

Bridge radius

20-50m

Slope

below 1/20

Turning radius

200-350m

Angle of skew bridge

0-15°

Shop travelling speed

2-45m/mim

Crane travelling speed

2-50m/min

Power source

as your demands

Other

According to your specific usage, specific model and design will offer

Features of Beam Launching Crane

1.Safe and reliable .

2.Crane traveling limit switch.
3.Overload protection device.
4.Lifting height limit device.
5.Voltage lower protection function .
6.Phase sequence protection function.
7.The machine can accomplish the build of girders with carrying and erection at the same time.
8.Rain cover for outside hoist, driving units, electric cubicle.
9.Warining indicator : flashing nights and warning sounds.

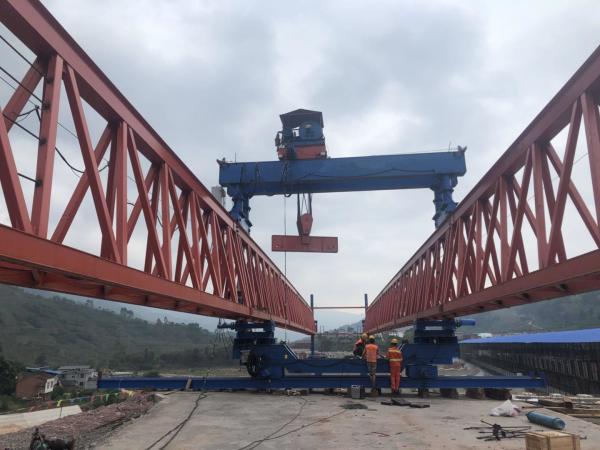

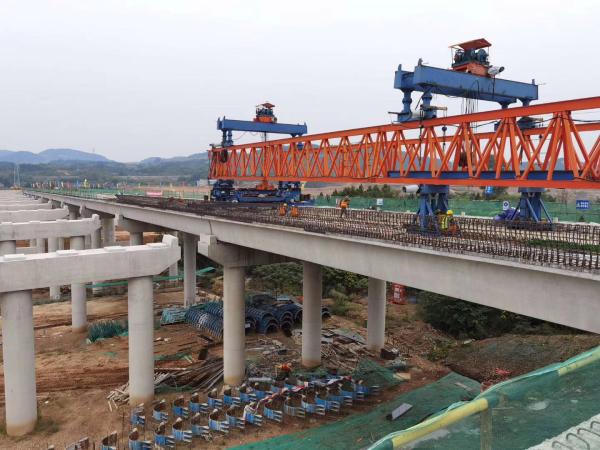

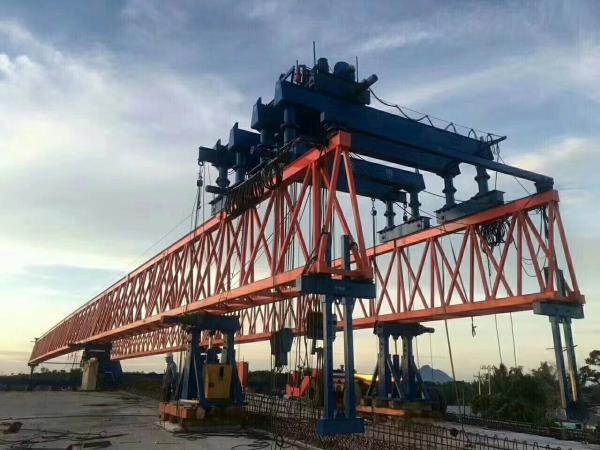

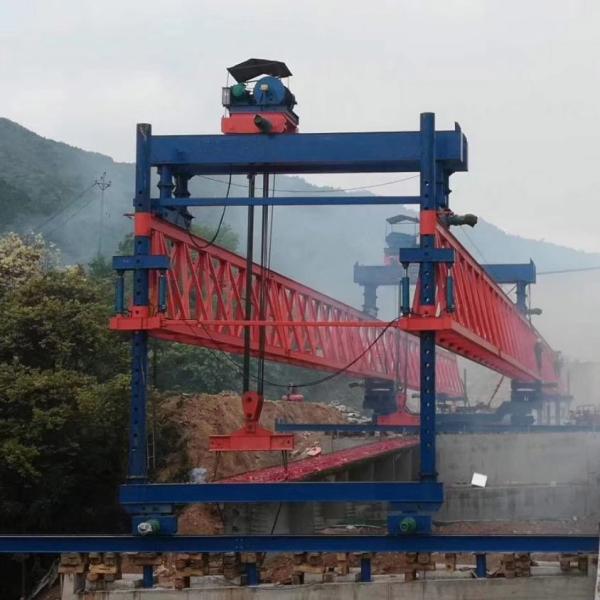

Beam Lauching Crane Photos

0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC0 ~ 2000tons Beam Launcher Crane Segment Beam Erecting Machine 380VAC
