200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m
200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m
200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m
200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m
200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m
200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m
200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m
200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m
Specifications
Brand Name :
KRG
Model Number :
TL
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
USD 50000-USD300000
Payment Terms :
L/C, T/T
Supply Ability :
500sets/per month
Delivery Time :
60-80 workdays
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
name :
beam launcher crane
keywords :
bridge girder launcher
Condition :
New
Lifting Weight :
200 t
After-sales Service Provided :
Engineers Available
Warranty :
2 years
Feature :
Highway Bridge Erection Machinery
Application :
Railway, Bridge Building, Highway
Description

200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m

Beam Launcher Crane Information

China concrete railway road bridge construction Beam Launcher machine is used in the erection of precast beam bridges for span by span method of construction for precast beam girders like T beam, U beam, etc. This self-beam launcher is suitable for bridge construction over river, valley or highway and so on.

This type Beam launcher machine is suitable for the construction of bridge for roads, railways and other bridge erection construction site. Its main function is to lift the prefabricated beams, then transported onto the prefabricated pier. It has big difference from the general cranes. It requests high security.

Beam Launcher Bridge girder erection machine merges an adaptation of a wide range of work, good compact structure, convenient operation, whole crane body with safety steel structure. This product can be used not only in plain construction environment, but also can meet the construction situation of mountain highway slope, Ramp bridge.

Beam launcher body includes main beam, cantilever, under guide beam, front and rear legs, auxiliary outrigger, hanging beam crane, cantilever structure and hydraulic driving system, with high performance and strong working efficiency.

This type launching crane is well applied in highway and bridge construction site and railway construction site. It can be used for environment of no fire, no explosion and no corrosive media with temperature from -20~55C.

Beam Launcher Crane Main Technical Parameter

Span 50m 40m 30m
Type QJ200/50 QJ180/50 QJ160/50 QJ140/40 QJ120/40 QJ100/30 QJ80/30
Rated capacity 200t 180t 160t 140t 120t 100t 60t
Bridge span 30-50m 20-40m 20-30m
Max. slope Longitudinal slope <5% cross slope <5%
Lifting speed 0.41m/min 0.45m/min 0.5m/min 0.56m/min 0.65m/min 0.75m/min 0.9m/min
Trolley longitudinal speed 3m/min
Trolley cross speed 3m/min
Crane slide longitudinal speed 3m/min
Crane side cross travel speed 3m/min
Adaptive inclined bridge angle 0~45°
Adaptive curved bridge radius 400m 300m 200m

Beam Launcher Crane Safety Features

Safety first. .To ensure its safety, below safety devices must be equipped:

▪ Crane traveling limit switch.
▪ Overload protection device.
▪ Lifting height limit device.
▪ Voltage lower protection function device
▪ Phase sequence protection function device
▪ Emergency stop function device
▪ Rain cover for outside hoist, driving units, electric cabinet
▪ Warning indicator : flashing nights and warning sounds device
▪ Wire-less remote detector for anti-collusion.

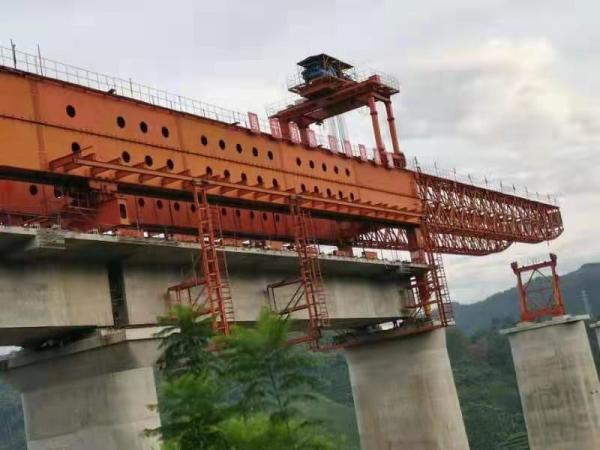

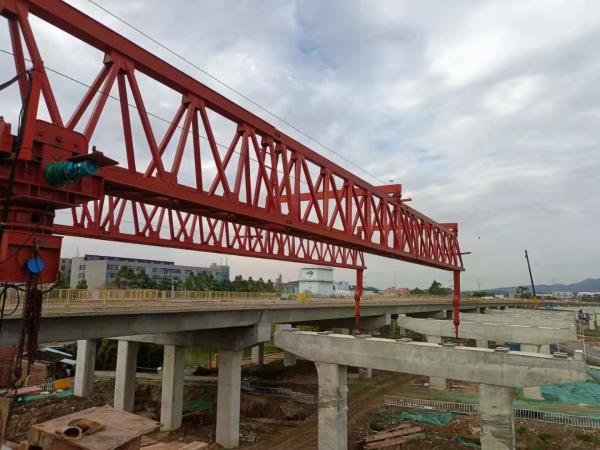

Beam Launcher Crane Images

200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m

200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m

200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m
