Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
Specifications
Brand Name :
KORIG
Model Number :
DY
Certification :
CE ISO
Place of Origin :
HENAN
MOQ :
1 set
Price :
＄1000-100000
Payment Terms :
L/C, T/T
Delivery Time :
30 days
Packaging Details :
1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as standard or as your requirements
Product name :
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket
keywords :
Crane Grab Bucket
Machinery Test Report: :
Provided
Warranty of core components: :
1 year
Condition :
New
Application :
Workshop,warehouse,Widely
Color :
Clients' Requirments
Control method :
Cabin / wireless remote / pendant button
Description

Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling

Electric Hydraulic Mutivable Double Disc Crane Grab Bucket Introduction

The product structure is compact,beautiful modelling,save energy and easy operation,according to the different industries and the usage situation and grab materials are divided into different selection,catch a claw is divided into many disc type and two disc type.(more disc is round and rectangular,grab claw have closed form,half open and all open form)

Electric Hydraulic Mutivable Double Disc Crane Grab Bucket Parameters

Model

Volume(m3)

Grab self weight(t)

Using crane ton(t)

Motor power(KW)

Operating Pressure bar

Close time(S)

DYZ3(0.5)

0.5

1.5

3.2

11

180

10

DYZ3(0.6)

0.6

1.7

3.2

11

180

11

DYZ5(0.8)

0.8

2

5

15

180

13

DYZ5(1.0)

1

2.5

5

15

180

14

DYZ10(2)

2

4.2

10

22

200

16

DYZ52.5)

2.5

2.6

5

18.5

180

17

DYZ10(3.0)

3

3.8

10

18.5

180

20

DYZ10(5.5)

5

4.3

10

22

200

19

DYZ16(2.5)

2.5

5.5

16

30

200

16

DYZ16(8.0)

8

5.6

16

30

200

19

DYZ20(4.0)

4

7

20

37

200

17

DYZ20(12)

12

8

20

37

200

25

DYZ25(17)

17

9

25

45

200

26

DYZ30(20)

20

11

30

45

200

28

Electric Hydraulic Mutivable Double Disc Crane Grab Bucket Features

1. The capacity is from 5 CBM to 20 CBM;
2. Control distance is 200 meters;
3. Grab material is Q235B and Q345B (ASTM A6);
4. Single steel rope to lift grab is enough, specially for Deck crane or Portal crane;

Electric Hydraulic Mutivable Double Disc Crane Grab Bucket application

Grab bucket is more used for disperses the shape material handling. In the selection of material should be refer to physical performance, the accumulation concentration, block size, particle shape, the internal friction degree of materials and the loose degree, etc. According to the different packing density and block size, grab bucket is divided into light, medium, heavy and super-heavy. Grab material block degree is more than 60mm or more solid material, the capture cutting edge should be made tooth.

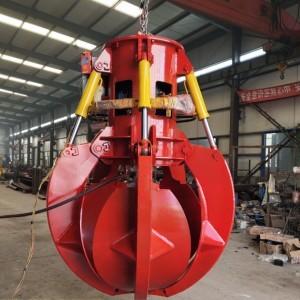

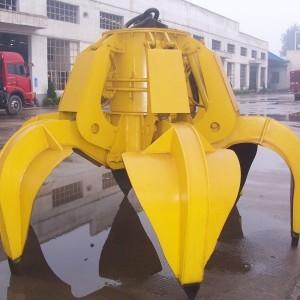

Electric Hydraulic Mutivable Double Disc Crane Grab Bucket Images

Electric Hydraulic Mutivable Double Disc Crane Grab Bucket For Material Handling
