0.5 ~ 20 m³ Electro Hydraulic Orange Peel Grab Bucket Wear Resistant
0.5 ~ 20 m³ Electro Hydraulic Orange Peel Grab Bucket Wear Resistant
0.5 ~ 20 m³ Electro Hydraulic Orange Peel Grab Bucket Wear Resistant
0.5 ~ 20 m³ Electro Hydraulic Orange Peel Grab Bucket Wear Resistant
0.5 ~ 20 m³ Electro Hydraulic Orange Peel Grab Bucket Wear Resistant
0.5 ~ 20 m³ Electro Hydraulic Orange Peel Grab Bucket Wear Resistant
Specifications
Brand Name :
KRG
Model Number :
DYZ
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
50,000~50,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Set/Year
Delivery Time :
40 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Name :
Electro-Hydraulic Orange Peel Grab
keywords :
Hydraulic Orange Peel Grab Bucket
Application :
Waste, mixed scrap, pig iron, rocks, wood chips and many more objects
Motor Type :
Hydraulic Motor
Volume :
0.5~20 m³
Warranty :
6 Months
Control :
Pendant Control or Remote Control
Motor power :
11~45 (KW)
Close time :
10~28s
Color :
Clients' Requirments
Description

0.5 ~ 20 m³ Electro Hydraulic Orange Peel Grab Bucket Wear Resistant

Hydraulic Orange Peel Grab Bucket Description

Electro Hydraulic (Motorised) Orange Peel Grabs can be manufactured in various executions. For loading and discharging of waste, mixed scrap, pig iron, rocks, wood chips and many more objects. They are to be fitted on cranes with one single drum (mainly overhead cranes and gantry cranes). The grabs are manufactured of high wear resistant steel.


Hydraulic Orange Peel Grab Bucket Technical Data

Model

Volume

(m³)

Grab self-weight

(t)

Using crane ton

(t)

Motor power

(KW)

Operating Pressure bar

Close time

(S)

DYZ3(0.5)

0.5

1.5

3.2

11

180

10

DYZ3(0.6)

0.6

1.7

3.2

11

180

11

DYZ5(0.8)

0.8

2.0

5

15

180

13

DYZ5(1.0)

1.0

2.5

5

15

180

14

DYZ10(2)

2

4.2

10

22

200

16

DYZ52.5)

2.5

2.6

5

18.5

180

17

DYZ10(3.0)

3.0

3.8

10

18.5

180

20

DYZ10(5.5)

5.0

4.3

10

22

200

19

DYZ16(2.5)

2.5

5.5

16

30

200

16

DYZ16(8.0)

8.0

5.6

16

30

200

19

DYZ20(4.0)

4.0

7

20

37

200

17

DYZ20(12)

12

8

20

37

200

25

DYZ25(17)

17

9

25

45

200

26

DYZ30(20)

20

11

30

45

200

28

Hydraulic Orange Peel Grab Bucket Features

1. Close automatically and open at any position without external power;
2. 100 m distance remote control from the grab.
3. Using 3D Virtual Design to secure outward appearance, grabs can be customized;
4. Main components of hydraulic system imported from Europe, so multistep buffering open style to keep longer service life.
5. The shells can be executed in 3, 4, 5, 6,7 or 8 open, half closed or closed shells.
6. The grabs shells can be executed with integrated or interchangeable teeth points.

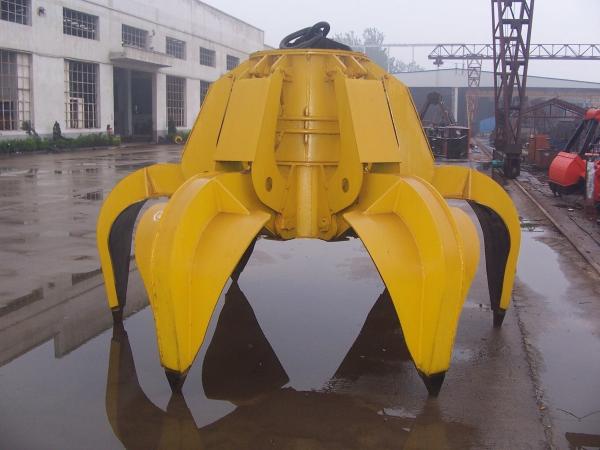

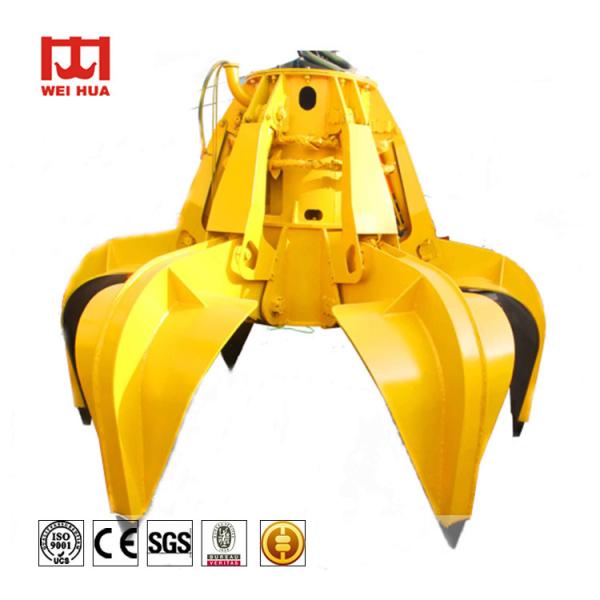

Hydraulic Orange Peel Grab Bucket Images


0.5 ~ 20 m³ Electro Hydraulic Orange Peel Grab Bucket Wear Resistant0.5 ~ 20 m³ Electro Hydraulic Orange Peel Grab Bucket Wear Resistant
