QD Type Double Girder EOT Crane Span 7.5m - 31.5m With Electric Hook
QD Type Double Girder EOT Crane Span 7.5m - 31.5m With Electric Hook
QD Type Double Girder EOT Crane Span 7.5m - 31.5m With Electric Hook
QD Type Double Girder EOT Crane Span 7.5m - 31.5m With Electric Hook
Specifications
Brand Name :
KORIG
Model Number :
QD
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
100,000~500,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Set/Year
Delivery Time :
30 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
name :
QD Type EOT Crane Double Girder
keywords :
Bridge Crane QD Type
Warranty :
1.5 years
Lifting Capacity :
10 ton
Span :
7.5-31.5m
Lifting Height :
6-30 m
Power Source :
According to your demand
Control Method :
Cabin / wireless remote / pendant button
slings and spreaders :
hooks, grabs, and clamps
Work Duty :
A5-A8
Description

10 Ton QD Type EOT Crane Double Girder Span 7.5m - 31.5m With Electric Hook

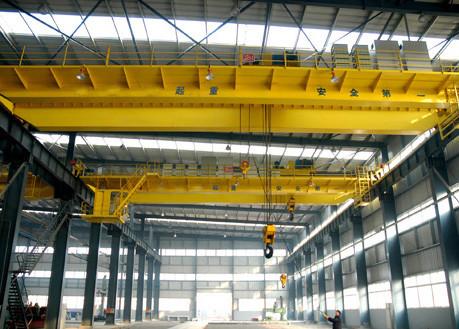

QD Type EOT Crane Double Girder Introduction

The QD double-girder bridge crane is composed of a box-type bridge frame, a lifting trolley, a crane operating mechanism, and an electrical system. The best choice for high-speed, heavy-duty jobs.


Application scenarios include: transshipment, assembly, maintenance, loading and unloading operations in machining workshops, affiliated workshops of metallurgical plants, warehouses, freight yards, etc. It is safe and reliable, with high work efficiency and long service life.

QD Type EOT Crane Double Girder Tehnicla Parameter Table

QD double beam overhead crane
Lifting Capacity T 5 10 16/3.2 20/5 25/5 32/5 50/10 400/80
Span M 10.5-31.5 28
Lifting height M Main Hook 16 16 16 12 12/11.0 16 12 22
Aux Hook 18 11 14/13 18 16 24
Speed M/min hoist Main hook A5 12.5 8.5 7.9 7.2 7.3 7.8 5.9 2.92
A6 15.5 13.3 13 9.7 9.8 9.5 7.8
Aux hook 14.5 12.7 12.7 19.5 13.2 9.24
Trolley travelling 37.2 43.8 44.6 44.6 37 42.4 38.5 37.2
Bridge travelling A5 89.8 /92.3 89.8-91.9 84.7-87.6 84.7/ 87.6 85.5/88 74.2-87.6 74.6 25.9
A6 116.2/ 117.4 112.5-116.8 112.5 112.5/ 101.4 112/ 101.4 86.8-101.4 87.3
Weight Kg Trolley A5 2126 3424 6227 6856 7185 10877 15425 142.3
A6 2224 3562 6427 7180 7856 11652 15765
Total Weight A5 12715-31405 14270-34405 19128-39428 19947-41497 20795-42796 26901-52748 35317-64880 359000
A6 12991-31596 14719-34699 20045-41315 20984-44225 22632-16324 28061-55272 36075-67242
Max Wheel Load KN A5 74-125 102-160 141-205 163-231 185-255 237-327 333-450 7500
A6 75-126 104-162 145-211 167-239 189-263 242-335 336-457
Rail recommended Trolley 15kg/m 43kg/m
Bridge 43kg/m QU70 QU80 QU120
Power Source According to your demand
We can design and manufacture all kinds of non-standard product according to your requirement

QD Type EOT Crane Double Girder Main Features

1.Heavy duty, high efficient .Easy for Installation and maintenance
2. Control method is cabin control
3. Crane can be equipped with hanging beam magnet or Grab or hook
4. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe

5.The cab can be either fixed at the left end or at the right end.

QD Type EOT Crane Double Girder​ Details

QD Type Double Girder EOT Crane Span 7.5m - 31.5m With Electric Hook

QD Type Double Girder EOT Crane Span 7.5m - 31.5m With Electric Hook
