Specifications
Brand Name :
X-media
Model Number :
P1.875mm
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, Wester Union, Money Gram, Cash
Supply Ability :
5,000pcs/month
Delivery Time :
5~8 working days
Packaging Details :
Flight case, wooden case, carton box and foam package
Product name :
Shelf led display
Cabinet material :
Aluminum
Module size :
150mmx60mm
Screen size :
Customized design
Brightness :
800cd
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

P1.25 P1.875 Portable COB Indoor Shelf LED Display For Store Advertising

LED Shelf Display is designed to replicate key benefits of the online experience into physical retail stores. LED shelf display utilizes ruggedized shelf-edge displays combined with high definition optical sensors to automate intelligence into on-the-shelf inventory levels and planogram compliance, play optimal video based on screen view distance. The technologies work together to enhance operational efficiencies and to impove sales effects and shopping experience. LED digital shelf technology capable of delivering dynamic pricing, promotion, product and brand related information at the shelf edge

Specification

Item Parameters
Model P1.875 COB
Pixel Pitch(mm) 1.875
Physical Density (dot/sqm) 284,444
LED Configuration 1RGB
LED Type COB
Module Size (mmxmm) 150x60
Module Resolution (PXxPX) 80×40
Scanning mode 1/45
Brightness(cd/sqm) 500-800
Grey Scale 14bit
Refresh Rate(Hz) 3840z
Drive Mode Constant Current Drive
Horizontal Viewing Angle(Deg) 170
Vertical Viewing Angle(Deg) 170
Cabinet Resolution(PXxPX) 160x32
Module Power Consumption(w) 40
Cabinet Max Power Consumption(w) 130
Cabinet Average Power Consumption(w) 40
Cabinet Size(mmxmm) 300x60x60mm
Cabinet Weight(kg) 0.35kg
Cabinet Thickness(mm) 60mm
Cabinet Material Die-casting Aluminum
Color(M) 16.7
Input Voltage AC100V-240V +/-10%
Refresh Frame Frequency(Hz) 50-60
Protection Level IP43
Working Environment Indoor
Working Temperature(ºC) -40°-+60°
Storage Humidity(RH) 40%-60%
Life Span(H) 100,000

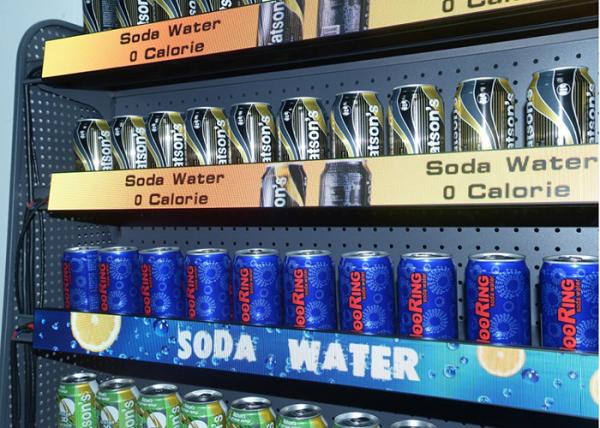

P1.875 COB Shelf LED Display

P1.875 COB Shelf LED Display

P1.875 COB Shelf LED Display

P1.875 COB Shelf LED Display

P1.875 COB Shelf LED Display

P1.875 COB Shelf LED Display

Packing and Shipping:

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees

P1.875 COB Shelf LED Display

FAQ:
Q1. Can I have a sample order for led Screen?

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.


Our service: Buy guides
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs

Buy guides:
In order to save you time avoid no necessary troubles ,please follow the steps bellowing :
1,Dimension (Width and Height)
2,Location of installation. (picture is best)
3,Purpose. ( what are you going to do with the LED Curtain)
4,Star effect or video effect which you need.
