Commercial 800cd Shelf LED Display
Commercial 800cd Shelf LED Display
Commercial 800cd Shelf LED Display
Commercial 800cd Shelf LED Display
Commercial 800cd Shelf LED Display
Commercial 800cd Shelf LED Display
Specifications
Brand Name :
X-media
Model Number :
P1.25mm
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, Wester Union, Money Gram, Cash
Supply Ability :
5,000pcs/month
Delivery Time :
5~8 working days
Packaging Details :
Flight case, wooden case, carton box and foam package
Product name :
Shelf led display
Cabinet material :
Aluminum
Module size :
320mmx160mm
Screen size :
Customized design
Brightness :
800cd
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

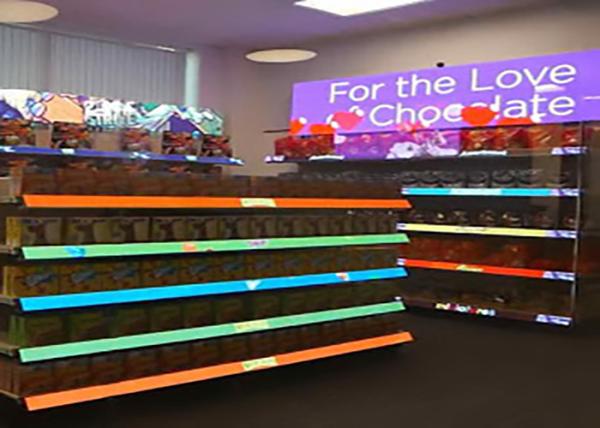

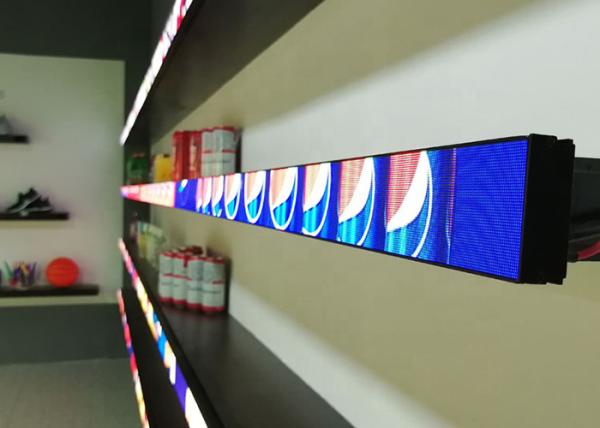

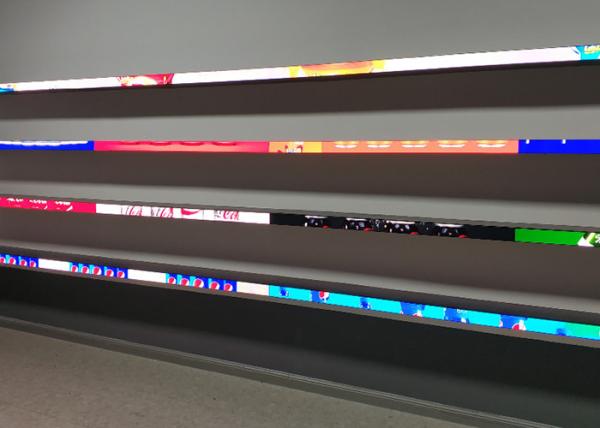

COB P1.25 Indoor Commercial Digital Shelf LED Display Shows Price In Shopping Mall

Products features

  • High resolution COB -LED display technology

  • Use to stable, exclusive patent for COB prevent touch encapsulation technology
  • Anti-water COB technology, no problem for water drop on surface.
  • Anti-dust, friendly to clean up directly on front surface
  • 16 Bit High gray scale display, more colorful
  • Full aluminum alloy cabinet, lightweight and durable
  • Various of installation bracket, installation diversification
  • Integration of hide wiring(Power&data 2in1), easy and clean connection on back side
  • dB15 standardizing connector, easily change for the accessory
  • Separate type of main controller, support WiFi control and update content
  • USB multi-function ports, easy to set up or update content
  • U disk play or update content, easily play management

Shelf LED display various dimension

Commercial 800cd Shelf LED Display

Ultra slim and lightweight:
Panel Material: Aluminum panel, only 0.35kg per screen;
Save space and easy to carry

Commercial 800cd Shelf LED Display

DC Power supply:
50V 60A External power switch
DC power supply to provide a reliable assurance

Commercial 800cd Shelf LED Display

IP65 water proof, dusty proof and hit- protection:
Being made of COB technology, the Shelf screen has multiple protection function
Suitable for applications with changeable environment

Commercial 800cd Shelf LED Display

Hop Plug:
Hard connection between individual screens
Supporting hot plug, just plug and play, random assembly for various sizes

Commercial 800cd Shelf LED Display

Specification

Pixel Pitch(mm) 1.25mm
LED Type COB
LED Configuration 1R1G1B
IC ICN2065+ICN2018
Refresh Rate(Hz) ≥3840Hz
Module Resolution (PXxPX) 120*45=5400 Dots
Module Size (mmxmm) 150mm*56.25mm
Max Current 6A
Input Voltage 5V
Module max power consumption 6.5W
Scanning mode 1/45
Brightness 400~600 CD/m2
Grey Scale >14bit
Cabinet Resolution(PXxPX) 480*45=10800 Dots
Cabinet Size 300mm*60mm/600x60mm/900x60mm/900x175mm
Malfunction Dot Rate <0.3%
Power Supply DC5V
Working Temperature(ºC) -40-60ºC
Working Humidity 10%-90% RH
Lifespan(H) ≥100,000

OUR SERVICE:

PRE-PRODUCING:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

AFTER SERVICE:
1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service

Package and delivery

Commercial 800cd Shelf LED Display

Our factory

Commercial 800cd Shelf LED Display

Certification

Commercial 800cd Shelf LED Display

Buy guides:
In order to save you time avoid no necessary troubles ,please follow the steps bellowing :
1,Dimension (Width and Height)
2,Location of installation. (picture is best)
3,Purpose. ( what are you going to do with the LED Curtain)
4,Star effect or video effect which you need.
