P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
Specifications
Brand Name :
X-media
Model Number :
P8.3
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Curtain led display
Cabinet material :
Aluminum
Module size :
1000x500mm
Screen size :
Customized design
Brightness :
7000cd
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

P8.3 Outdoor Curtain LED Display, SMD Waterproof Building Mesh Led Screen

Features:

1. High transparency;
2. Ultra light and slim;
3. Front & back maintenance;
4. Smart lock system,easy installation;
5. Curve cabinet available;
6. High brightness;
7. Apply to both outdoor fixed and rental projects.

Product Description

Item Outdoor P8.3-12.5 Outdoor P16-16 Outdoor P31.25-31.25 Outdoor P50-50
Pixel Pitch 8.3-12.5mm 16-16mm 31.25-31.25mm 50-50mm
Cabinet size 1000*500mm
Transparency 55%-80%
Pixel density 9600dots/sqm 3906dots/sqm 1024dots/sqm 400dots/sqm
Cabinet Weight 15kg/sqm
Average power <=300w/sqm
Max consumption <=800w/sqm
Refresh rate ≥OR 3840HZ
Working temperature -30ºC~65ºC
Brightness ≥6500cd/m2
Life span 100000h
Viewing angle 160°
IP rating(Front/Rear) IP65
Input Voltage AC220V/50Hz or AC110V/60Hz
Power Consumption
(Max. / Ave.)		 400/200 W/m2
Warranty 5 years

Our service

Warranty
1. We guarantee all our display, modules, spare parts for 5 years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you antil it recovers well by remote control!

Installation
1. We can assist the training and technical support for the customer in the factory, if the customer require so.
2. We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need

Curtain display type

P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd

P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cdP8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd

Why is Curtain display

1. Low wind resist, construction simple
2. Light, construction is simple and thin
3. Full color, Using flexible.
4. Project is small cost is low.
5. Light and wind can go in side of building.
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd

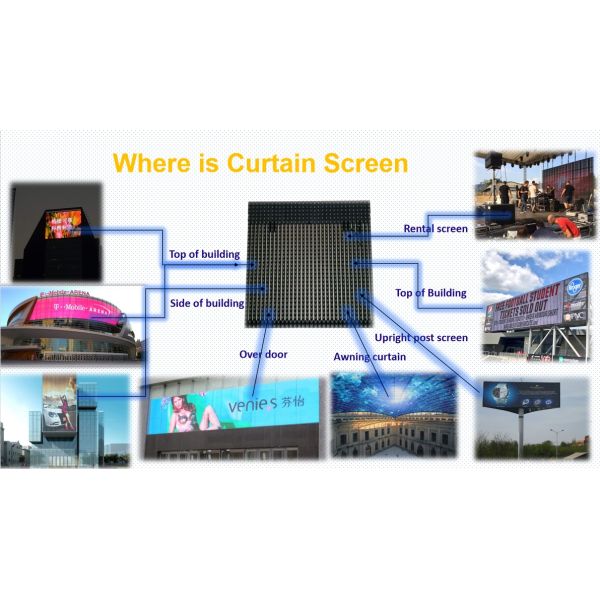

Application
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd
P8.3 LED Mesh Screen , Waterproof Curtain LED Display 7000cd

Trade Terms

MOQ: 5 sq.m. Outdoor LED Display

Payment: T/T or according to your requirements.

Payment Term: FOB, EXW or according to your requirements.

Packing: Wooden case, cartons, flight case or according to your requirements.

Shipping: By air, by sea, by land, by express or according to your requirements.

Delivery Time: 8~10 working days.

Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.

Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing:
1, Dimension ( Width and Height)
2, Location of installation ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
