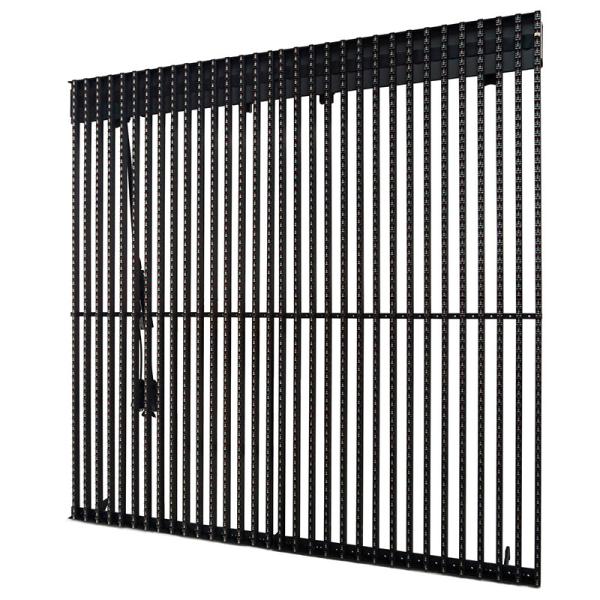

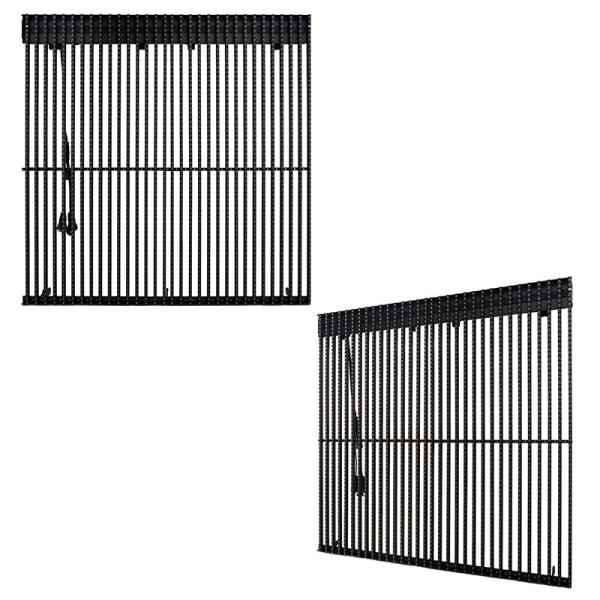

P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
Specifications
Brand Name :
X-media
Model Number :
P15.6
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Curtain led display
Cabinet material :
Aluminum
Module size :
1000X500mm
Screen size :
Customized design
Brightness :
7000cd/sqm
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

The Surface Of Building High Brightness P15.6 Curtain LED Display BMI Drive IC

Never black Screen
2pcs power supply
2pcs receing cards
2pcs sending cards
2pcs RJ45 network cables
Control system has dual backup
If one set of control system has problems. The whole led screen can not be affected.
Because other one set of control system will replace it to continue work.
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
Specification

1000x500mm die casting panel waterproof SMD 3806 p10.42 outdoor full color transparent curtain led displays

Technical Parameters:

Specifications P5.95(semi outdoor) P6.94(semi outdoor) P6.25(outdoor) P8.93(outdoor) P10.42(outdoor) P15.625(outdoor)
Pixel Size 5.95mm 6.94 6.25mm 8.93mm 10.42mm 15.625mm
Cabinet Size 500×1000 500×1000 500×1000 500×1000 500×1000 500×1000
Cabinet Resolution 84×168 72×144 80×160 56×112 48×96 32×64
LED Type SMD3528 SMD3528 SMD3535 SMD3535 SMD3535 SMD3535
Pixel Composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Density 28224dots/ m 2 20736dots/ m 2 25600dots/ m 2 12544dots/ m 2 9216dots/ m 2 4096dots/ m 2
Drive Mode(Scan) 1/7 scan 1/6 scan 1/5 scan 1/4 scan 1/4 scan Static
Gray scale ≥14bit ≥14bit ≥14bit ≥14bit ≥14bit ≥14bit
Brightness ≥2500cd/ m 2 ≥2000cd/ m 2 ≥6000cd/ m 2 ≥6000cd/ m 2 ≥6000cd/ m 2 ≥6000cd/ m 2
Refresh Rate ≥ 1000HZ ≥ 1000HZ ≥ 1000HZ ≥1000HZ ≥ 1000HZ ≥ 1000HZ
AC Input AC 220V/110V AC 220V/110V AC 220V/110V AC 220V/110V AC 220V/110V AC 220V/110V
Maximum Power 400W/PCS 350W/PCS 500W/ PCS 300W/ PCS 250W/ PCS 400W/ PCS
Average Power 160W/PCS 140W/PCS 200W/ PCS 120W/PCS 100W/ PCS 160W/ PCS
Working Temperature -20~ +50 -20 ~ +50 -20 ~ +50 -20 ~ +50 -20 ~ +50 -20 ~ +50

X-Media series Media Facade New dual backp design led screen

P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2

Outdoor Mesh Led Display:

High protection of cabinet design with flexible shape.
Super light, super thin, super high transparency, high intensity item and easy maintenance
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
Light weight, extremely thin and high transparent cabinet:
Whole aluminum frame design, 70mm thickness, 16kg/sqm strip design, light and wind transparency, 60% extremely high wind pressure resistance
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
Higher 7000cd/sqm brightness
Fast installatin and easy front service
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
Ingress Protection IP65 Dustproof and Stormproof
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
High protections of high temperature, low temperature, lightning and corresion
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
Product package:
1pcs 1000x1000mm cabinet in one carton.
10pcs cartons in one wooden case.
10pcs frames in one wooden case.
Wooden case material is not wood, it does not need to be fumigated.
So it is very suitable used in import and export.
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2
P15.6mm LED Screen Curtain , LED Curtain Outdoor 4096 dots/m2

FAQ:

Q1: What does the dual backup means?
A1: The dual backup means if one set of control system can not work. Then other set of control can replace it to continue work. It will not affect whole led screen working situation.
Q2: Can its brightness can be higher?
A2: Yes. Of course, here is a solution to make the whole brightness to be 10000nits.
Q3: How long for the warranty? Can the warranty be longer?
A3: On usual, warranty is 5 years. Of course,according to customers' requirements,the warranty can be longer such as 5 years.
Q4: Except the whole screen and its accessories, what I need to prepare by myself?
A4: Power box, computer, external power cable, external network cable.
Q5: Can this transparent led screen has energy saving advantage?
A5: Yes. Of course, the energy saving is one of its important advantage. It can save a lots of power. In some degree, it can also save a lots of costs in electricity
