Specifications
Brand Name :
No Brand
Model Number :
Indoor fine pitch of the LED cabinet
Certification :
CE, CCC, FCC, EMC, UL, CB RoHs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10000above
Delivery Time :
10-15days
Packaging Details :
Customizable cardboard box packaging; Customizable flight case packaging
Power Consumption :
Average ≤150W/m², Max ≤490W/m²
Viewing Angle :
160° horizontal / 140° vertical
Refresh Rate :
1920-3840Hz or higher
Brightness :
≥450-600 nits
Operating Temperature :
-20°C to 40°C
Installation Type :
Indoor fixed or rental
Pixel Pitch :
1.25mm - 4mm
Price :
To be discussed
Humidity Range :
10% - 90% non-condensing
Contrast Ratio :
5000:1 or above
Lifetime :
100,000 hours
Description
Indoor Fine Pitch LED Display Screen
High-performance indoor LED display featuring fine pitch technology for exceptional image quality and professional presentation applications.
Key Features & Design Advantages
  • Front and rear installation with full front/rear access for easy maintenance
  • High-strength aluminum alloy die-casting structure for lightweight, non-deformation performance and superior heat dissipation
  • Precision positioning pins ensuring higher cabinet splicing accuracy
  • Cascade line transmission with generic cables for stable, reliable operation at lower cost
  • X/Y/Z 6-axis alignment capability during cabinet stitching
  • Corner protection design at bottom to prevent LED damage
  • Optional power and signal redundancy for enhanced reliability
  • Super slim 74mm thickness with classic 4:3 ratio design
  • Spring-loaded cabinet handles for user-friendly operation
  • Concealed power connection for clean, cable-free rear appearance
  • Dual-status indicators: red for power status, green for signal status
Technical Specifications
Item P1.2 P1.5 P1.6 P1.8 P2 P2.5 P3 P4
Pixel Configuration SMD
Pixel Pitch (mm) 1.25 1.538 1.667 1.86 2 2.5 3.076 4
Module Resolution 256*128 208*104 192*96 172*86 160*80 128*64 104*52 80*40
Module Size (mm) 320*160
Module Weight (kg) 0.48±0.05 0.48±0.05 0.48±0.05 0.48±0.05 0.45±0.05 0.45±0.05 0.275±0.05 0.4±0.05
Module Composition 2*3
Cabinet Resolution 512*384 416*312 384*288 344*258 320*240 256*192 208*156 160*120
Pixel Density 640000 422500 360000 288906 250000 160000 105625 62500
Cabinet Dimension 640*480*74
Unit Area (㎡) 0.3072
Weight (kg/㎡) 7
Flatness (mm) ≤0.3
Brightness (nits) ≥450 ≥450 ≥450 ≥450 ≥450 ≥600 ≥600 ≥600
Color Temperature (K) 3000-15000 (Adjustable)
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Deviation of LED Luminance Center ＜3%
Chromaticity Uniformity (after correction) ±0.003Cx, Cy within
Brightness Uniformity ≥97%
Contrast Ratio 5000:1
Max Power Consumption ≤490W/㎡
Average Power Consumption ≤150W/㎡
Power Supply AC:200-240V
Drive Mode 64S 54S 48S 48S 40S 32S 26S 20S
Frame Rate (Hz) 50 & 60
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz 1920 & 3840Hz 1920 & 3840Hz 1920 & 3840Hz
Life Time (hours) 100,000 hours
Operation Temperature －10℃~＋40℃
Storage Temperature －20℃~＋60℃
Operation Humidity (RH) 10%~80% no condensation
Storage Humidity (RH) 10%~85% no condensation

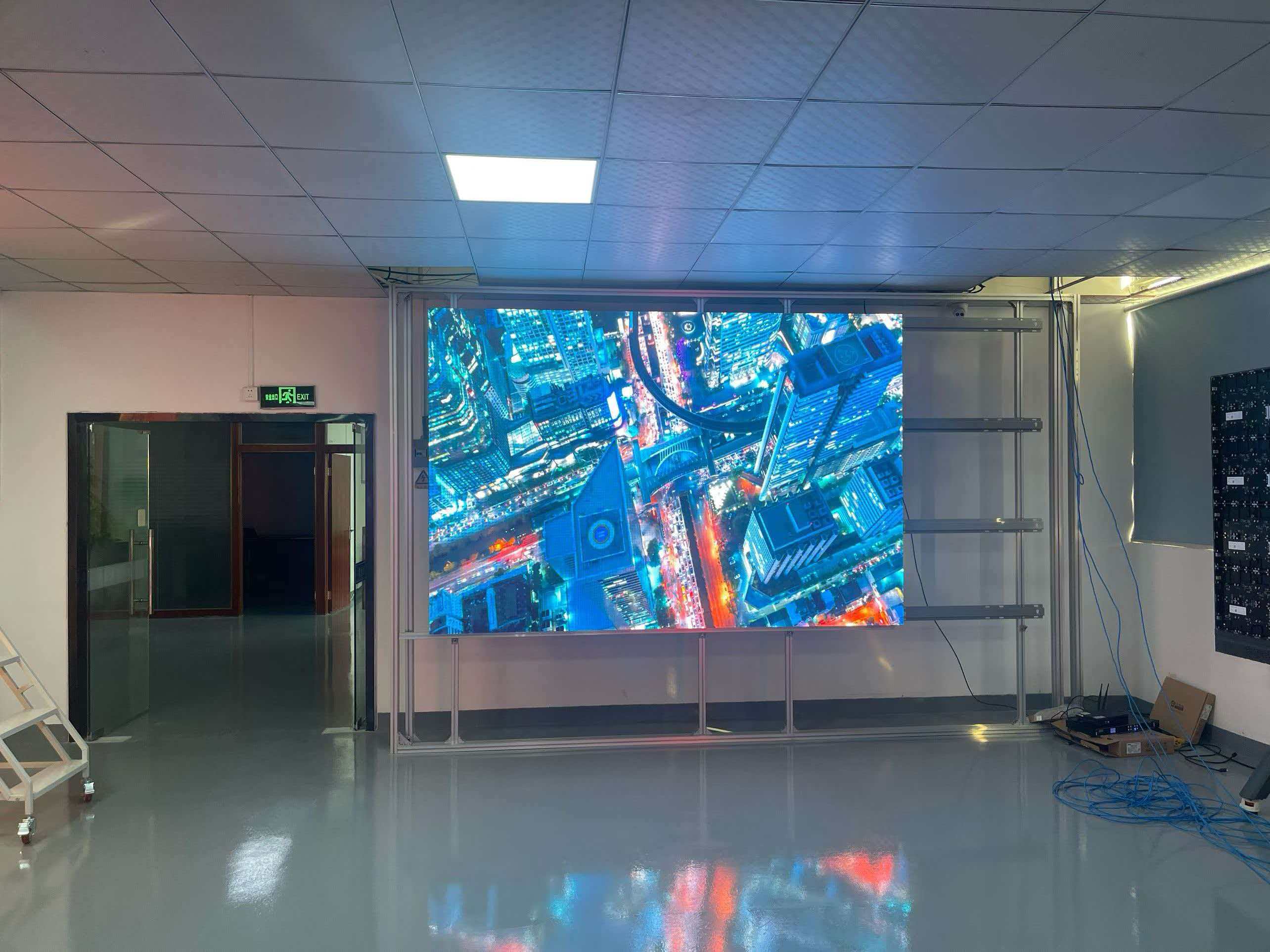

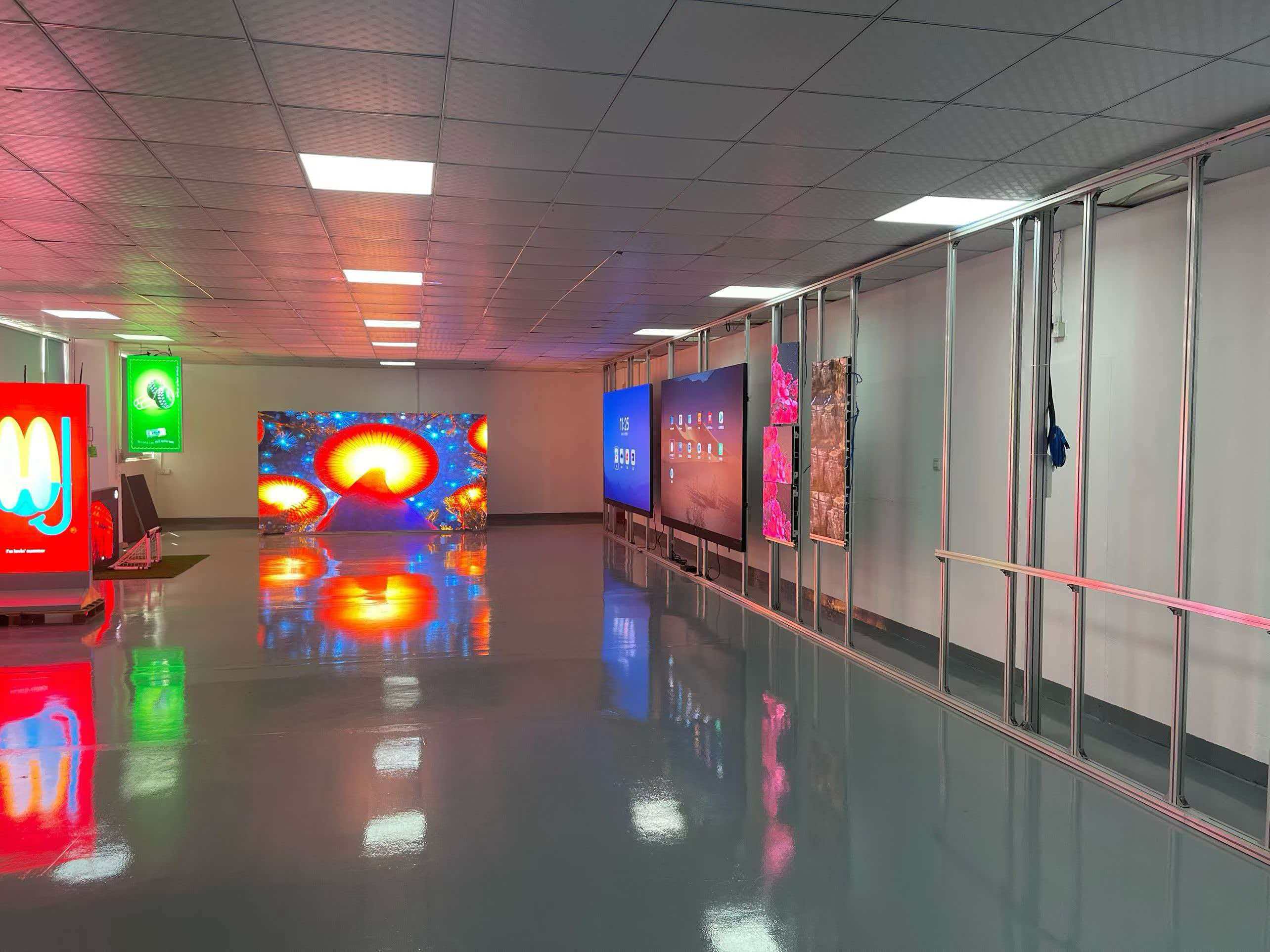

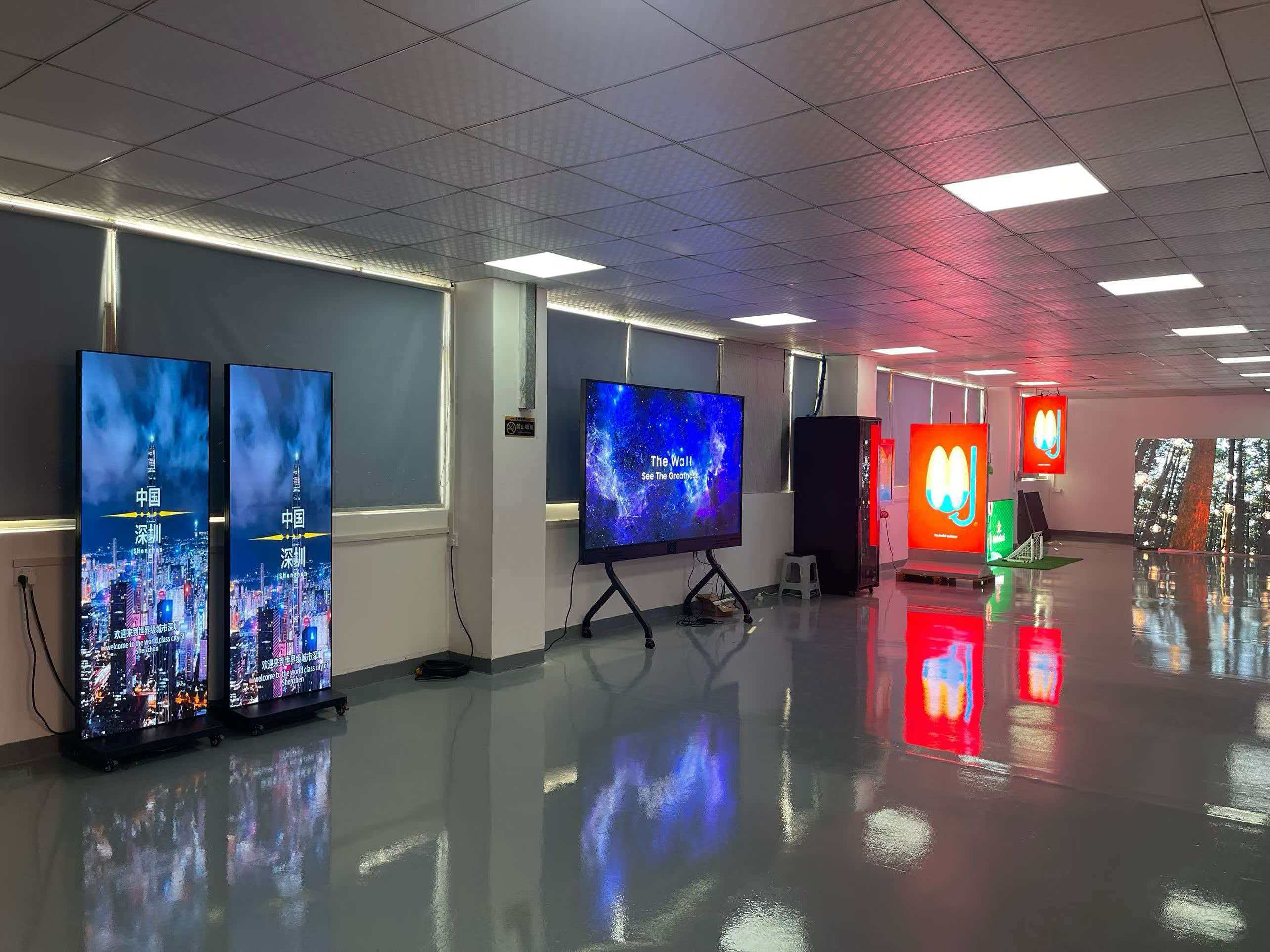

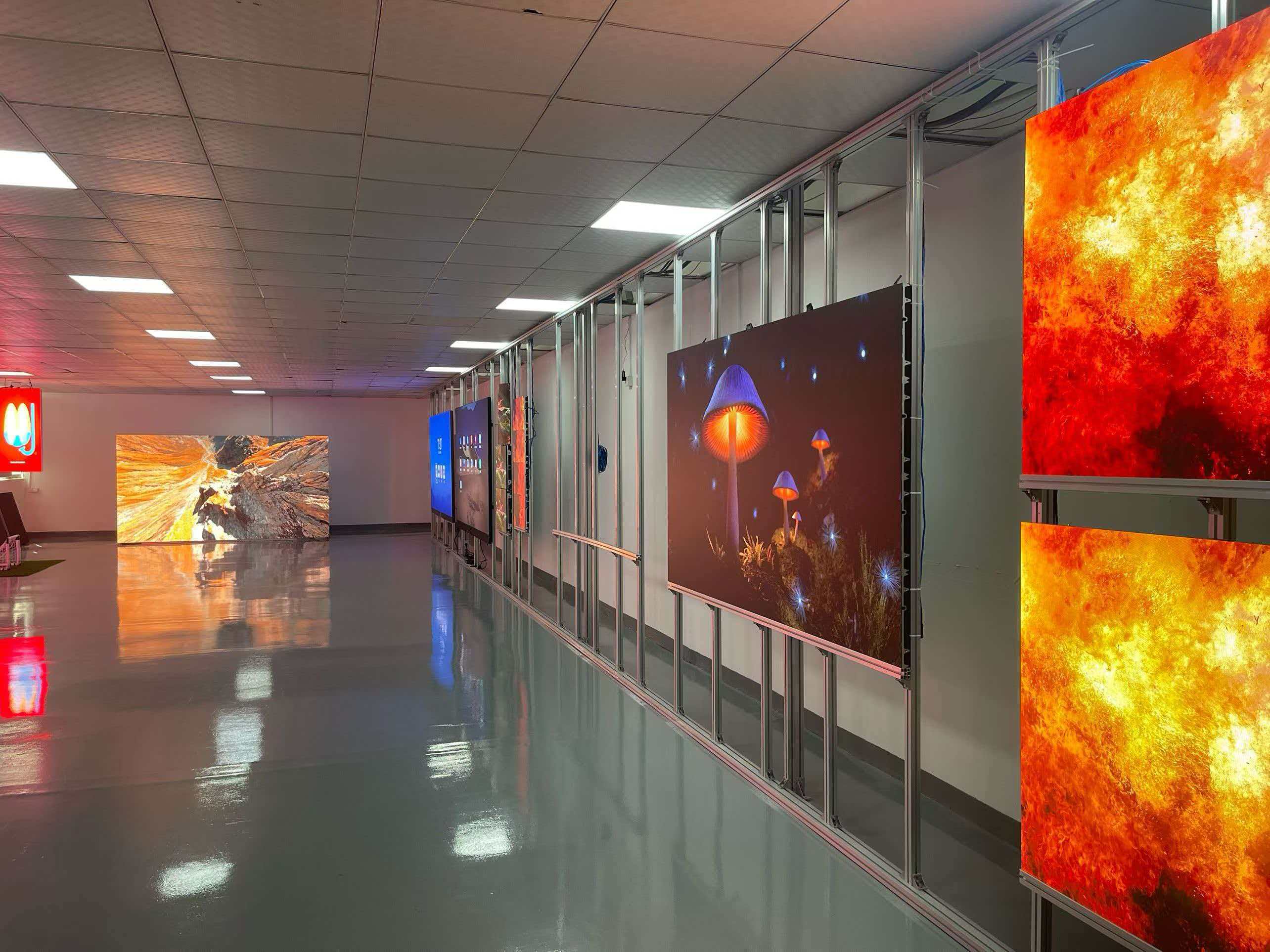

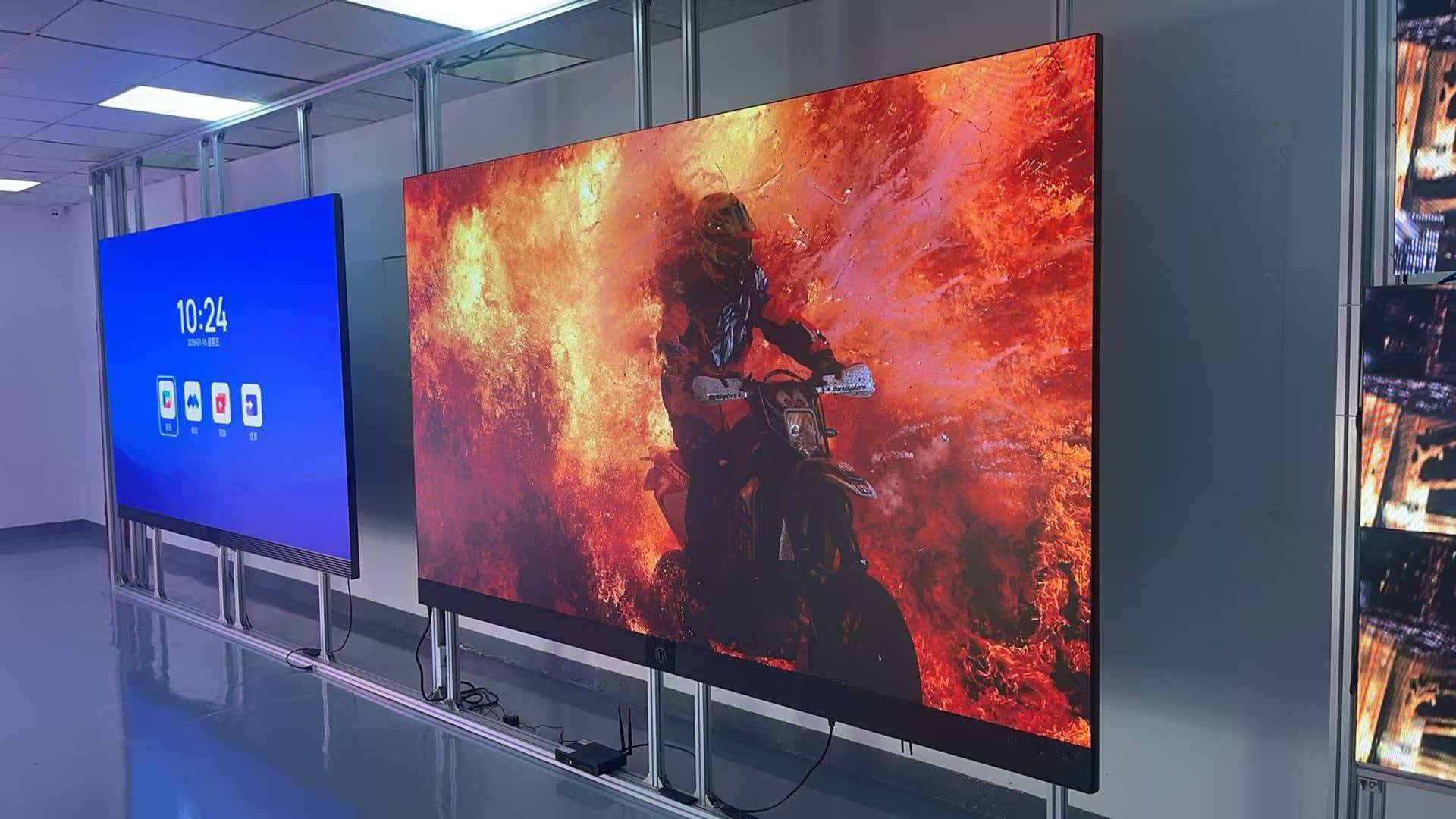

Real-World Image Display
